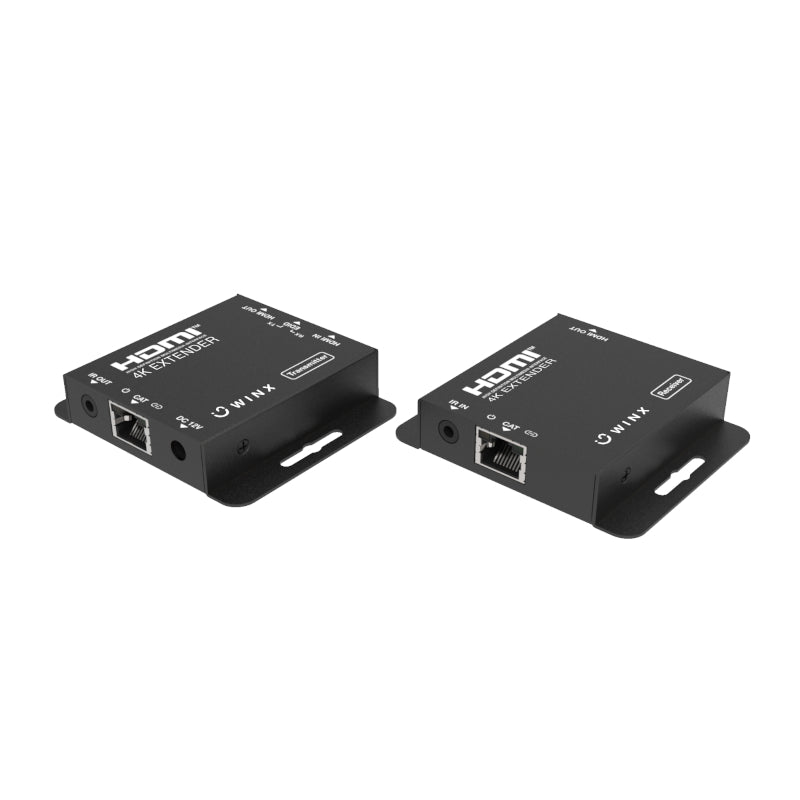

The WINX LINK FAR 4K HDMI Extender allows you to duplicate your viewing on a second display up to 70 metres away, whether a second TV, monitor or projector. Better yet, it's easy to install, with only a single power source required for both the transmitter and receiver, meaning no messy cabling or installers needed. In addition to this, the infrared(IR) remote control support allows you to control the connected device at either display. The high-quality build allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. Connected displays under 40 metres away can enjoy 4K (Ultra HD) or 1080P (Full HD) up to 70 metres. To top it all off, it also supports high-quality audio formats like PCM7.1, Dolby True HD and DTS HD.
*High-quality solid-core copper cable is required for the unit to function correctly
FEATURES:
- Duplicate HDMI signal (video + audio) on a second display up to 70m away, with HDMI loop out
- Control your remote devices via an infrared(IR) remote control
- Only a single power source required for both transmitter and receiver
- Easy to install with CAT5E/CAT6 copper cable
- Supports 4K(Ultra HD) up to 40m away, and 1080P(Full HD) up to 70m
SPECIFICATIONS:
- HDMI Compliance: HDMI 1.4
- HDCP Compliance: HDCP 1.4
- Video Bandwidth: 10.2Gbps
- Video Resolution:
- Up to 4K@30Hz (0 - 40m)
- 1080P (0 - 70m)
- Audio Support: Up to 7.1CH HD audio

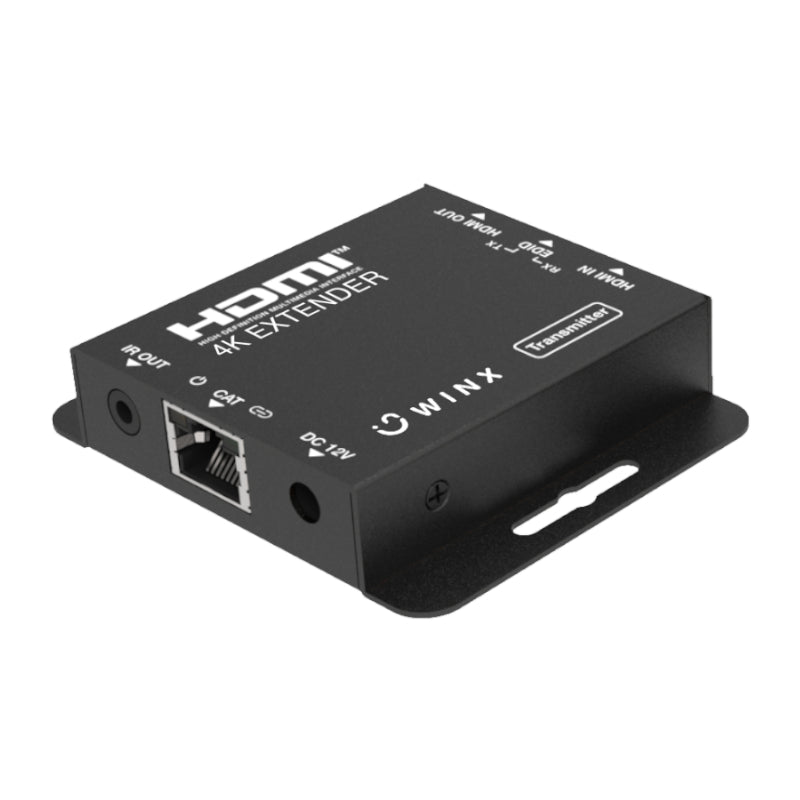

- Transmitter:
- Input:
- 1 x HDMI Type A [19-pin female]
- Output:
- 1 x HDMI Type A [19-pin female]
- 1 x IR OUT [3.5mm Stereo Mini-jack]
- 1 x CAT OUT [RJ45, 8-pin female]

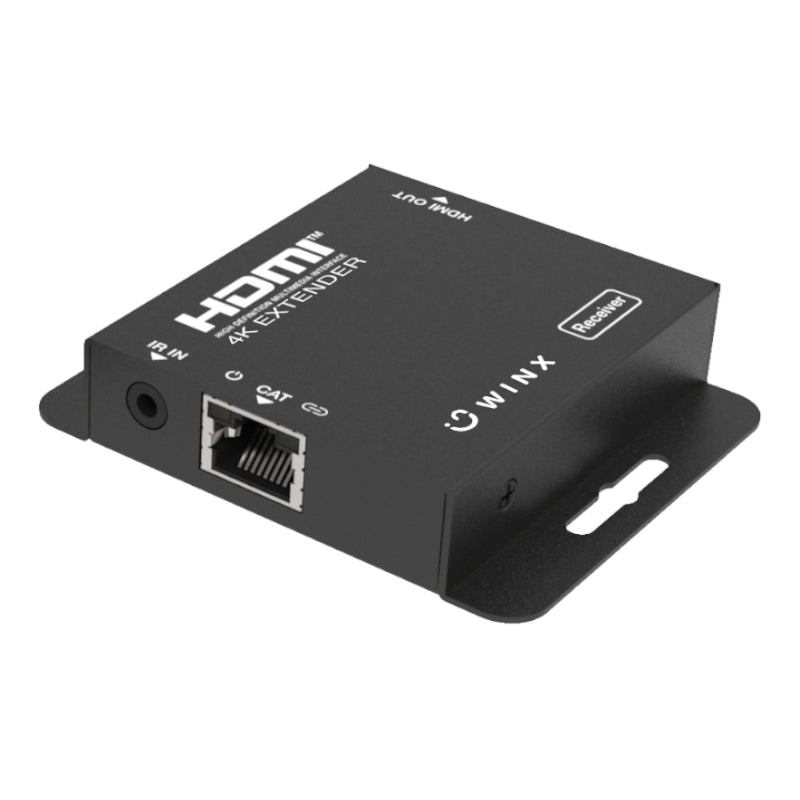

- Receiver:
- Inputs:
- 1x IR IN [3.5mm Stereo Mini-jack]
- 1x CAT IN [RJ45, 8-pin female]
- Output:
- 1x HDMI Type A [19-pin female]
- Housing: Metal Enclosure
- Colour: Black
- Power Supply 12V/1A DC
- Power Consumption
- Transmitter: 1.86W
- Receiver: 0.87W
- Product Dimensions: 7.9 x 6.9 x 1.7 cm
- Weight:
- Transmitter: 132g
- Receiver: 130g
WHAT’S IN THE BOX:
- Winx Link Far 4K HDMI 70M Extender Receiver x1
- Winx Link Far 4K HDMI 70M Extender Transmitter x1
- IR Blaster Cable x1
- IR Receiver Cable x1
- 12V/1A DC Power Adapter x1
- User Manual x1
- Length: 20.4 cm
- Width: 7.5 cm
- Height: 11.5 cm
- Weight: 0.513 kg
