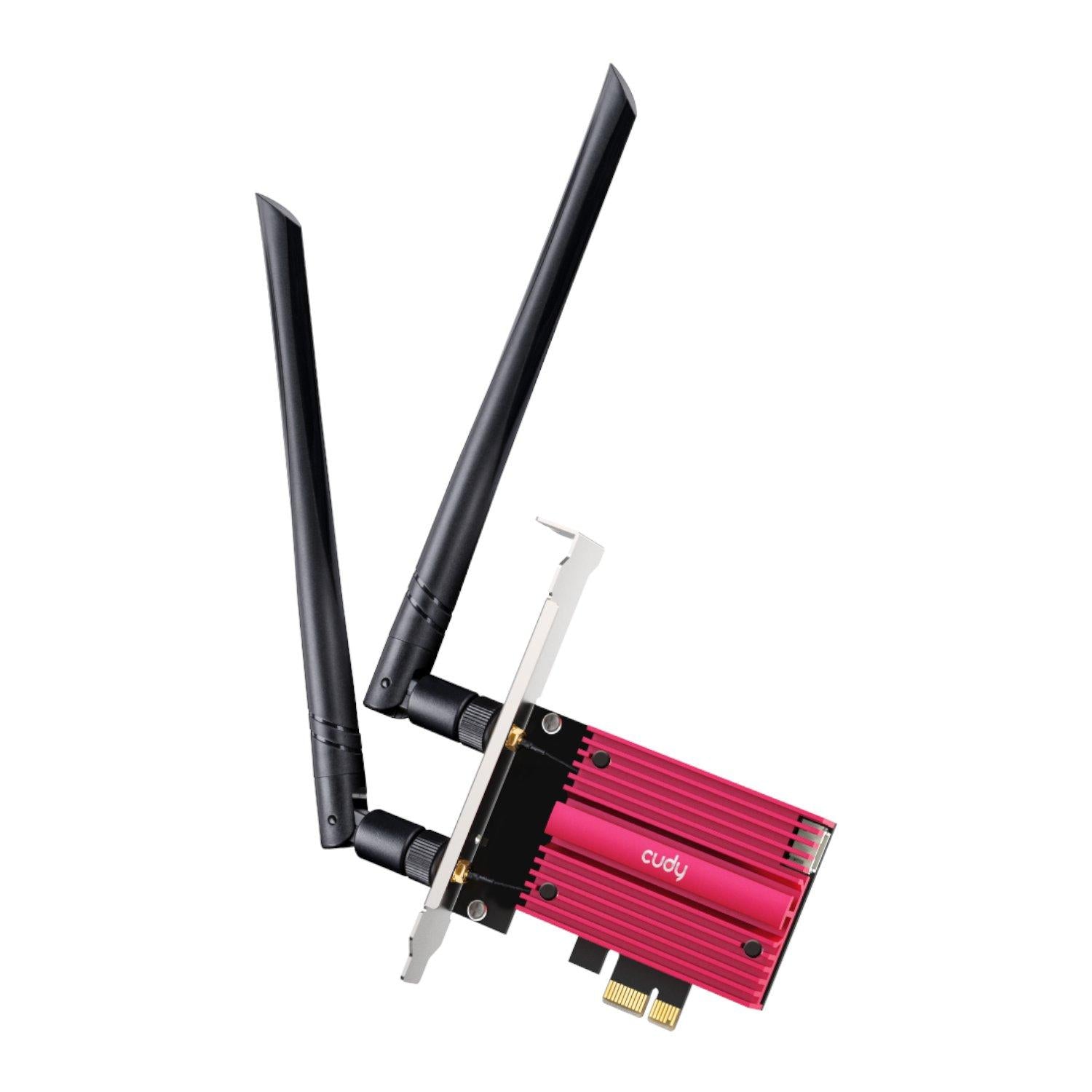

BE9300 TRI-BAND WI-FI 7 | BLUETOOTH

FEATURES:

• BE9300 Wi-Fi 7 support
• Bluetooth 5.4 support
• Tri-Band 2.4GHz/5GHz/6GHz
• PCIe interface
• Rotating adjustable dual antenna
• Mini ITX bracket included
• Works on Intel-Platform Windows 11 PC

SPECIFICATIONS:

• Chipset: Intel BE200
• Wireless:
  • 6GHz Wi-Fi Speed: 5760Mbps
  • 5GHz Wi-Fi Speed: 2882Mbps
  • 2.4GHz Wi-Fi Speed: 688Mbps
  • 6GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 5GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 2.4GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • Wi-Fi Antennas: 2× Detachable
  • 6GHz Antenna Gain Max: 5.32dBi
  • 5GHz Antenna Gain Max: 4.54dBi
  • 2.4GHz Antenna Gain Max: 3.09dBi
  • Detachable Wi-Fi Antennas Connector: RP-SMA Female
• Environment:
  • Ambient Operating Temperature: 0 ? ~ 70 ? (32 ? ~158 ?)
  • Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
• Hardware Requirement:
  • Requires a PCI-E 1x or higher standard slot on the motherboard for powering and the Wi-Fi function
  • Requires a USB 9-PIN slot on the motherboard for the Bluetooth function
• Compatible OS:
  • Windows 11 64-Bit
  • PC with Intel CPU
• Driver Installation:
  • Manual driver installation for Windows. Driver available in the Download Center.
• Product Dimensions: 7 x 4.5 x 2 cm
• Product Dimensions (Antenna): 1.5 x 1.5 x 22.1 cm
• Product Weight: 114.5g

WHAT’S IN THE BOX:

• Cudy BE9300 Tri-Band Wi-Fi 7 | Bluetooth 5.4 PCIe Adapter – Red x1
• Detachable Antennas x2
• Bluetooth to 9-PIN USB Cable x1
• Low-profile Mini-ITX Bracket x1
• Installation Guide x1
