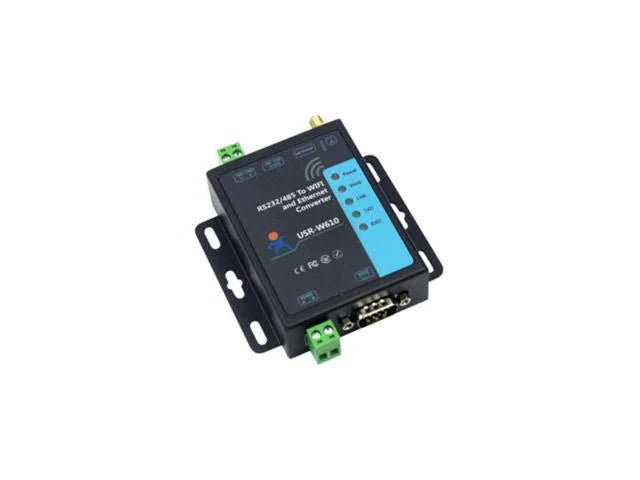

The USR-W610 is an industrial serial to WiFi converter, which can realize the bi-directional transparent data transmission between RS232/RS485, WiFi and Ethernet. Through simple configuration via Web Server or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by converter.
- 1-port RS-232 or RS485 to 802.11 b/g/n WLAN serial device server
- Links serial and Ethernet devices to an IEEE 802.11b/g/n network
- Supports TCP server/client, UDP server/client,https client, Virtual COM
- Supports Modbus RTU to Modbus TCP
- Supports multiple networking mode with 1 RJ45 ethernet port
| Categories |
Cellular & Network Communication |
| Manufacturer/Brand |
USR IOT |
| Wi-Fi Standard |
802.11b/g/n |
| Ethernet ports |
LAN/WAN |
| Ethernet Protocols |
10/100 Mbps |
| Frequency |
2.4Ghz |
| Serial Standard |
RS232, RS485 |
| Comm. Method |
Ethernet, Serial, WiFi |
| Comm. Protocol |
ARP, DHCP, DNS, HTTP, HTTPD Client, ICMP, IP, Modbus RTU, Modbus TCP, TCP, UDP, Web socket |
| Supply Voltage |
5-36 Vdc |
| Operating Temperature |
-40° to 85°C, -40° to 185°F |
| Width (in) |
3.25 |
| Depth (in) |
0.99 |
| Height (in) |
3.39 |
| Width (mm) |
82.50 |
| Depth (mm) |
25.00 |
| Height (mm) |
86.00 |
| Weight (kg) |
0.567 |
| Weight (lbs) |
1.25 |
| Safety Approvals |
FCC, RoHS |
| Safety Standards |
CE |
