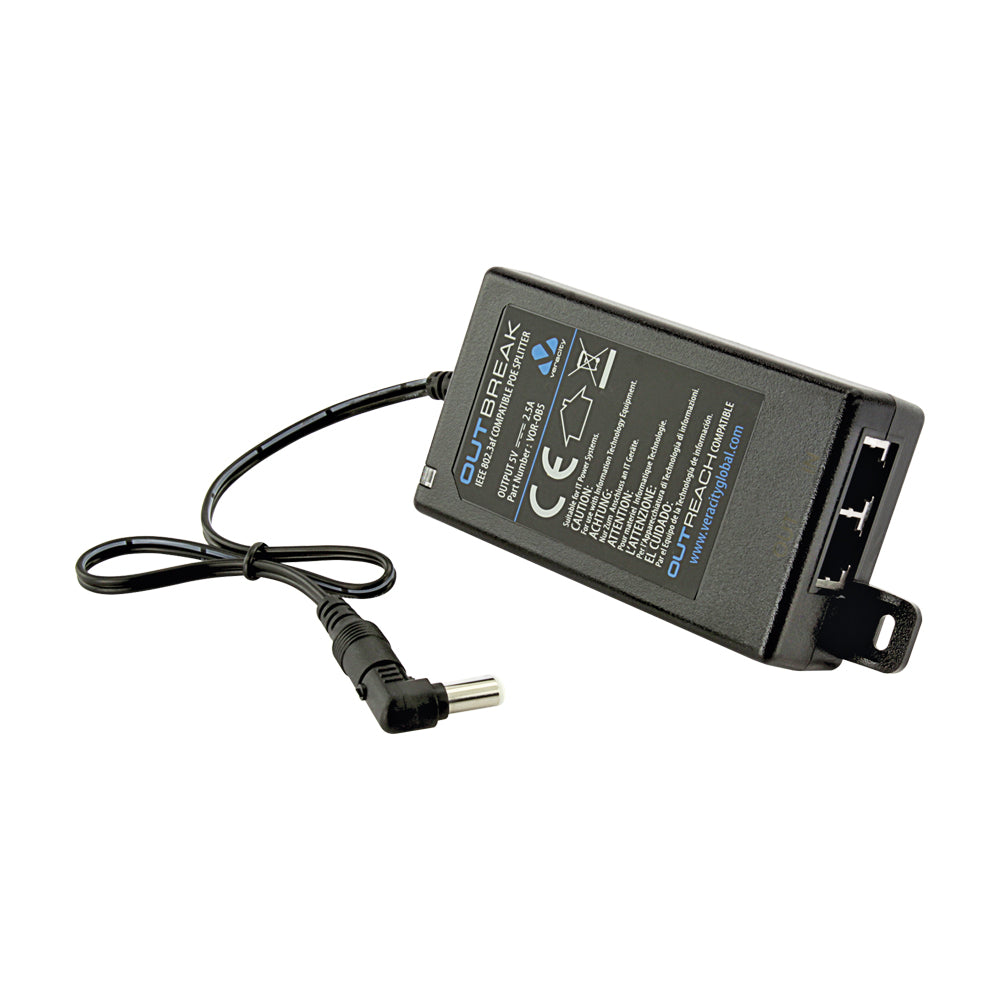

VERACITY VOR-OB5 OUTBREAK 5V POE SPLITTER

Features

• PoE to DC Power Conversion - Converts 48V PoE input to stable 5V DC output
• IEEE 802.3af Compliant - Fully compatible with standard PoE infrastructure
• Gigabit Ethernet Support - Compatible with 10/100/1000 Base-T networks
• Clean Power Delivery - Provides reliable power for sensitive network devices
• Data and Power Splitting - Separates Ethernet data and DC power output
• Compact Installation Design - Small form factor with integral wall-mount lugs
• Short-Circuit Protection - Added safety for connected devices

Specifications

• Input Voltage: 36V to 56V DC
• Input Current: 0.6A at 36V Maximum Load
• Output Power: 12.5W at 5V DC
• PoE Standard: IEEE 802.3af
• Ethernet Ports: RJ45 Data and PoE IN, RJ45 Data OUT
• Network Compatibility: 10/100/1000 Base-T
• DC Output Connector: Barrel Connector 9 × 2.5 × 5.5mm Centre Positive
• Status Indicator: Green LED Output Status
• Dimensions: 100 × 56 × 28mm
• Weight: 200g
• Mounting: Integral Wall-Mount Lugs
• Operating Temperature: 0~40°C
• Relative Humidity: 5~90% Non-Condensing
• Compliance: CE, FCC, RoHS, UKCA

Shipping Dimensions

• Weight: 0.30 kg
