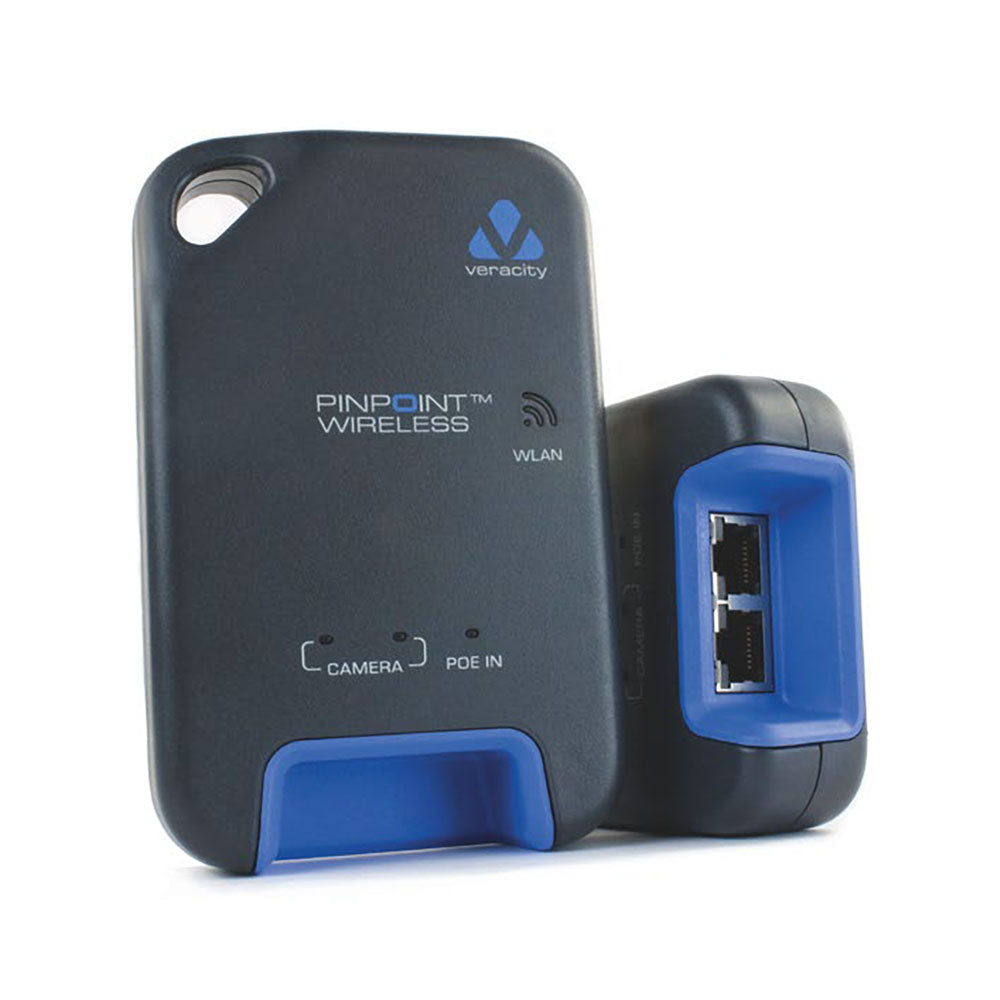

VERACITY VAD-PPW PINPOINT WIRELESS ADAPTER TOOL FOR IP CAMERA INSTALLATION

Features

• Local Camera Viewing - View live IP camera images on a smartphone, tablet or laptop directly at the installation location
• Precise Camera Adjustment - Quickly fine-tune lens focus and viewing angles for accurate camera positioning
• PoE Powered - Uses Power over Ethernet from the network, eliminating the need for a local power source
• Faster Installation - Speeds up installation and improves efficiency while reducing time spent on site
• Compact with Status LEDs - Neat, portable design with front status LEDs for clear operational feedback
• Quick Install and Removal - Installs in seconds and disconnects just as quickly for convenient use during setup

Specifications

Power

• Type: Device is Powered via Passthrough PoE
• Consumption: <2W in Normal Use

Network

Wired Network Interface

• PoE-In Port: PoE Only – No Data Connection
• PoE-Out Port: 10Base-T / 100Base-TX

Ip Setting

• Automatic or Manual Configuration of IP Address (IPv4)

Wireless Network Interface

• IEEE 802.11b/g/n/ac
• 2.4GHz b/g/n (Default) – Channels 1, 6 or 11
• 5.0GHz a/ac/n – Channels 36, 40 or 44

Wireless Ssid

• User Configurable

Wireless Security

• WPA2-PSK with User Configurable Password

Led Indicators And Connectors

PoE STATUS INDICATOR

• Red LED Indicates ON
• Flash Indicates Error
• Off Indicates No PoE

NETWORK PORT LEDs

• Green: Link Speed
• Orange: Network Activity

Wireless Indicator

• Blue: Wireless Link ON
• Flash Indicates Booting Up

Network Connectors

• 2× RJ45
• PoE In
• PoE Out (To Camera)

Compatibility

Camera Discovery

• Automatic Camera Discovery Using Bonjour or WS-Discovery (ONVIF)

Supported Ip Cameras

• All IP Cameras Supporting Live Viewing via Browser on Smart Device or with RTSP URL Address

Physical / Environmental

Enclosure Type

• High Impact ABS

Lanyard

• Hooks onto PINPOINT Wireless with Carabiner – Safety Breakaway Clasps

Dimensions (L × W × H)

• 128 × 82 × 28mm

Weight

• 128g

Operating Temperature

• 10~70°C

Relative Humidity

• up to 85%, Non-Condensing

Compliance

• EN 55032 Class A
• FCC Part 15 Subpart B Class A
• IEC/EN/UL 60950-1
• CE
• UKCA
• RoHS
• REACH
• WEEE

Shipping Dimensions

• Length: 18 cm
• Width: 13 cm
• Height: 8 cm
• Weight: 0.30 kg
