Veracity POE Splitter For IP Cameras and Other Devices

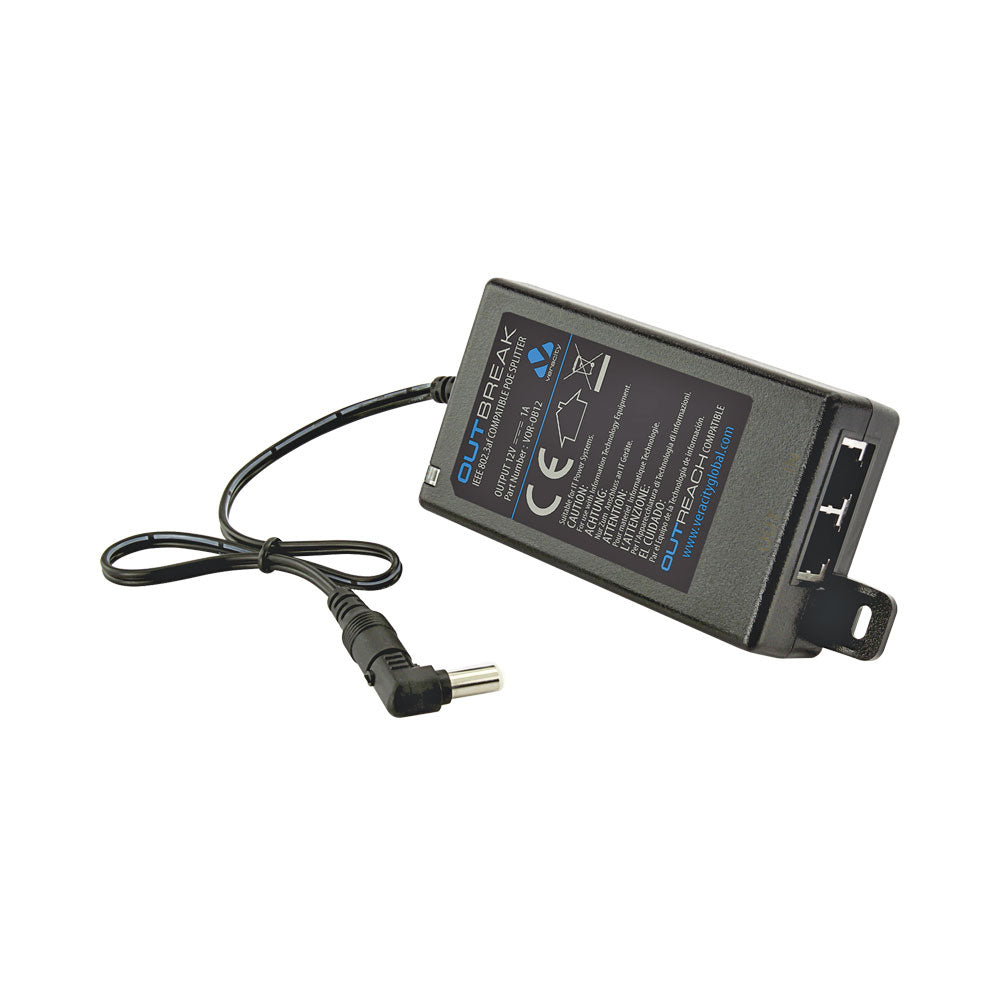

Veracity's OUTBREAK lets you upgrade network equipment such as IP cameras to be fully POE compatible.
Simply connect OUTBREAK in line with the IP camera's network connection, and wire its DC output to the camera's power input. The camera can then connect to the network while OUTBREAK converts Power over Ethernet to the lower-voltage supply it requires.
Applications:
OUTBREAK can be used to upgrade any low-power network (or non-network) device to POE compatibility, including:
- IP Surveillance Cameras
- Access Control Panels
- Wireless Access Points (Wifi, Bluetooth etc)
- VoIP Telephones
| SPECIFICTATIONS |
| Network Compatibility |
10/100/1000BASE-T |
| POE Compatibility |
IEEE 802.3af class 0 device |
| Power Output |
5VDC, 2.2A |
| Connectors |
RJ45 - Network
RJ45 - Network / POE in
2.5mm - DC power out
|
| Dimensions |
100 x 56 x 28mm (excl tabs)
DC cable is 305mm long |
