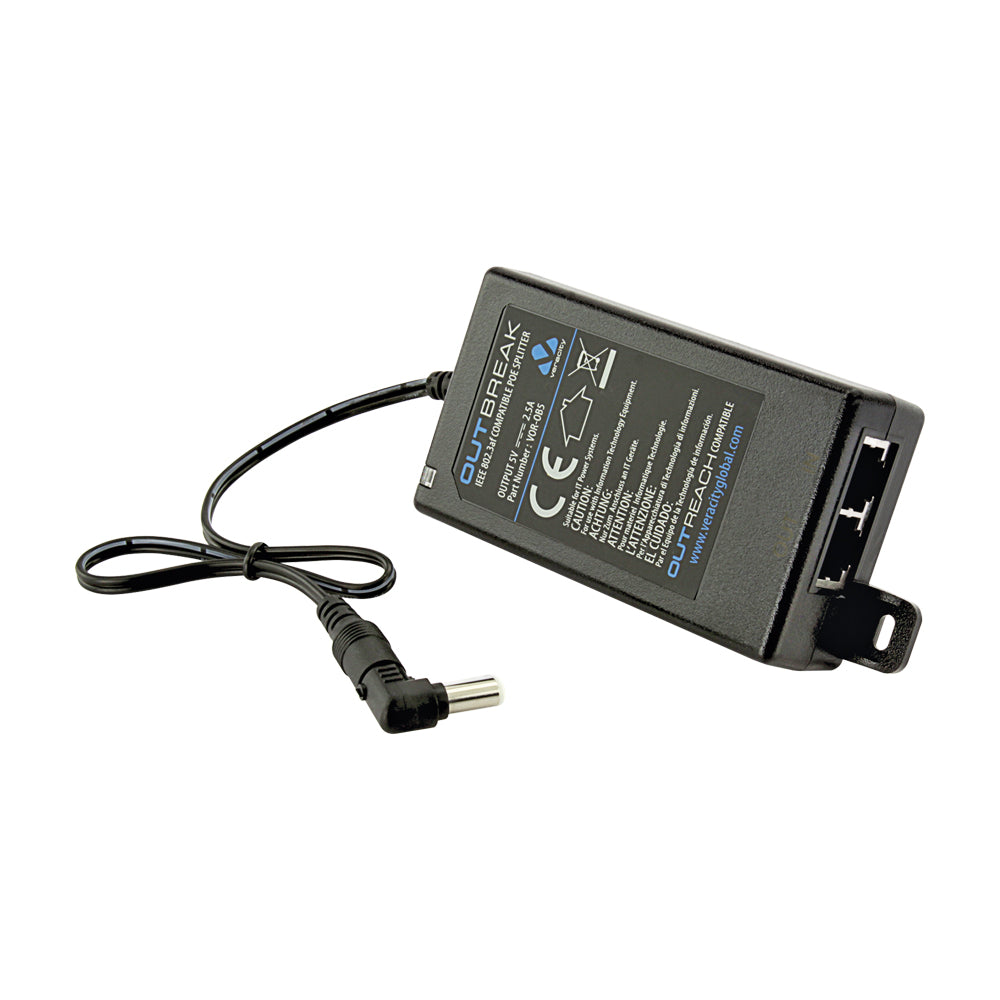

Veracity VOR-OB5 OUTBREAK 5V PoE Splitter
Power Non-PoE Devices Directly from Your PoE Network Infrastructure.
The Veracity VOR-OB5 OUTBREAK 5V PoE Splitter provides a simple and efficient way to power non-PoE devices using a standard PoE network connection. Designed for professional IP and networking installations, this compact splitter converts 48V PoE input into stable 5V DC output while simultaneously delivering Ethernet data connectivity. Fully IEEE 802.3af compliant and Gigabit compatible, the OUTBREAK 5V is ideal for wireless access points, IP phones, IP cameras and other low-voltage network devices. Its compact housing with integrated wall-mount lugs allows for clean and flexible installations in commercial and security environments.
Features
- PoE to DC Power Conversion - Converts 48V PoE input to stable 5V DC output
- IEEE 802.3af Compliant - Fully compatible with standard PoE infrastructure
- Gigabit Ethernet Support - Compatible with 10/100/1000 Base-T networks
- Clean Power Delivery - Provides reliable power for sensitive network devices
- Data and Power Splitting - Separates Ethernet data and DC power output
- Compact Installation Design - Small form factor with integral wall-mount lugs
- Short-Circuit Protection - Added safety for connected devices
Specifications
- Input Voltage: 36V to 56V DC
- Input Current: 0.6A at 36V Maximum Load
- Output Power: 12.5W at 5V DC
- PoE Standard: IEEE 802.3af
- Ethernet Ports: RJ45 Data and PoE IN, RJ45 Data OUT
- Network Compatibility: 10/100/1000 Base-T
- DC Output Connector: Barrel Connector 9 × 2.5 × 5.5mm Centre Positive
- Status Indicator: Green LED Output Status
- Dimensions: 100 × 56 × 28mm
- Weight: 200g
- Mounting: Integral Wall-Mount Lugs
- Operating Temperature: 0~40°C
- Relative Humidity: 5~90% Non-Condensing
- Compliance: CE, FCC, RoHS, UKCA
