Veracity VLS-1P-B LONGSPAN PoE Base Unit
Long-Range Ethernet and PoE from the Network Side

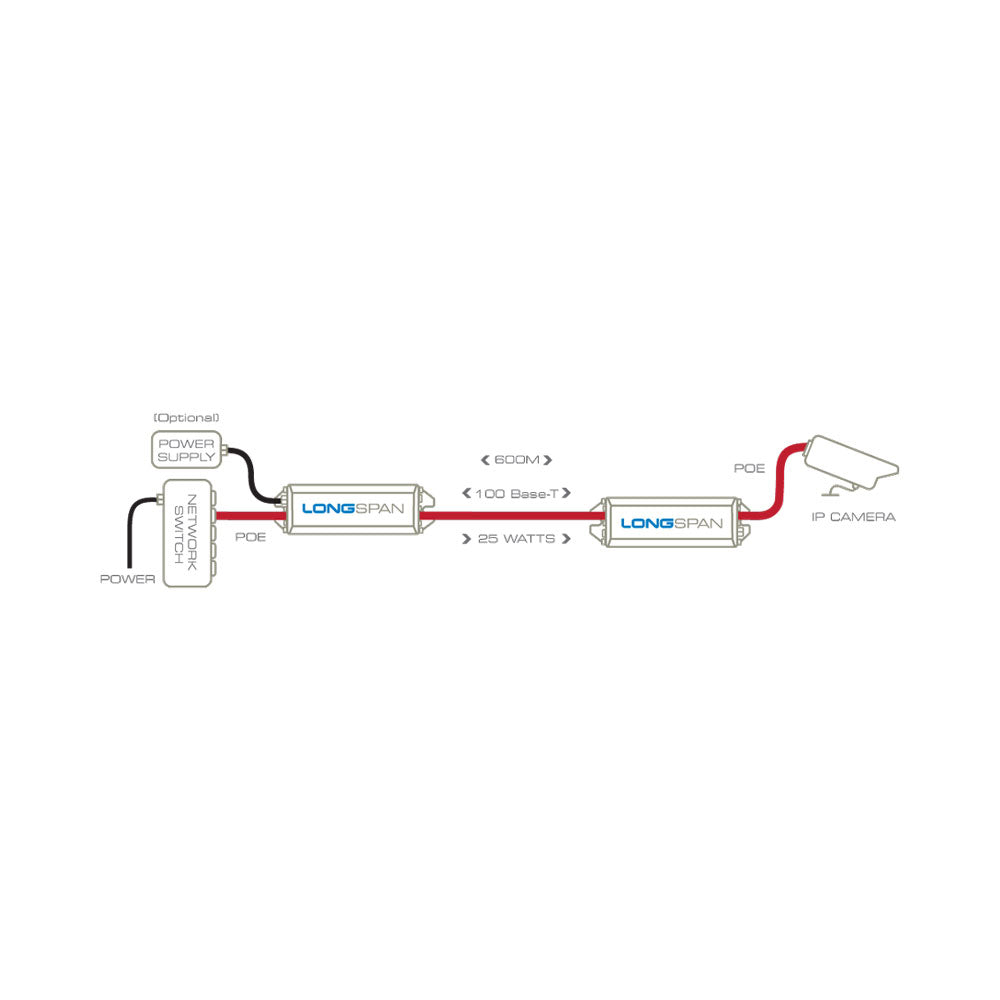

The Veracity VLS-1P-B LONGSPAN Base Unit delivers full-speed Ethernet and PoE over exceptionally long distances using standard CAT5e or CAT6 cable. Designed for the network side of the link, it works with the LONGSPAN camera unit to provide reliable IP connectivity and power to cameras far beyond normal Ethernet limits.
Features
- Long-Range Ethernet Extension - Delivers 100Base-TX Ethernet over distances up to 820m on standard network cable
- PoE and PoE+ Support - Supplies up to 25W PoE power to remote devices through the LONGSPAN link
- Works with Standard CAT5e/CAT6 Cable - Uses existing infrastructure to extend network connectivity
- Automatic Configuration - No setup, switches or pairing required for installation
- SAFEVIEW Diagnostic LEDs - Provides clear visual status and power information during installation
- Designed for Professional CCTV Systems - Ideal for extending IP camera connections over extreme distances
Specifications
Power
- Device Power: 1W
- PoE In (Base): IEEE 802.3af (PoE) or IEEE 802.3at (PoE+), 2-event, Power Class 4
- DC Power Input: Detachable Screw Terminal for Optional Veracity 54~57V Supply
Longspan Interface
- Connector: RJ45
- Cable: CAT6, CAT5e, CAT3 or Other 1/2/4-Pair UTP
- Wiring: Patch Wiring Recommended, Other Wiring Auto-Corrected
- Rate: 200Mbps (100Mbps Full-Duplex) up to 820m (CAT6)
- Rate: 20Mbps (10Mbps Full-Duplex) up to 1050m (CAT6), Auto-Adapts
Ethernet Interface
- Connector: RJ45
- Cable: Patch or Crossover, Auto-Detected
- Rate: 100Base-TX or 10Base-T, Full-Duplex with Auto-Negotiation
Led Indicators
- Ethernet RJ45: Yellow - Link/Activity, Green - Power Good
- LONGSPAN Link RJ45: Yellow - Link/Activity, Green - 10/100Mbps
- PoE: Power Available (5/10/15/20/25W)
- PoE and Link Status: Green/Amber, Diagnostic Codes (Red)
Physical / Environmental
- Dimensions: 120 × 36 × 23mm (Including Brackets)
- Weight: 100g
- Operating Temperature: -40~70°C
- Relative Humidity: up to 85% Non-Condensing
- Compliance: FCC, CE, RoHS, UL, UKCA, BS EN 50121-4 (Rail + Metro)
