VERACITY VAD-PPW PINPOINT WIRELESS ADAPTER TOOL FOR IP CAMERA INSTALLATION

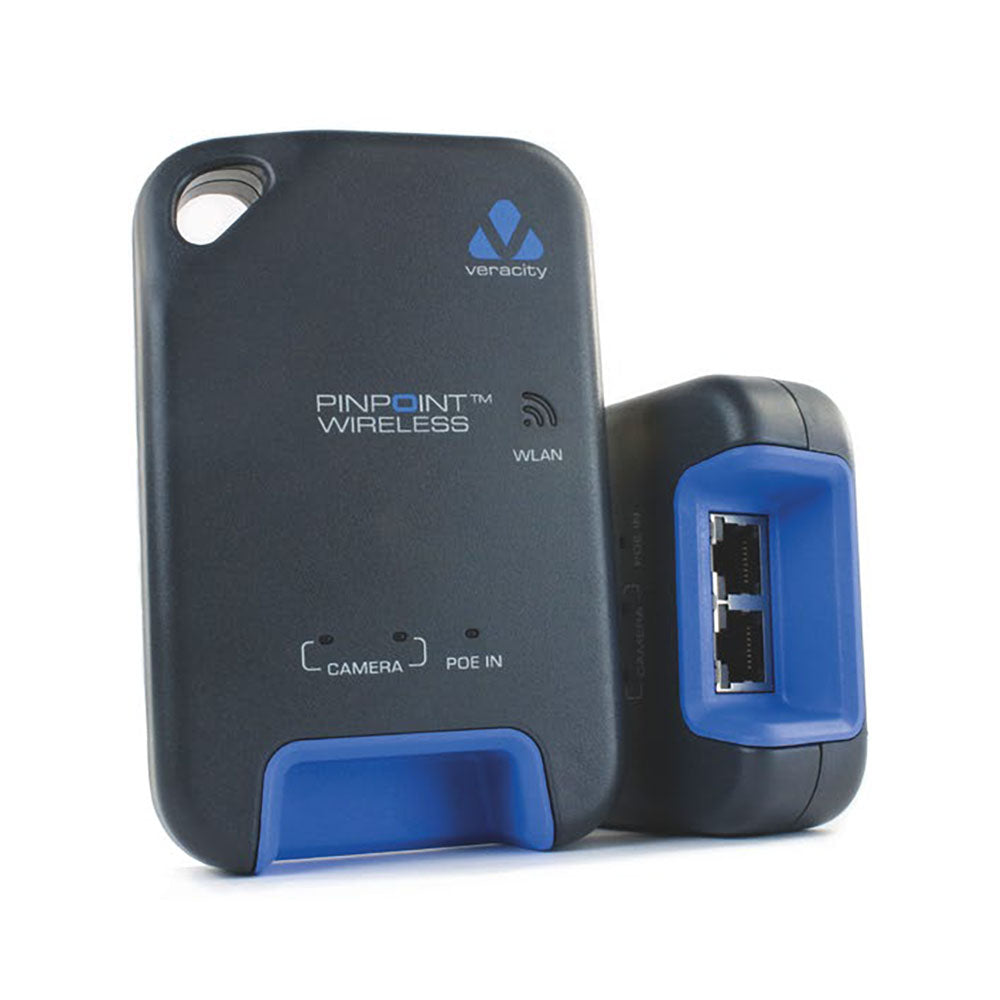

Veracity VAD-PPW PINPOINT Wireless Adapter Tool for IP Camera Installation

Simplify IP Camera Installation with Precision and Speed.

The Veracity VAD-PPW Pinpoint Wireless Adapter Tool makes installing IP cameras faster and easier by enabling direct wireless access to the camera during setup. Designed for installers, it allows quick configuration, alignment and testing without needing full network access, saving time and simplifying on-site deployments.

Features

• Local Camera Viewing - View live IP camera images on a smartphone, tablet or laptop directly at the installation location
• Precise Camera Adjustment - Quickly fine-tune lens focus and viewing angles for accurate camera positioning
• PoE Powered - Uses Power over Ethernet from the network, eliminating the need for a local power source
• Faster Installation - Speeds up installation and improves efficiency while reducing time spent on site
• Compact with Status LEDs - Neat, portable design with front status LEDs for clear operational feedback
• Quick Install and Removal - Installs in seconds and disconnects just as quickly for convenient use during setup

Specifications

Power

• Type: Device is Powered via Passthrough PoE
• Consumption: <2W in Normal Use

Network

Wired Network Interface

• PoE-In Port: PoE Only – No Data Connection
• PoE-Out Port: 10Base-T / 100Base-TX

Ip Setting

• Automatic or Manual Configuration of IP Address (IPv4)

Wireless Network Interface

• IEEE 802.11b/g/n/ac
• 2.4GHz b/g/n (Default) – Channels 1, 6 or 11
• 5.0GHz a/ac/n – Channels 36, 40 or 44

Wireless Ssid

• User Configurable

Wireless Security

• WPA2-PSK with User Configurable Password

Led Indicators And Connectors

PoE STATUS INDICATOR

• Red LED Indicates ON
• Flash Indicates Error
• Off Indicates No PoE

NETWORK PORT LEDs

• Green: Link Speed
• Orange: Network Activity

Wireless Indicator

• Blue: Wireless Link ON
• Flash Indicates Booting Up

Network Connectors

• 2× RJ45
• PoE In
• PoE Out (To Camera)

Compatibility

Camera Discovery

• Automatic Camera Discovery Using Bonjour or WS-Discovery (ONVIF)

Supported Ip Cameras

• All IP Cameras Supporting Live Viewing via Browser on Smart Device or with RTSP URL Address

Physical / Environmental

Enclosure Type

• High Impact ABS

Lanyard

• Hooks onto PINPOINT Wireless with Carabiner – Safety Breakaway Clasps

Dimensions (L × W × H)

• 128 × 82 × 28mm

Weight

• 128g

Operating Temperature

• 10~70°C

Relative Humidity

• up to 85%, Non-Condensing

Compliance

• EN 55032 Class A
• FCC Part 15 Subpart B Class A
• IEC/EN/UL 60950-1
• CE
• UKCA
• RoHS
• REACH
• WEEE
