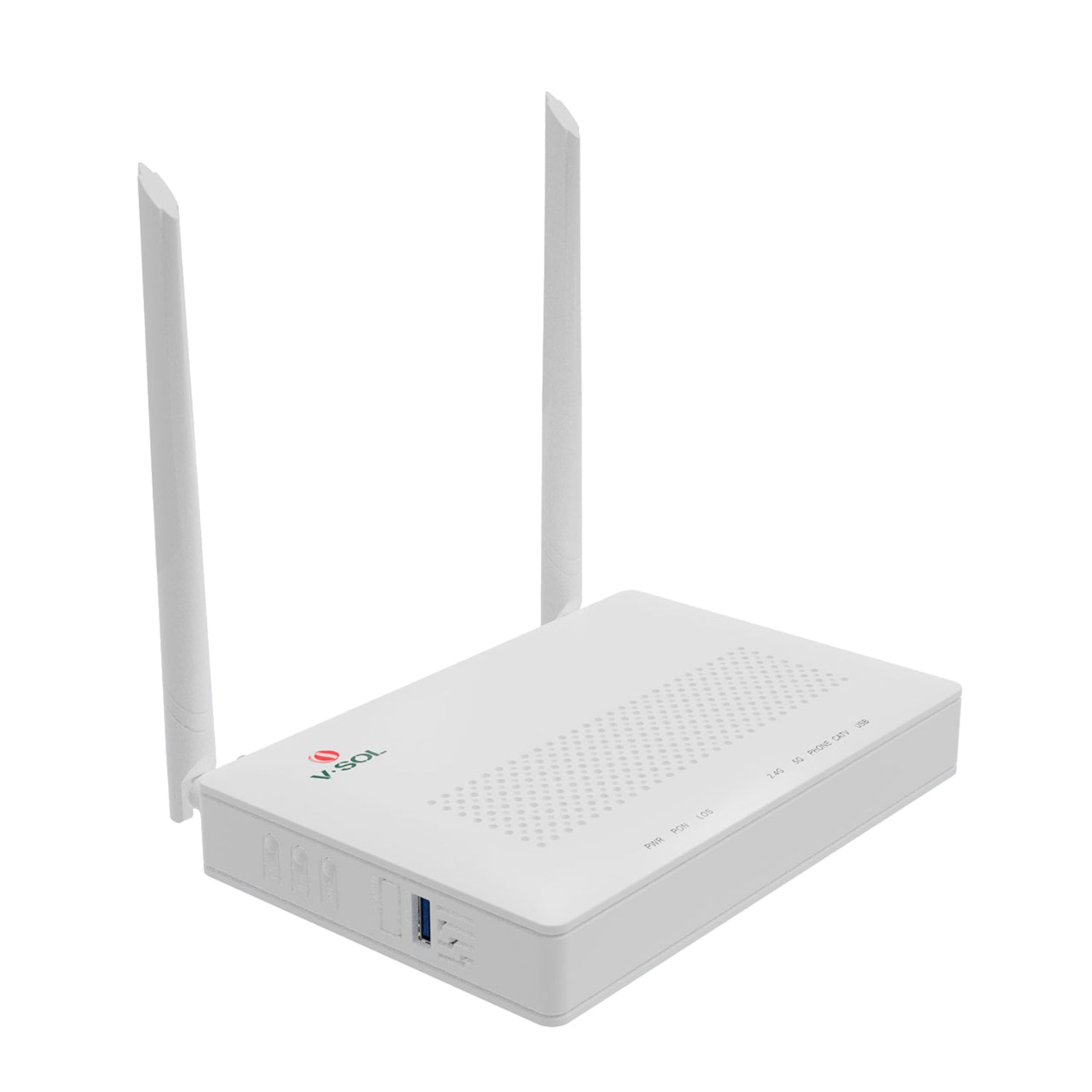

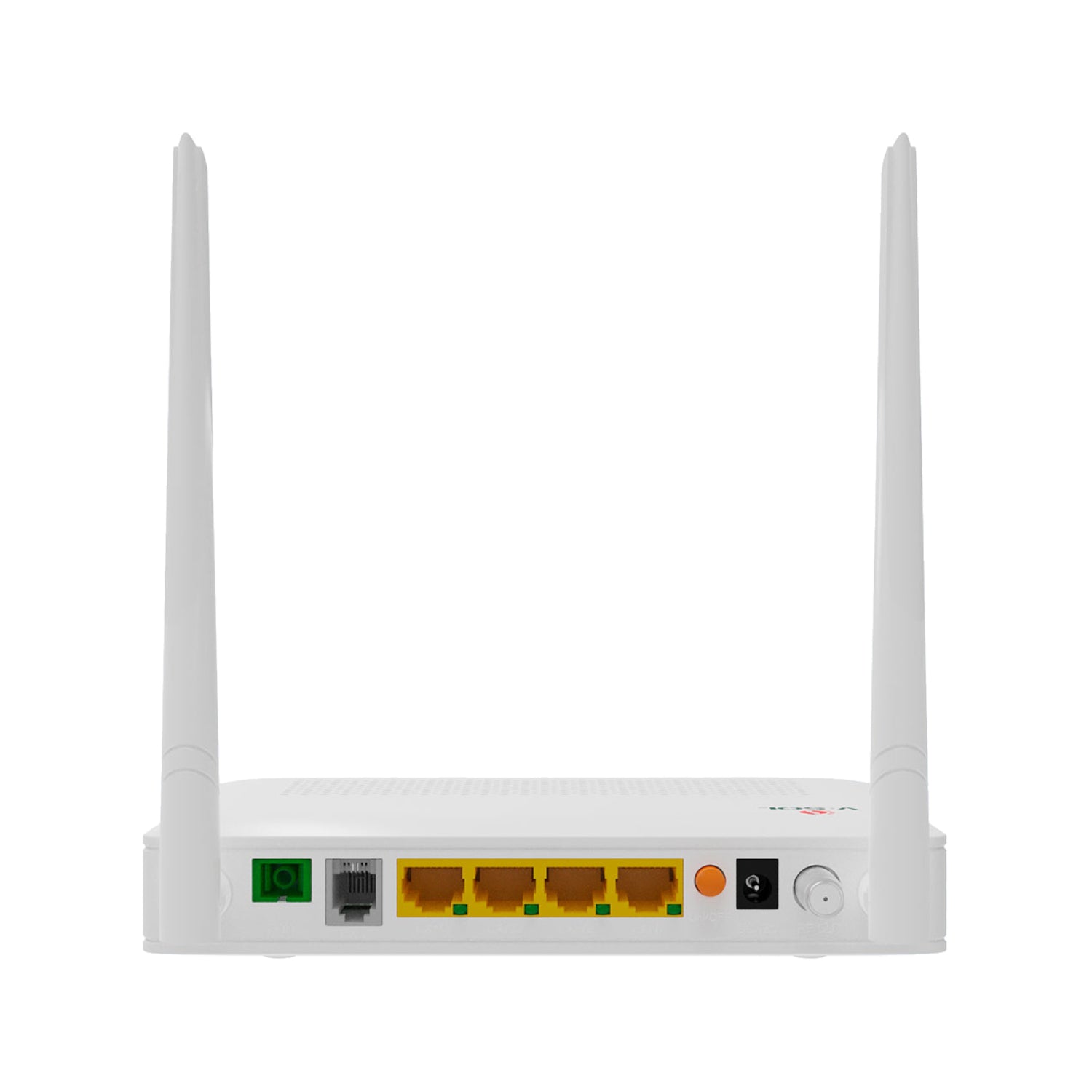

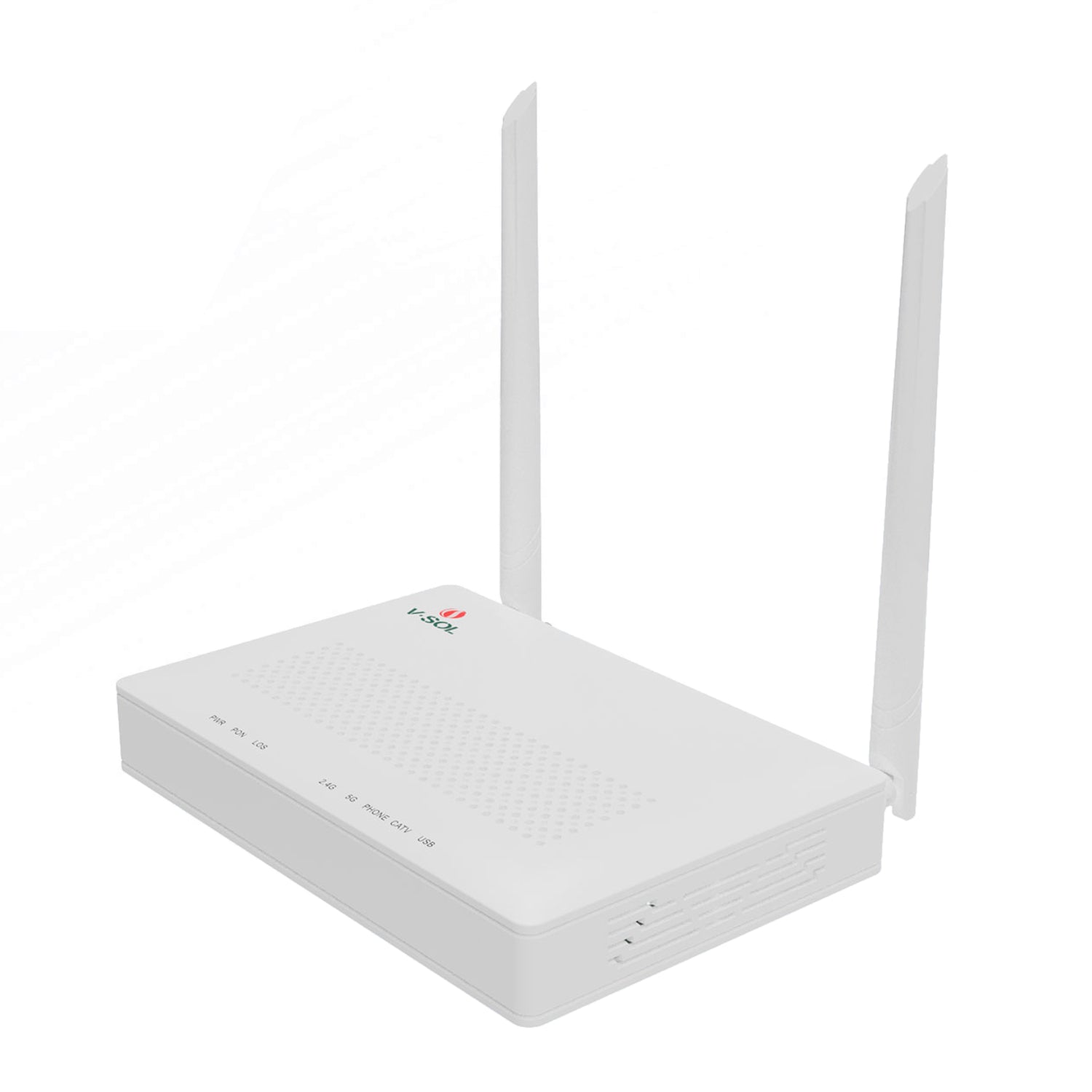

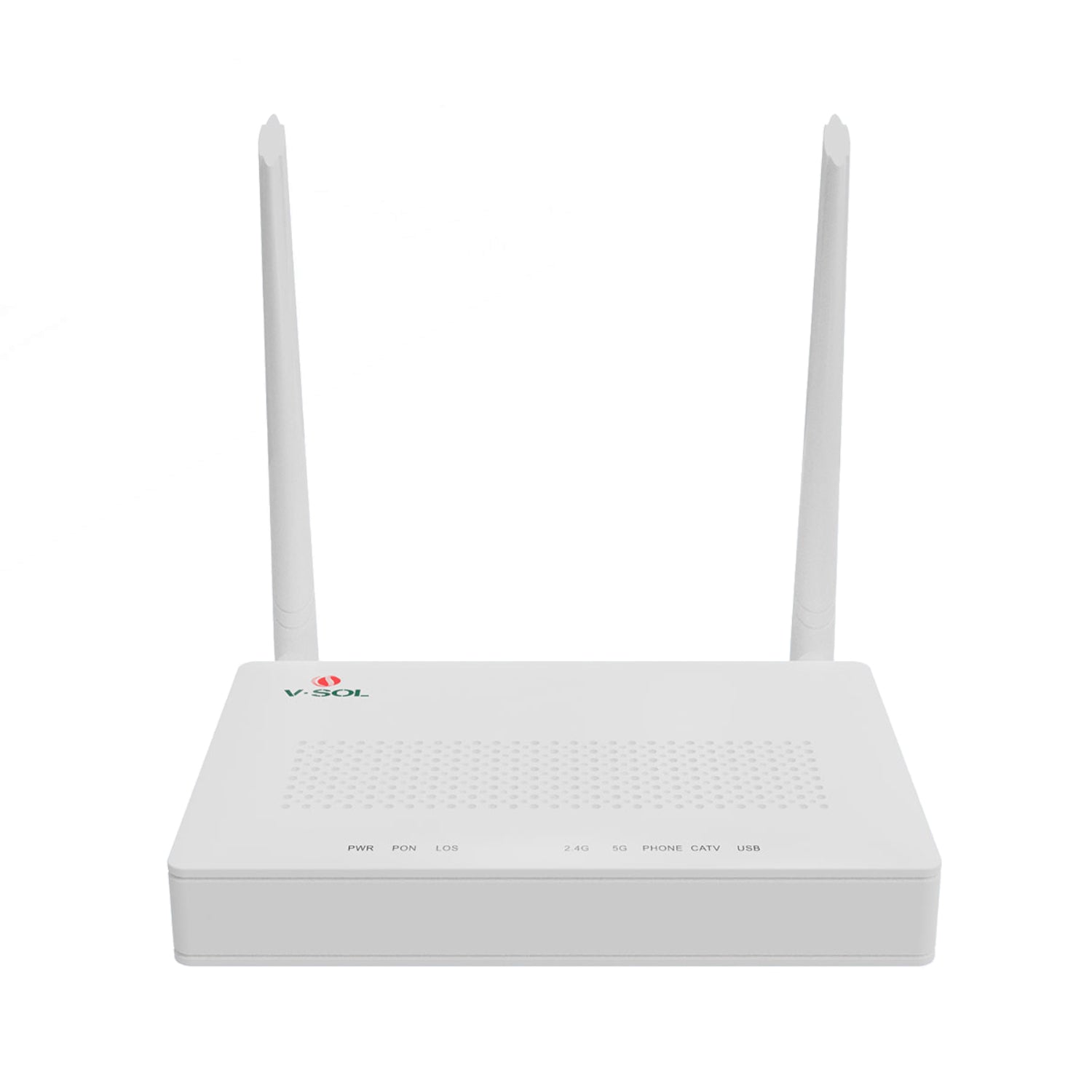

V-Sol 1XPON+4GE+1POTS+CATV+USB 3.0+Wi-Fi 5 HGU ONT

Experience seamless connectivity with 1167Mbps dual-band Wi-Fi 5, robust 4xGE ports, and crystal-clear POTS voice, all powered by V-Sol's reliable fibre technology.

Quick Specs

• Achieve lightning-fast internet speeds of up to 1.167Gbps with dual-band Wi-Fi 5.
• Connect multiple devices simultaneously with four Gigabit Ethernet ports.
• Enjoy clear, reliable voice calls with the integrated POTS connection.
• Benefit from V-Sol's trusted technology, designed for robust and stable network performance.
• Utilise the convenient USB 3.0 port for enhanced functionality and data access.

Unleash the full potential of your fibre connection with the V-Sol HG325AC-A HGU ONT router

Designed for the discerning South African household or business, this V-Sol gigabit ethernet router is the central nervous system of your digital life. It seamlessly bridges your fibre optic network to your home or office, ensuring that every connected device receives the stable, high-speed internet it demands. For families, this means smooth streaming of high-definition content, lag-free online gaming, and effortless video conferencing for remote work or education. For businesses, it translates to reliable operations, efficient data transfer, and uninterrupted communication, making it an indispensable tool for modern connectivity. The V-Sol HG325AC-A is not just a router; it is the foundation of a connected future.

Engineered for superior speed and stability

At its core, the V-Sol HG325AC-A is built upon advanced PON technology, capable of delivering data over an impressive 20km transmission distance. Its dual-band Wi-Fi 5 capability ensures that you can harness speeds of up to 1.167Gbps across both 2.4GHz and 5.8GHz bands, effectively reducing congestion and maximising performance for all your wireless devices. This high speed home router is engineered to handle the demands of high-bandwidth activities, ensuring a consistent and dependable connection for everyone, everywhere in your home or office.

Seamless integration for all your devices

The V-Sol HG325AC-A goes beyond basic routing. It features four Gigabit Ethernet ports, providing wired connections with exceptional speed and stability for your most critical devices, such as desktop computers, gaming consoles, or network-attached storage. Complementing this is a POTS (Plain Old Telephone Service) port, allowing you to retain your existing landline service over the fibre network, ensuring you don't miss important calls. The optional CATV port further enhances its versatility, consolidating multiple services into one powerful device, simplifying your setup and reducing clutter. It is the all-in-one solution designed for comprehensive connectivity.

Reliability you can count on

Constructed with robust components and adhering to strict operating parameters, the V-Sol HG325AC-A is built to last. It operates reliably within a wide temperature range of -10°C to +55°C and humidity levels of 5% to 95% (non-condensing), ensuring consistent performance even in challenging South African conditions. This fibre router is designed for efficiency, with a total power consumption of ≤12W, making it an energy-conscious choice for your network infrastructure. Trust in V-Sol for a stable and enduring connection.

Future-ready features for enhanced functionality

The inclusion of a USB 3.0 port elevates the functionality of this HGU ONT beyond simple internet access. This port can be used for network-attached storage (NAS) capabilities, media sharing, or device backups, providing added convenience and versatility for your home or office network. With support for multiple SSIDs, you can create separate networks for guests or specific device types, enhancing security and network management. The V-Sol HG325AC-A is not just about current needs; it is a forward-thinking solution designed to grow with your digital requirements.

FEATURES:

• Achieve maximum throughput with dual-band Wi-Fi 5, delivering up to 1.167Gbps for smooth streaming and fast downloads.
• Establish stable, high-speed wired connections for up to four devices using the integrated Gigabit Ethernet ports.
• Maintain your landline service with the included POTS port, ensuring reliable voice communication.
• Enhance your network with the versatile USB 3.0 port, enabling features like network storage or media sharing.
• Simplify your home or office setup by consolidating multiple services with the optional CATV port.
• Secure your network with WPA-PSK (TKIP) and WPA2-PSK (AES) encryption, protecting your data from unauthorised access.
• Experience extended network reach and stability over fibre optic cables for up to 20 kilometres.

SPECIFICATIONS:

• PON interface:
  • 1XPON port (EPON PX20+ & GPON Class B+)
  • SC single mode, SC/APC connector
  • TX optical power: 0～+4dBm
  • RX sensitivity: -27dBm
  • Overload optical power: -3dBm (EPON) or -8dBm (GPON)
  • Transmission distance: 20KM
  • Wavelength: TX 1310nm, RX1490nm
• User interface:
  • 4*GE, Auto-negotiation, RJ45 ports
  • 1 POTS RJ11 Connector
  • 1*USB 3.0
• WLAN interface:
  • Compliant with IEEE802.11b/g/n/ac
  • Wi-Fi:2.4GHz, 5.8GHz 2×2, 3dBi antenna, rate up to 1.167Gbps, Multiple SSID
  • TX power: 2.4GHz: 18dBm; 5GHz: 17dBm
  • RX power: 2.4GHz: HT40-MCS7 -71dBm; 5GHz: VHT80 MCS9 <-63dBm
• CATV interface
  • Optical receiving wavelength: 1550±10nm
  • Optical input range: +2～-18dBm
  • Optical reflection loss: ≥40dB
  • RF frequency range: 47～1000MHz
  • RF output impedance: 75Ω
  • RF output level and AGC range:
  • ≥81±2dBuv@+1～-10dBm
  • ≥79±2dBuv@ 0～-11dBm
  • ≥77±2dBuv@-1～-12dBm
  • ≥75±2dBuv@-2～-13dBm
  • ≥73±2dBuv@-3～-14dBm
  • ≥71±2dBuv@-4～-15dBm
  • MER: ≥32dB (-14dBm optical input)
• O&M:
  • OAM/OMCI, Telnet, WEB, TR069
  • Support full management of HGU functions by VSOL OLT
• Multicast:
  • IGMP v1/v2/v3, IGMP snooping
  • IGMP Proxy
  • MLD v1/v2 snooping
  • MLD Proxy
• Wireless:
  • Integrated 802.11b/g/n/ac
  • Authentication: WAP-PSK(TKIP)/ WAP2-PSK(AES)
  • Support Multiple SSID
  • Support hidden SSID
  • Support Mesh
  • Supports up to 64 maximum device connections
• QoS:
  • Support 4 queues
  • Support SP, WRR, 802.1P and DSCP
• L2:
  • Support 802.1D&802.1ad bridge, 802.1Q VLAN
• VoIP:
  • SIP and IMS SIP
  • l G.711a/G.711u/G.722/G.729 Codec
  • l Echo cancellation, VAD/CNG, DTMF Relay
  • l Caller Identification/Call Waiting/Call
  • l Forwarding/Call Transfer/Call Hold/3-way Conference
•  L3:
  • IPv4, IPv6 and IPv4/IPv6 dual stack
  • DHCP/PPPOE/Static
  • Static route, DHCP Server
  • NAT/DMZ/DDNS/Virtual Server
• Security:
  • Support Firewall
  • Support Mac filter Based on MAC or URL
  • Support ACL
  • Support Loop detection
• System Function:
  • Support NTP (Network Time Protocol)
  • Support Scheduled device restart
  • Support Ping and Traceroute diagnosis
• Operating condition:
  • Operating temp: -10 ~ +55°C
  • Operating humidity: 5 ~ 95% (non-condensing)
• Storing condition:
  • Storing temp: -40 ~ +70°C
  • Storing humidity: 5 ~ 95% (non-condensing)
• Power adapter: DC12V, 1.5A, external AC-DC power adaptor
• Power supply: ≤12W
• Interface: 4GE+1POTS+Wi-Fi 5+USB 3.0+CATV(optional)
• Indicators: PWR, LOS, PON, 2.4G, 5G, WAN, WPS, USB, Phone, LAN1～4, CATV(optional)
• Product Dimensions: 18 x 12 x 3.2 cm
• Product Weight: 280g

WHAT'S IN THE BOX:

• V-Sol 1XPON+4GE+1POTS+CATV+USB 3.0+Wi-Fi 5 HGU ONT - White x1

Why V-Sol?

V-Sol is dedicated to providing reliable and high-performance networking solutions tailored for the unique demands of the South African market. With a focus on quality and customer support, V-Sol empowers homes and businesses with the connectivity they need to thrive in the digital age. As a leading provider of fibre router South Africa solutions, V-Sol ensures optimal performance and dependability for all your networking needs.
