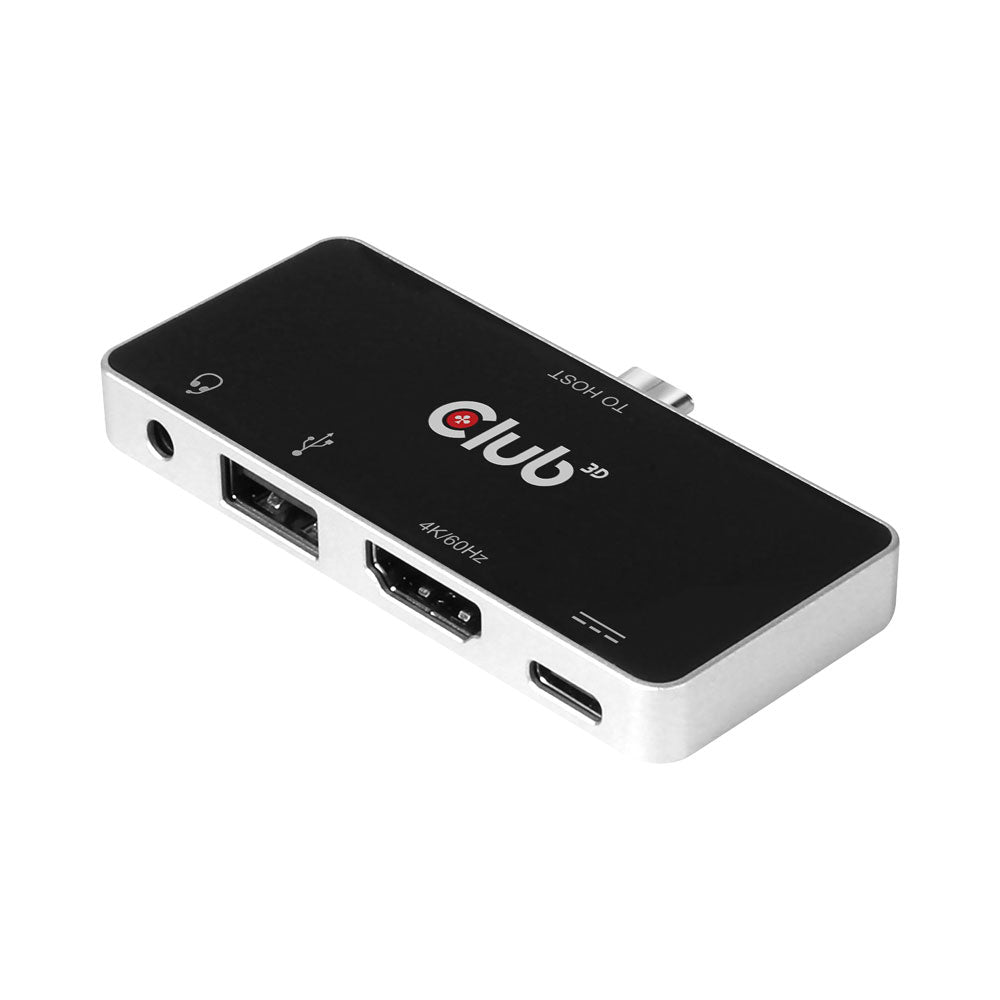

USB TYPE-C 4-IN-1 HUB, HDMI, TYPE-C PD, USB A, AUD

Features

• Upstream
• 1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4Gbps per lane, 4 lanes 21.6Gbps
• Downstream
• 1x HDMI Female
• Support HDMI max 4K/60Hz 4:4:4 8bit with 18Gbps Bandwidth
• Support 6/8/10/12 bit color depth output
• Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
• Support HDCP 2.2 & HDCP1.4
• Support HDR
• 1x USB Type A 2.0, Max 480Mbps bandwidth
• Support BC 1.2 with max 7.5W(5V@1.5A) downstream charging
• 1x 3.5mm combo audio*
• Support 48K/44.1KHz sampling rate
• Audio output
• *Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected
• When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last
• When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port
• Available Interfaces
• Upstream:  1x USB Type C Male  (Host connection)
• Downstream
• 1x HDMI 4K60Hz Female for connecting to Monitor
• 1x USB type A, BC1.2 charging
• 1x USB Type-C Female, PD Charging only (Max 100W)
• 1x.3.5mm combo audio

Shipping Dimensions

• Length: 10 cm
• Width: 10 cm
• Height: 3 cm
• Weight: 0.20 kg
