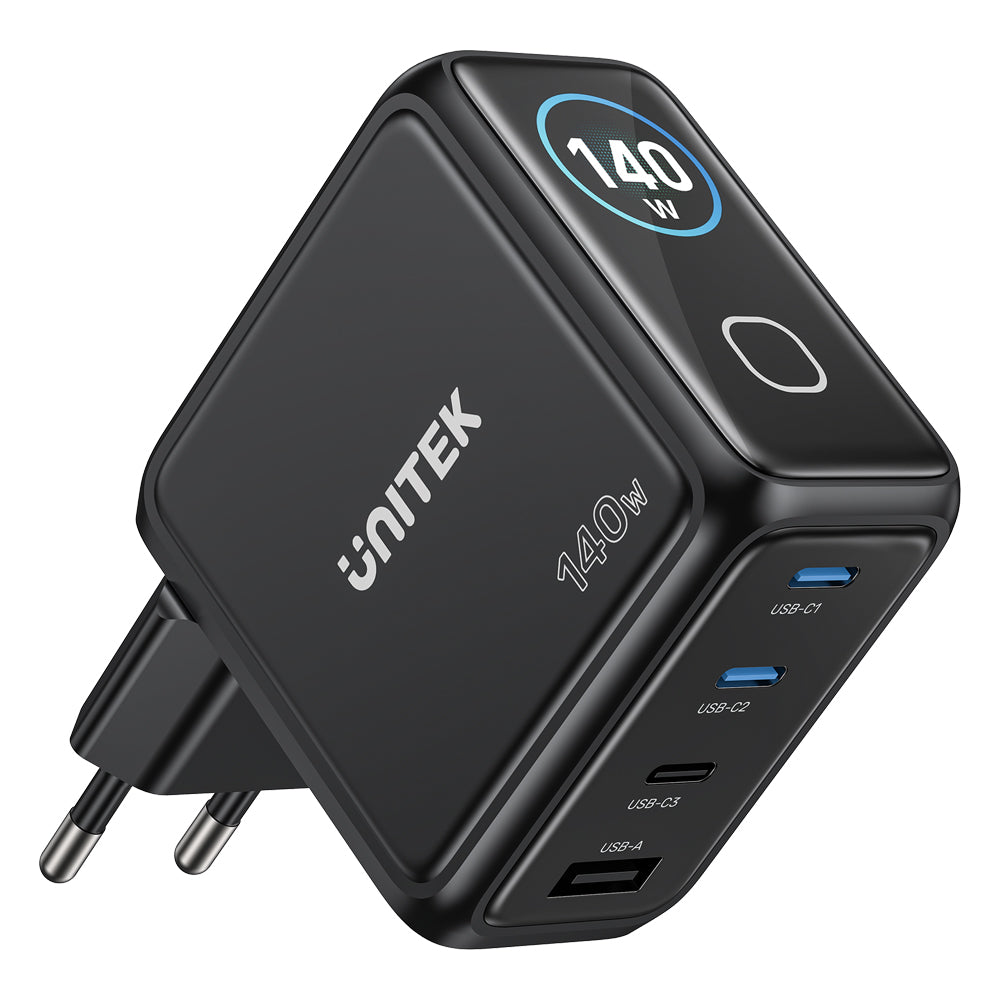

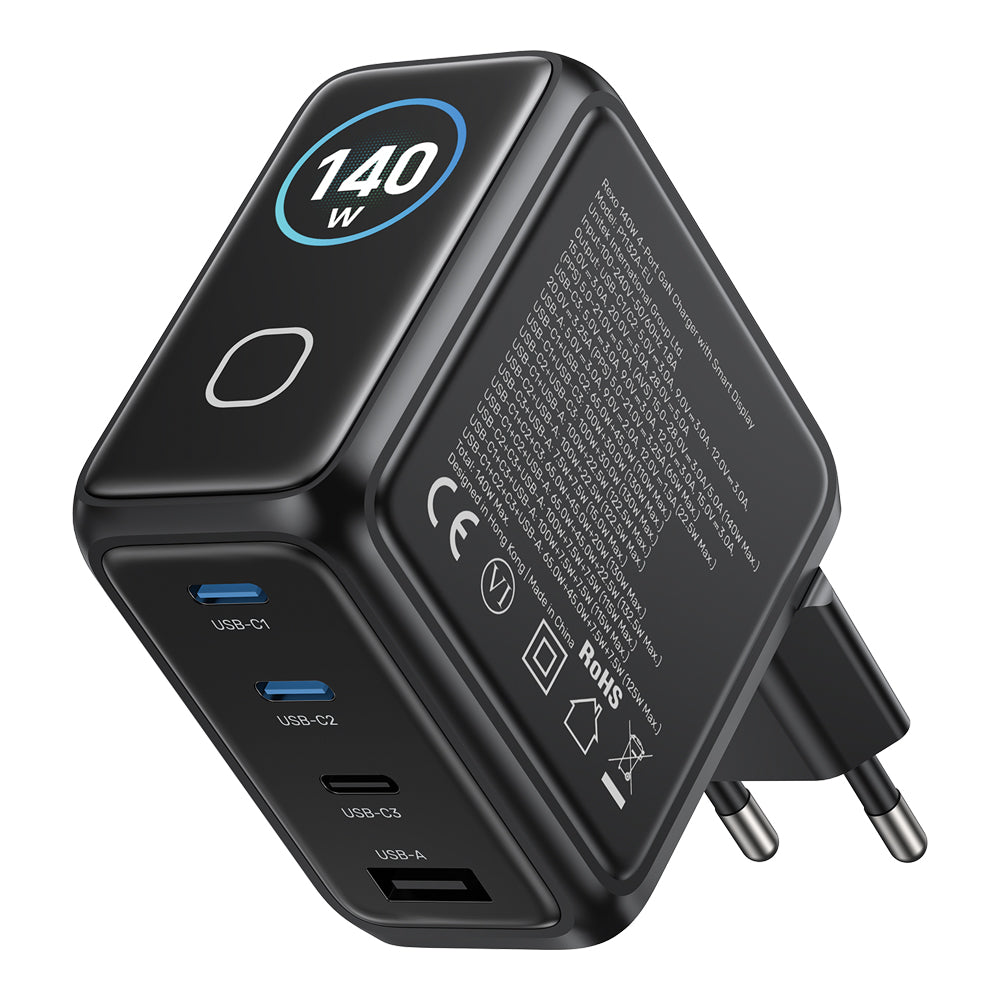

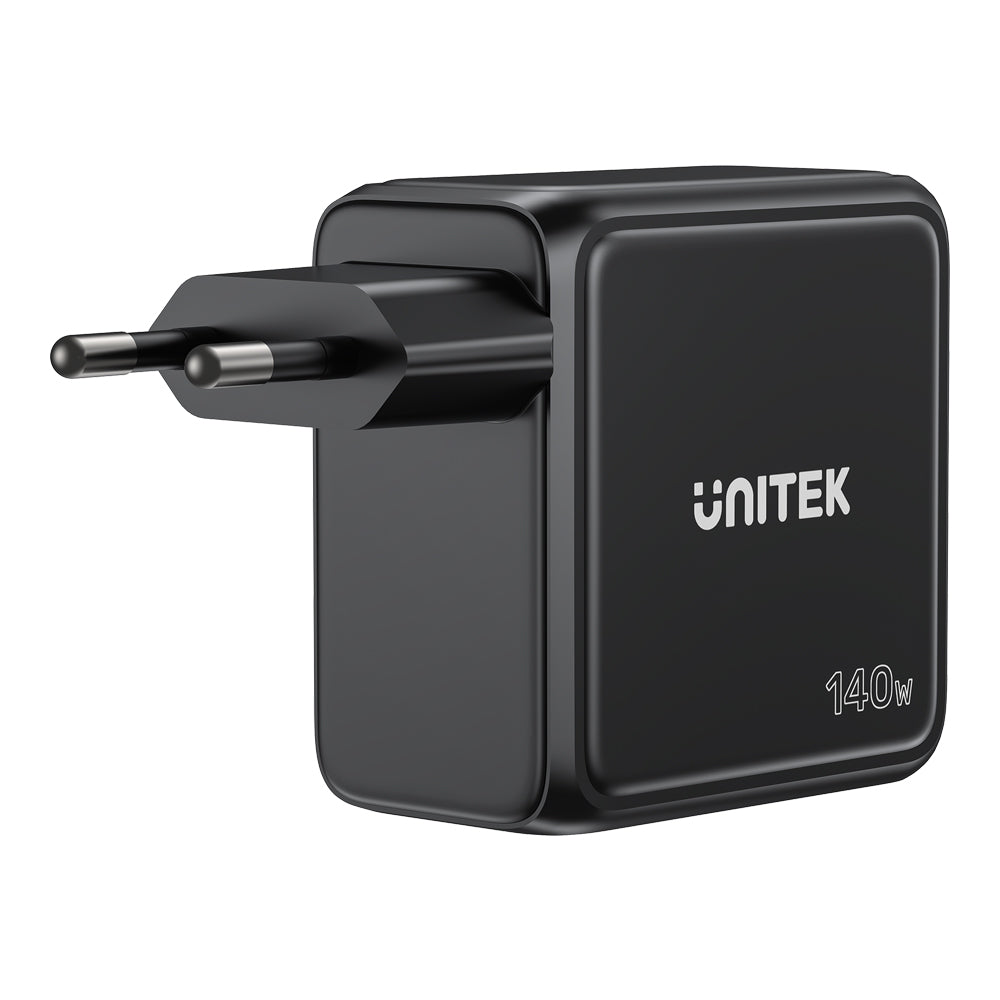

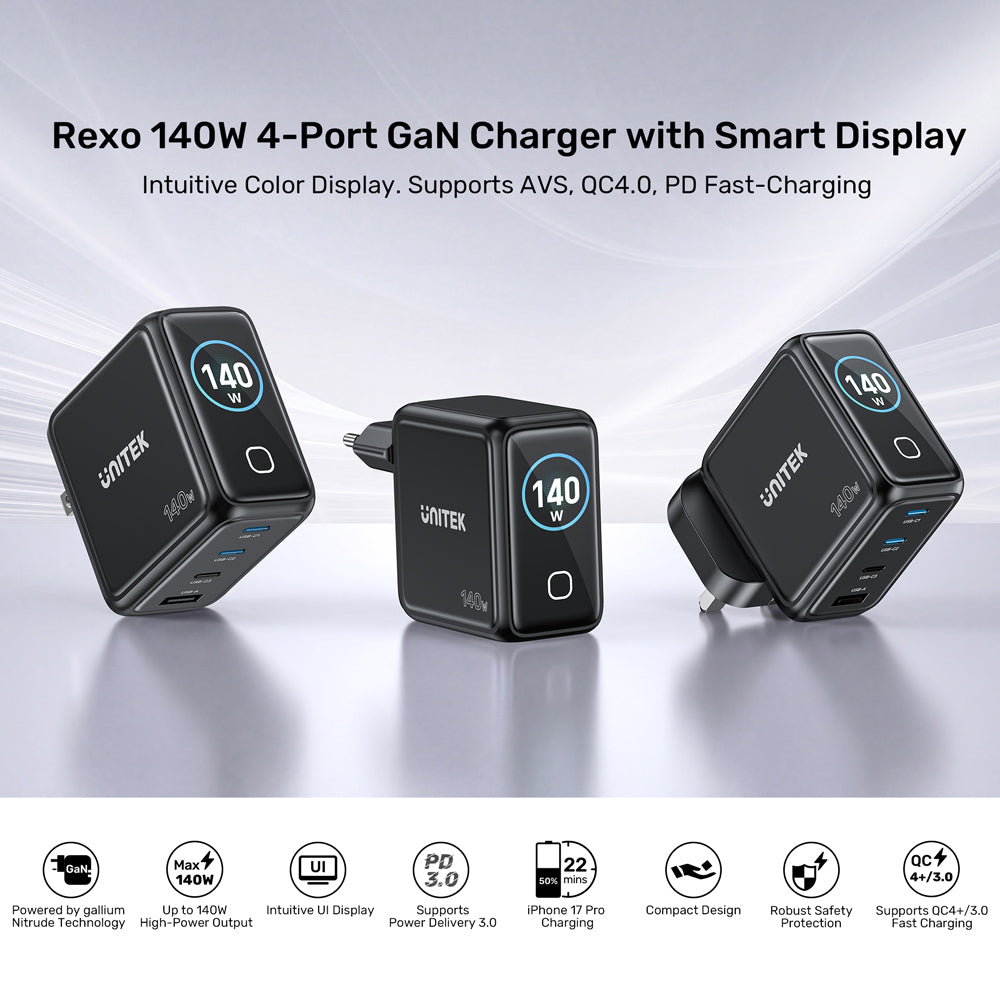

UNITEK P1132A Rexo 140W 4-Port GaN Charger with Smart Colour Display - 3× USB Type-C and 1× USB Type-A
Ultra-Fast 140W GaN Charging with Real-Time Smart Power Monitoring.
The UNITEK P1132A Rexo 140W 4-Port GaN Charger delivers powerful multi-device charging in a compact travel-friendly design. Featuring three USB Type-C ports and one USB Type-A port, it intelligently distributes power to charge laptops, tablets, smartphones and accessories simultaneously. The integrated smart display provides real-time power consumption, connection status and operating mode at the touch of a button, while advanced GaN technology delivers higher efficiency with reduced heat generation. Supporting PD3.1, PPS, QC4+, AVS and a wide range of fast charging protocols, the P1132A is an ideal charging solution for home, office and travel.
Features
- 140W Maximum Output - Delivers up to 140W from USB Type-C1 or USB Type-C2 for high-performance laptop charging

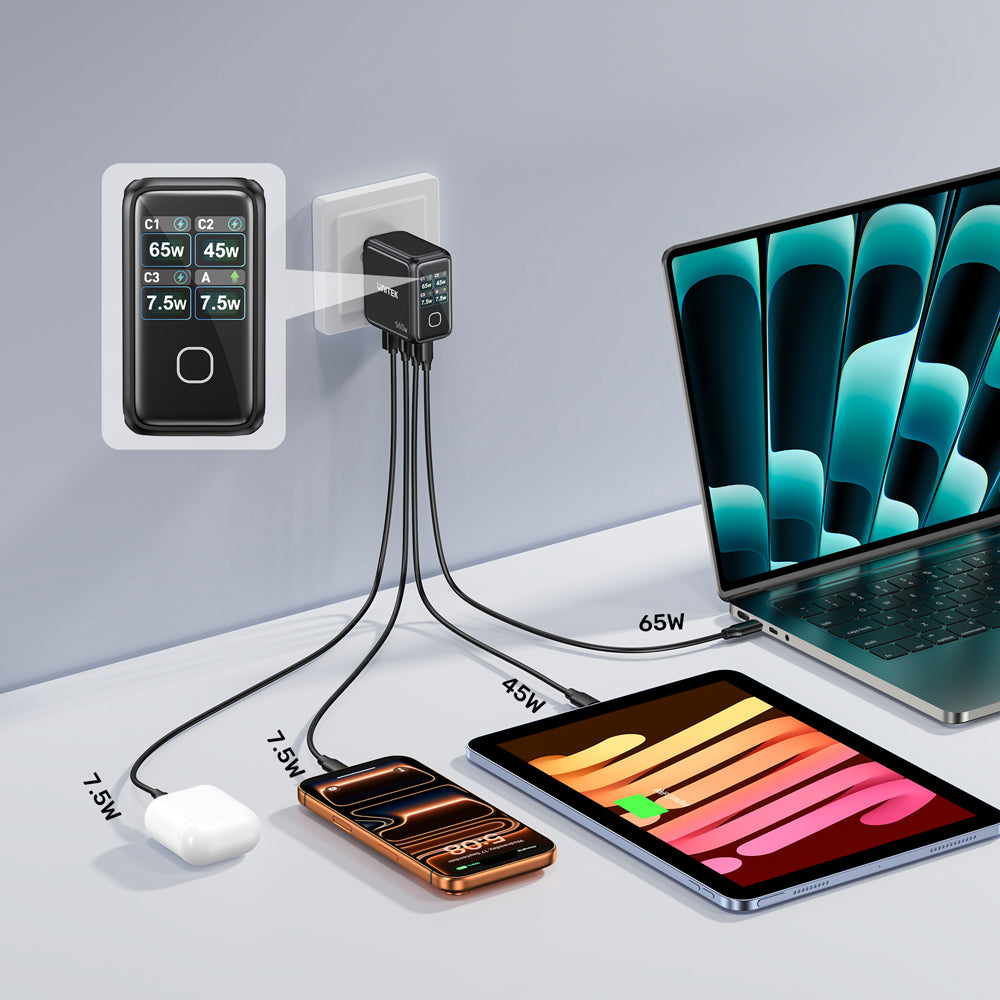

- 4-Port Charging - Charge up to four devices simultaneously with 3× USB Type-C and 1× USB Type-A ports
- GaN Technology - Provides high efficiency, reduced heat and a compact design

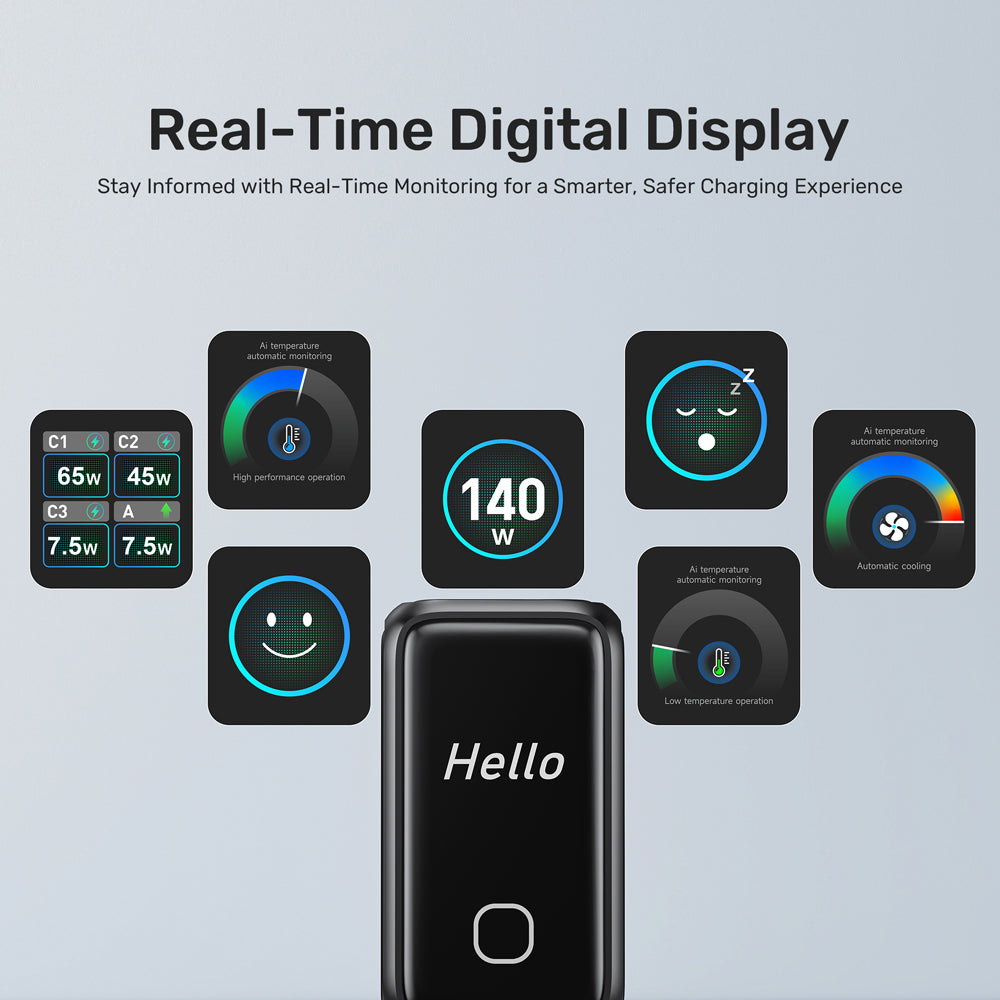

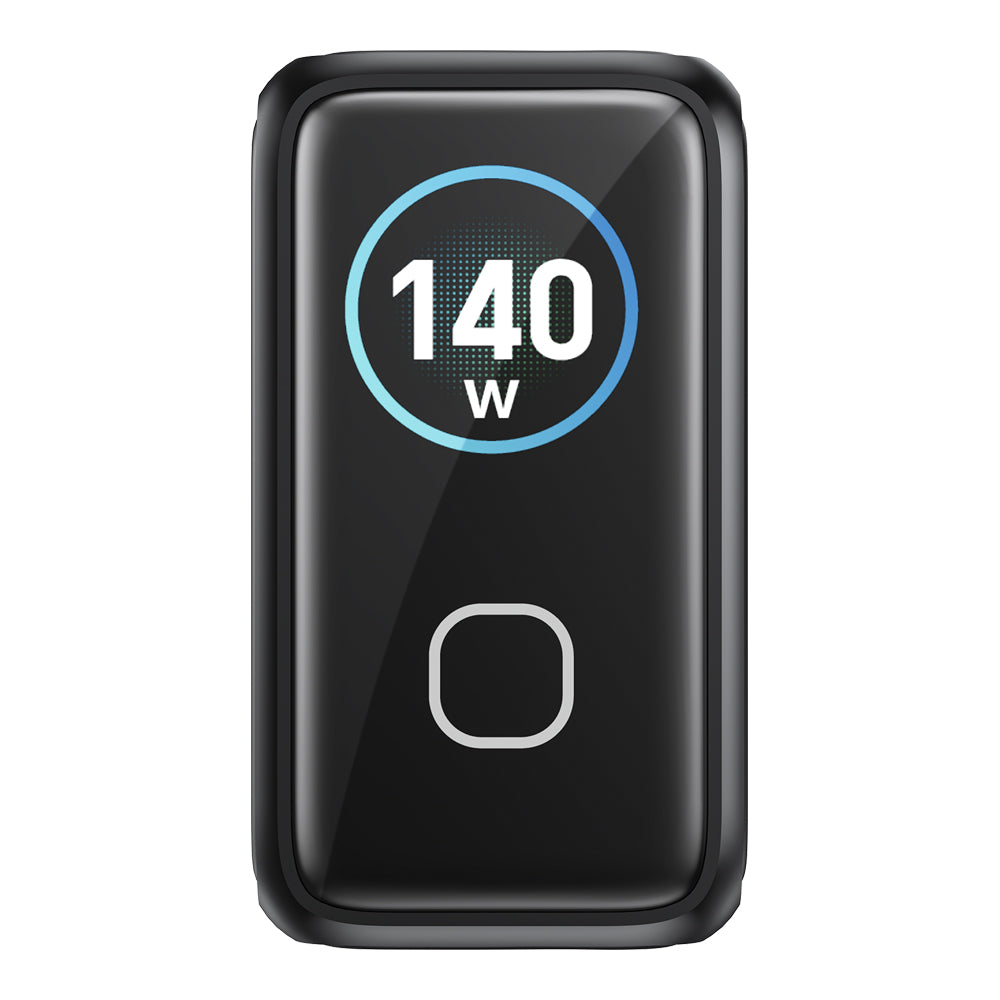

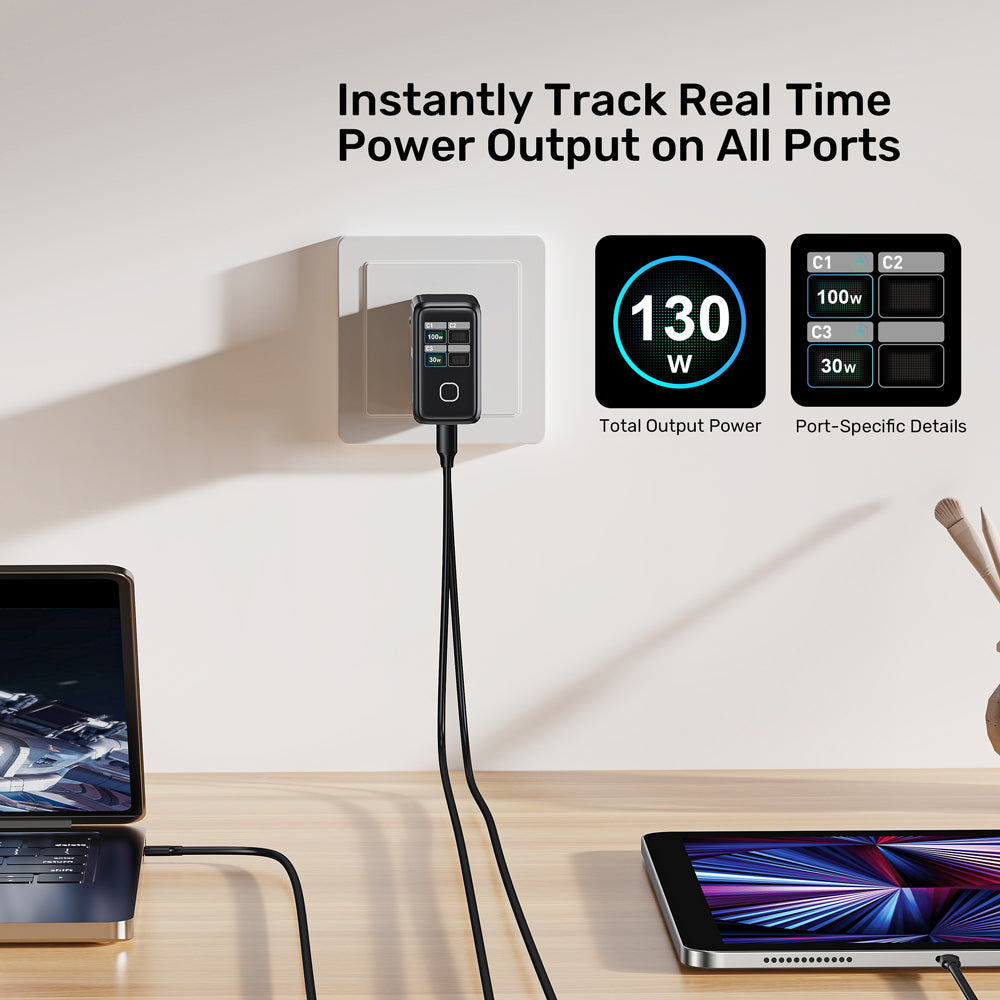

- Smart Colour Display - Displays real-time power output, charging status and operating mode

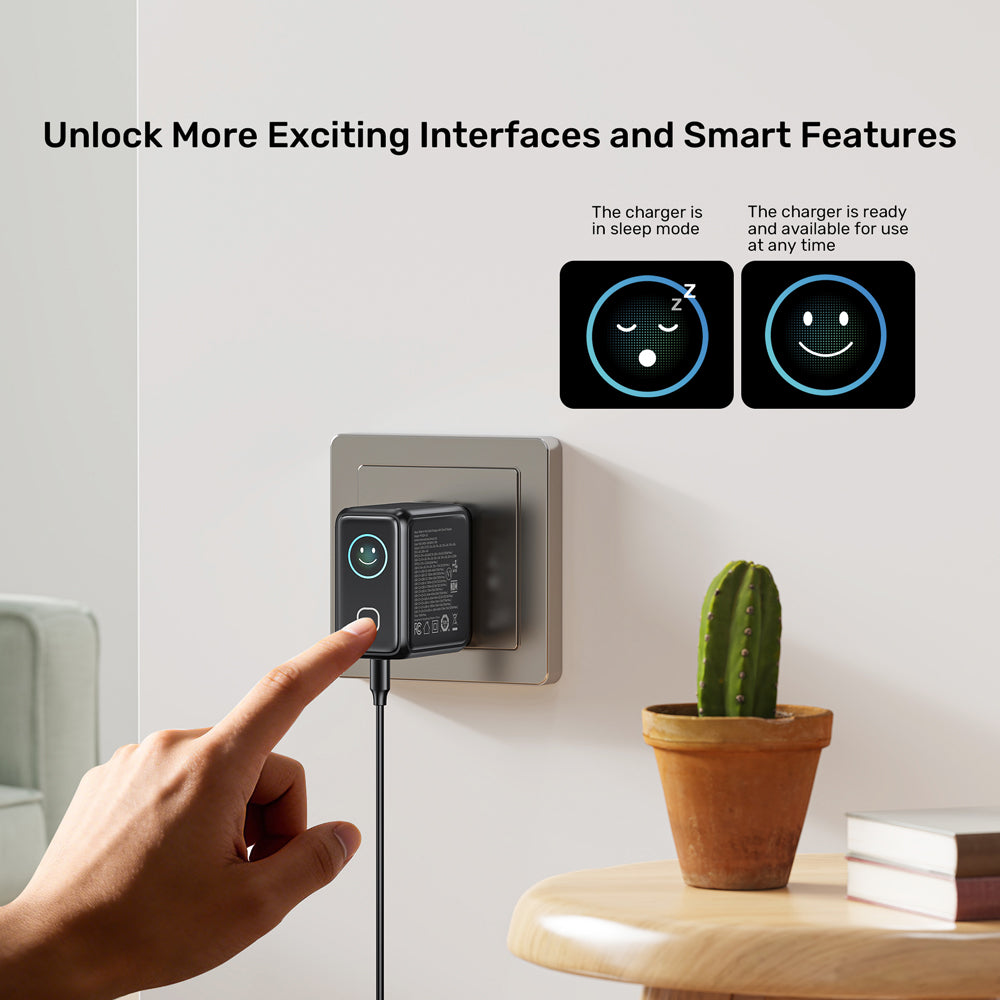

- One-Touch Display Control - Easily switch between total power, individual port information and operating modes
- Three Operating Modes - Select Low Temperature, High Performance or Auto Cooling modes
- Intelligent Power Distribution - Automatically balances charging output across connected devices
- Wide Fast Charging Support - Compatible with PD3.1, PD3.0, PPS, AVS, QC4+, QC3.0, AFC, SCP, FCP and more
- AVS Compatible - Supports Adjustable Voltage Supply for the latest high-power USB Type-C devices
- Comprehensive Safety Protection - Includes over-current, over-voltage, short-circuit and over-temperature protection with auto recovery
- Travel-Friendly Design - Compact form factor ideal for home, office and travel use
Specifications
- Power Input: AC100-240V, 50/60Hz, 1.8A
- Maximum Output: 140W
- USB Ports: 3× USB Type-C, 1× USB Type-A
- USB Type-C1/C2 Output: Up to 140W (28V 5A) with PD3.1, PPS and AVS
- USB Type-C3 Output: Up to 65W
- USB-A Output: Up to 22.5W
- Charging Protocols: PD3.1, PD3.0, PD2.0, PPS, AVS, QC4+, QC4, QC3.0, QC2.0, AFC, FCP, SCP, PE2.0, PE1.1, SFCP, Apple 2.4A, BC1.2
- Standby Power Consumption: ≤0.5W
- Safety Tested to EN IEC 62368-1 Standards with CE Compliance and Class II Double-Insulated Protection.
- Material: PC
- Colour: Black

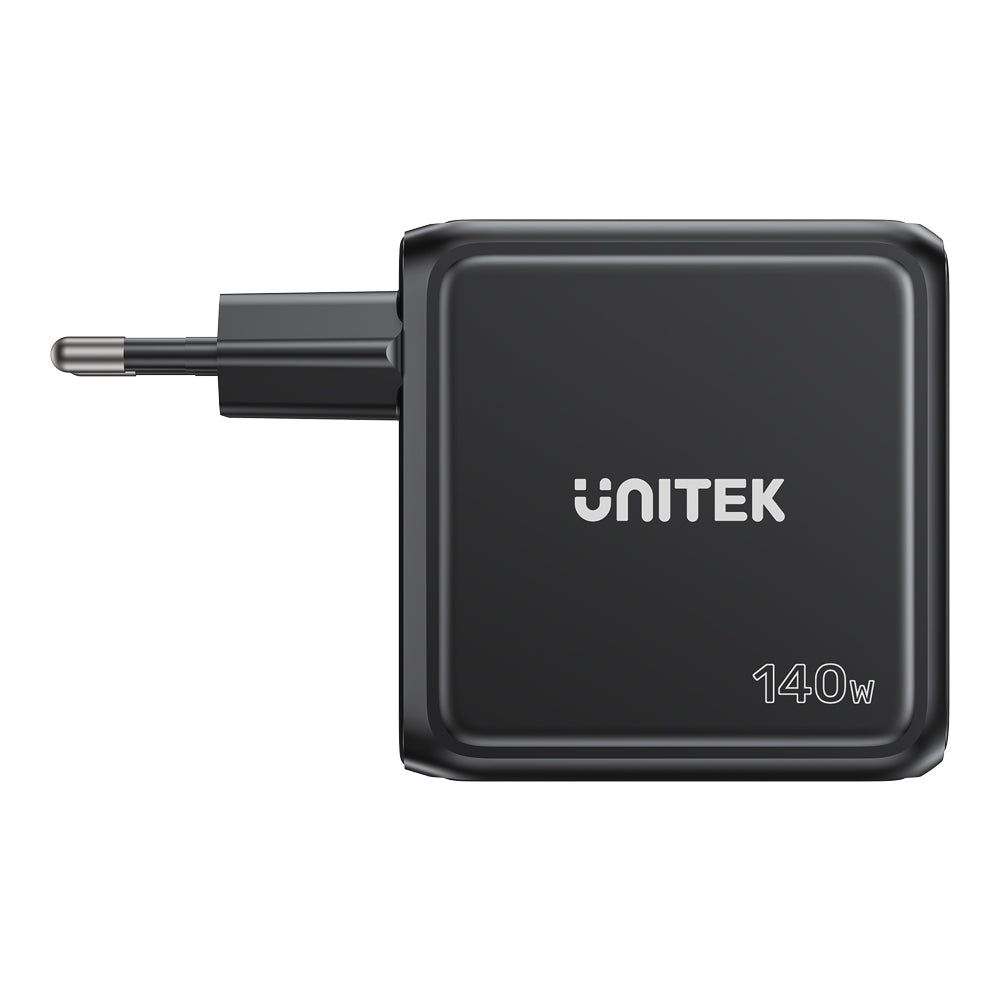

- Dimensions: 99 × 61.5 × 35mm
Notes

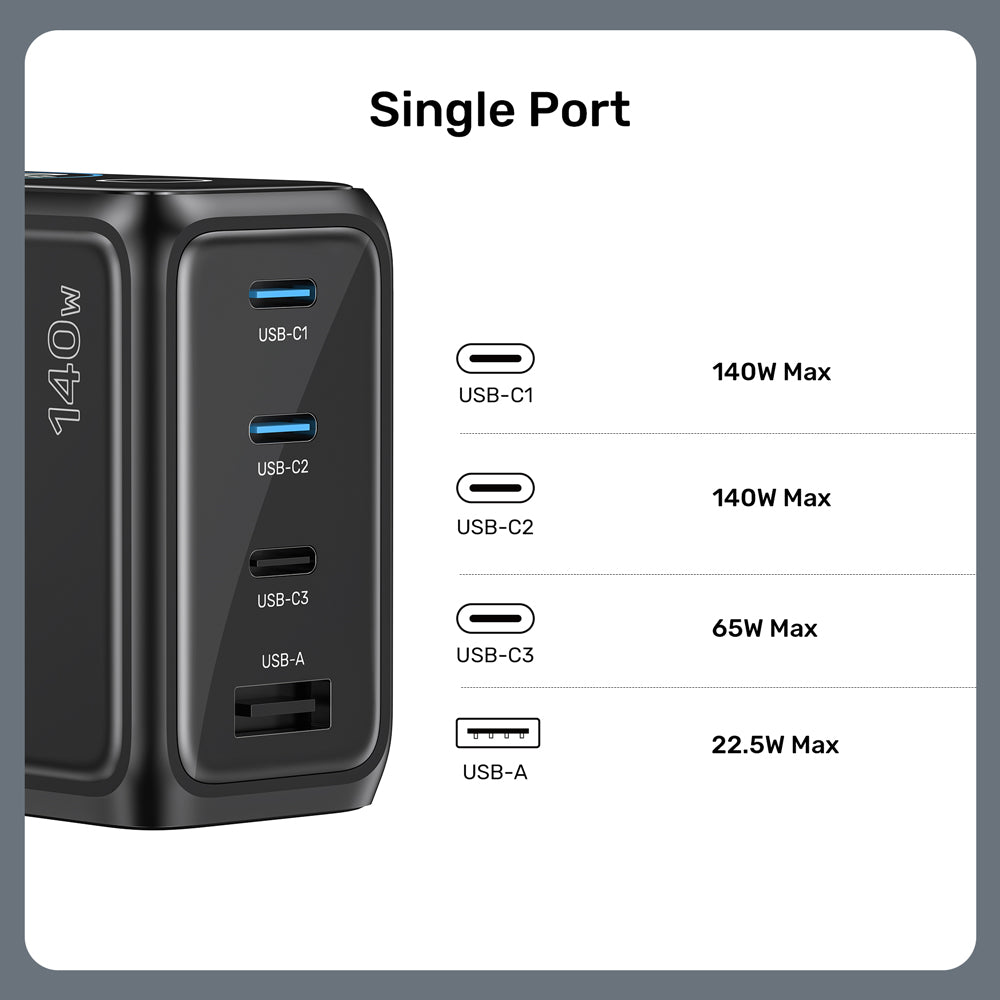

- USB Type-C1 and USB Type-C2 each support up to 140W when used individually
- USB Type-C3 supports up to 65W and USB Type-A supports up to 22.5W

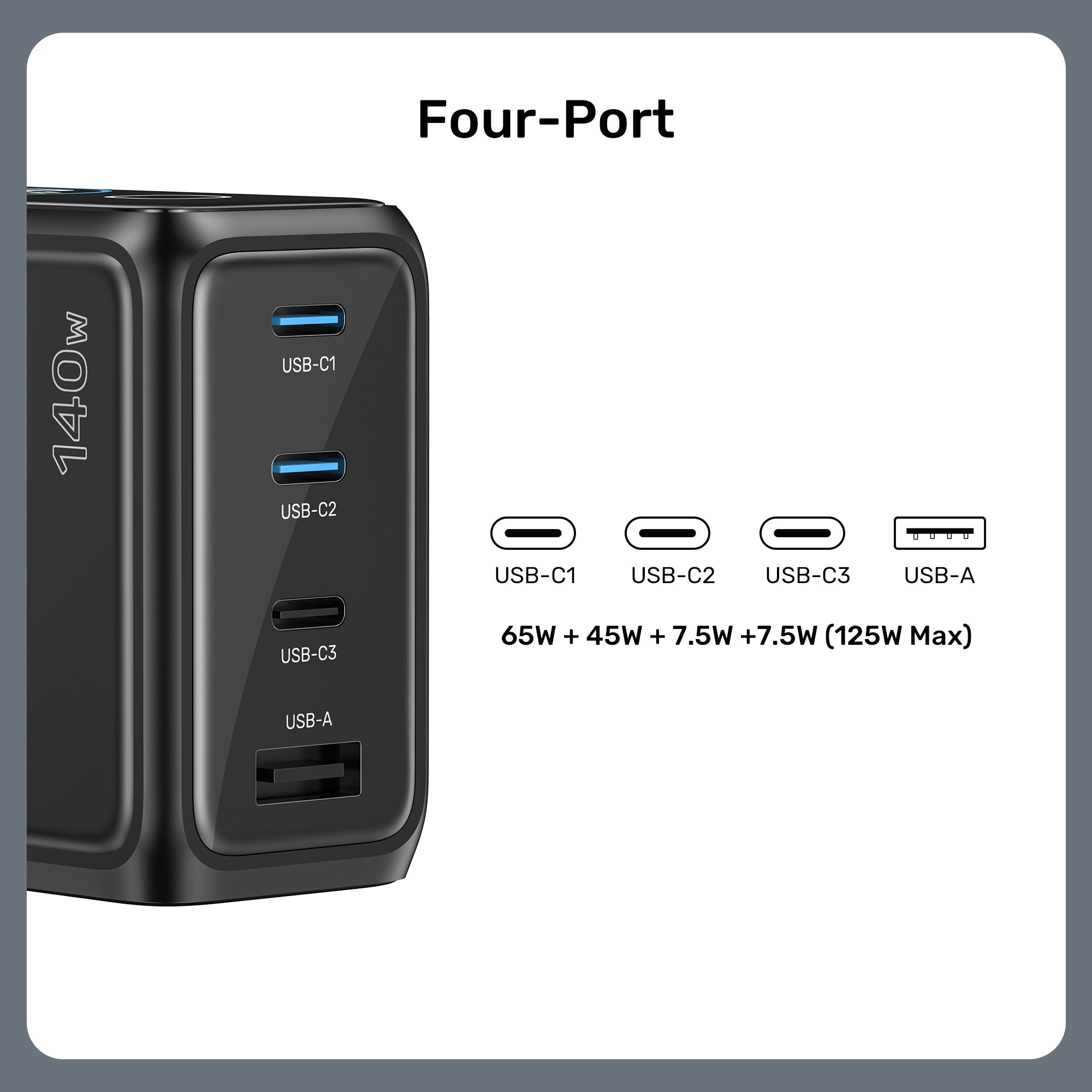

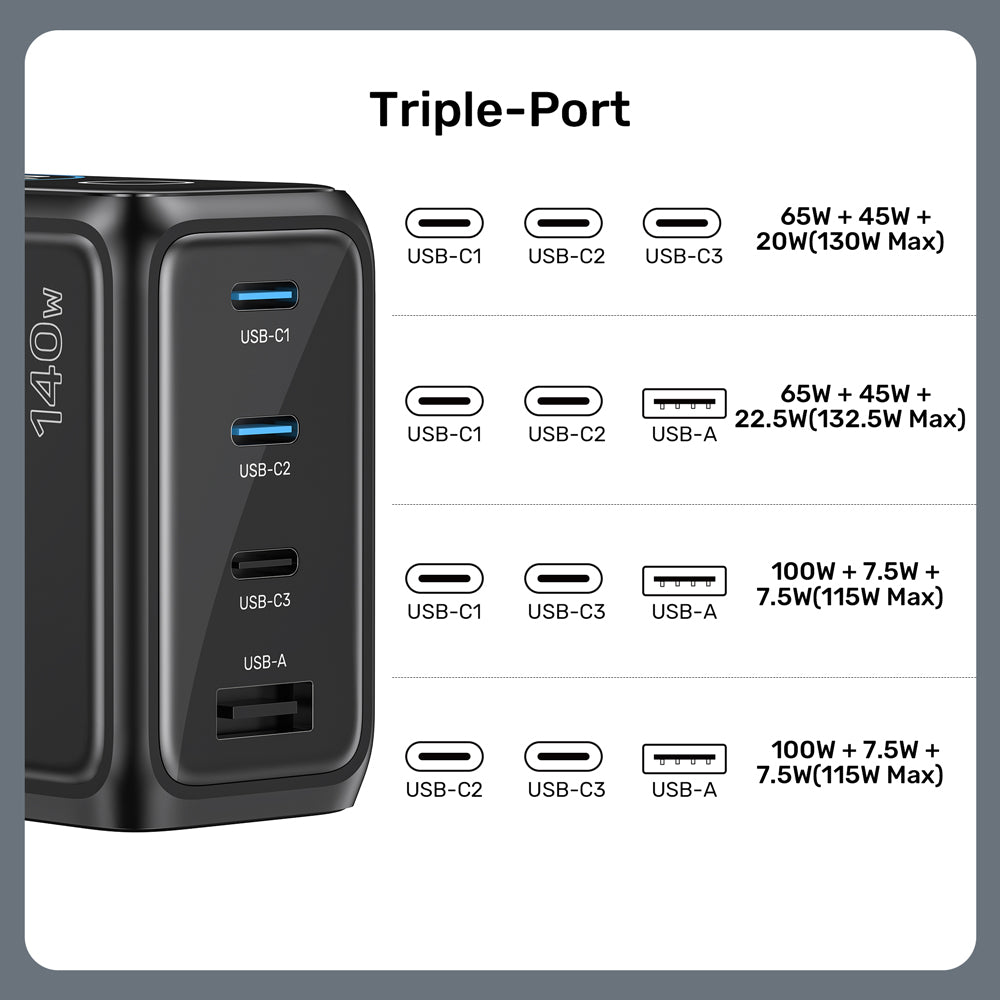

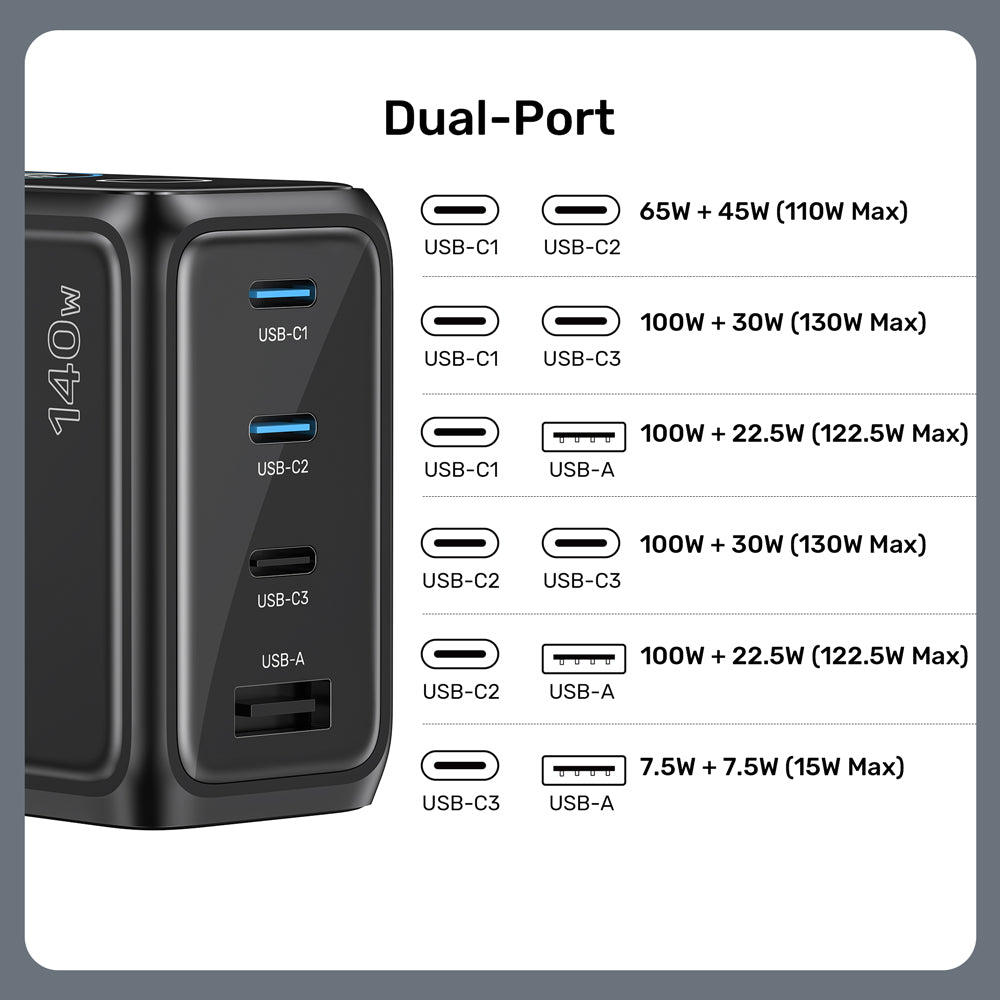

- Maximum combined charging output varies depending on the number of connected devices and port combinations

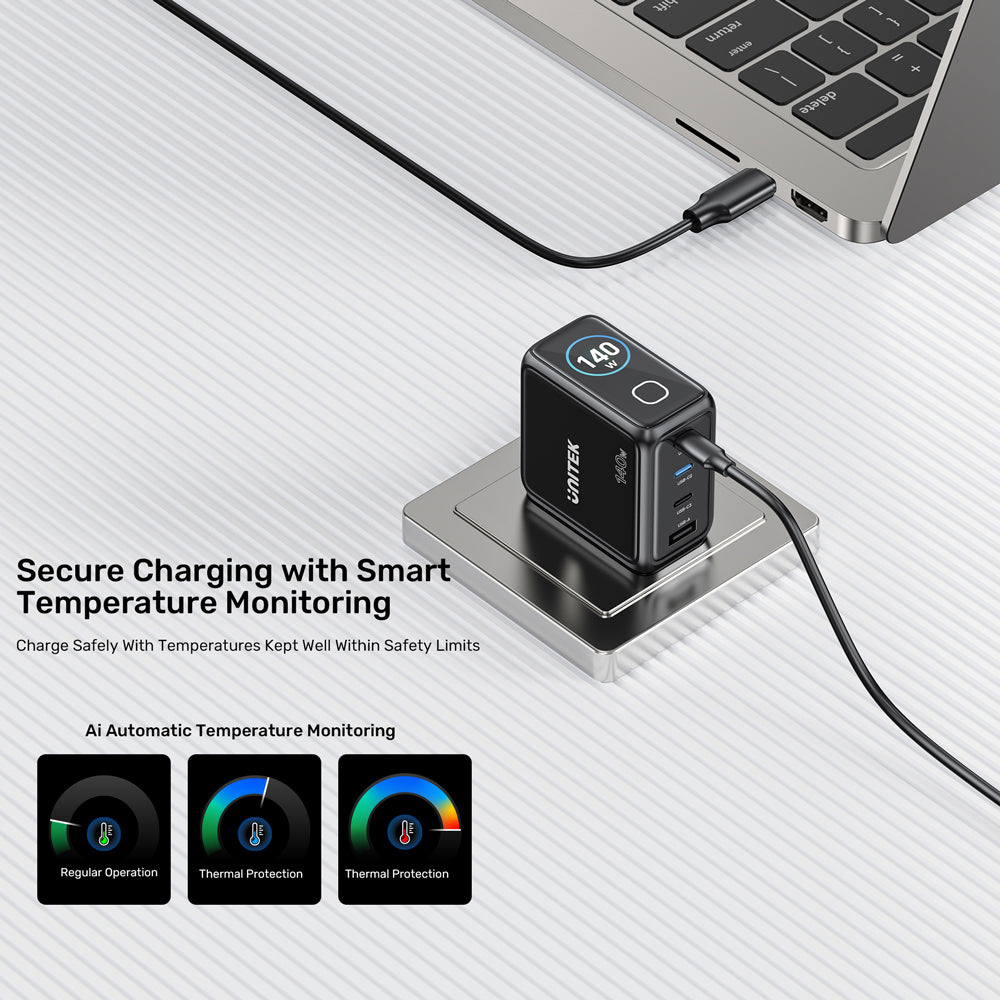

- Integrated NTC thermal protection automatically reduces maximum output to 100W when the internal temperature reaches 77°C to help protect the charger and connected devices
