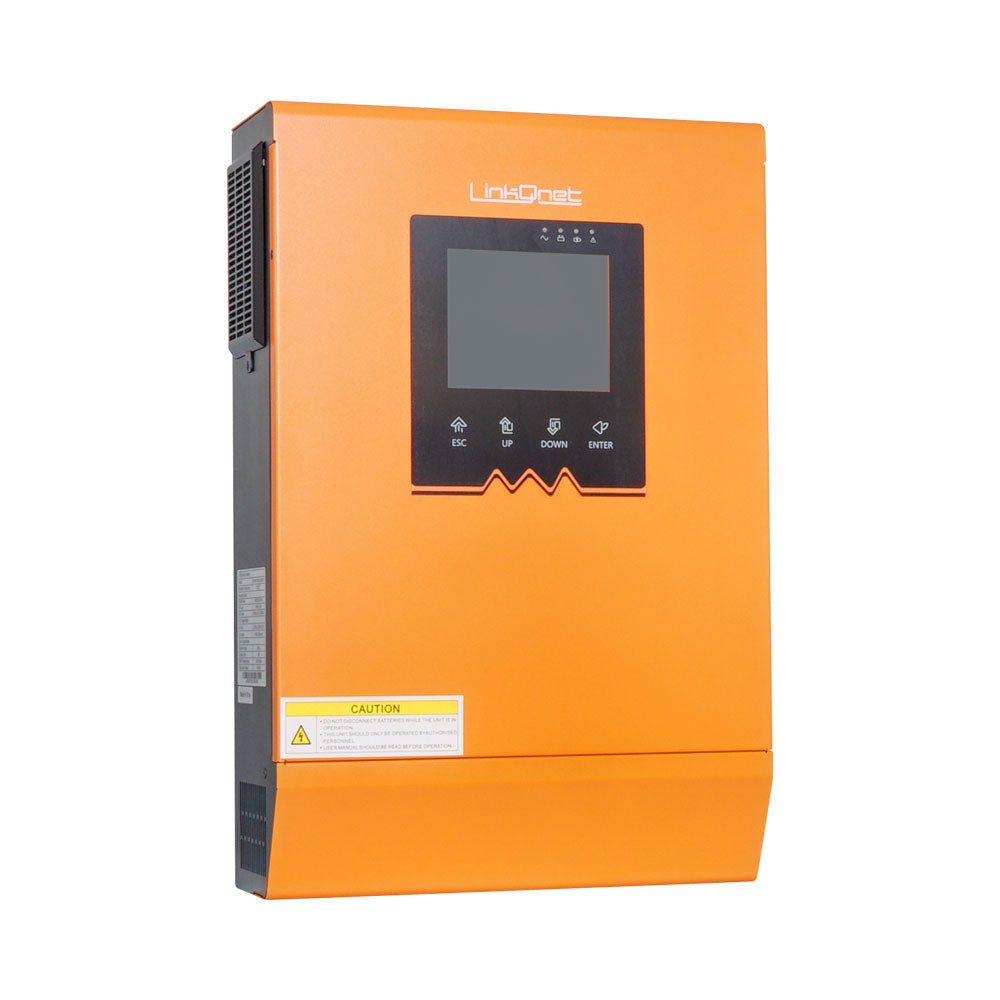

LinkQnet 5048TG2 Premium 5kW Off-Grid On-Grid Backup MPPT Solar Inverter
Solid and Reliable: The LinkQnet range of multi-functional inverters have been designed to tolerate African power grid and environmental conditions and are intended to be installed by a qualified electrician or certified solar solution provider in accordance with SANS 10142-1. If you are not qualified then Linkqage will always direct you to one of our many registered installers.
Features
- Parallel-Able Pure Sinewave Inverter with Unity Power Factor
- Built in 6000W MPPT High Voltage Solar Charge Controller (500V DC MAX)
- Configurable Input Voltage Range for Home Appliances or UPS Transfer (<10ms)
- Configurable Smart Battery Charging Current Based on Application with BMS Support
- Configurable AC/Solar Charger Priority with Load Power Source Mixing
- Battery Independent Design (MPPT voltages > 130V DC - Single Unit Only)
- Compatible With Mains or Generator Power
- Auto Restart When AC Recovers or PV Power is Available
- Overload / Over Temperature / Short Circuit Protection, Quieter Variable Speed Fans
- Dual Programmable AC Outlets (Allows You to Split Essential Loads and Critical Loads)
- Cold Start Function, Wi-Fi Monitoring Included (Wi-Fi Coverage is Required at Install Site)
Specifications
Inverter
- Peak Power: 5000VA (10000VA surge for max 10 seconds)
- RMS Power: 5000W (PF=1)
- AC Voltage: 230V (220V–240V adjustable)
- AC Waveform: Pure sine wave (50Hz / 60Hz auto sensing)
- Efficiency (Peak): >94%
- DC Voltage: 48V (Single unit can operate without batteries if MPPT voltage > 130V DC)
- Transfer Tolerance: 170V to 280V (UPS mode) / 90V to 280V (Appliance mode)
- Transfer Time: 10ms (UPS mode) / 20ms (Appliance mode)
Charging
- AC Charge: 80A (adjustable)
- SCC Type: MPPT
- SCC Voltage: 120V–430V DC
- Max PV OC Voltage: 500V DC
- Max SCC Power: 6000W
- SCC Charge: 80A (adjustable)
- Max Combined Charge: 80A (adjustable)
- SCC Efficiency: 98%
- Standby Power Consumption: 2W (inverter can be configured to shut down if no load is present)
Options
- Parallel Capable: up to nine units in 1PH or three units in 3PH – parallel kit included
- Communication: USB-B, Wi-Fi module included
- Battery Types: Flooded, AGM, GEL, Li-Ion, Super capacitor, Custom
- BMS Support: Yes – RS485/CANbus port for compatible battery packs
- Wi-Fi Support: Wi-Fi cloud data logging dongle included (2.4GHz, WPA2 Wi-Fi is required)
- Relay Support: Relay port (NC/NO) for remote control of a generator start or other devices
- Warranty: Two years – conditional
Physical
- Weight: 8.45kg
- Dimensions: 110mm (D) × 300mm (W) × 440mm (H)
- Operating Humidity: 5% to 95% relative humidity (non-condensing)
- Operating Temperature: 0°C to 50°C (room temperature)
Installation
- Installation Environment: Indoor environment with no exposure to direct external air in coastal regions
- Input Isolator and Surge Protection Device: 40A–63A dual pole (to be purchased), surge protection device recommended
- Input Circuit Breaker: 40A normal curve (to be purchased)
- Output Circuit Breaker: 25A normal curve (to be purchased)
- Bypass Switch: 40A–63A dual pole, double throw with centre off (to be purchased)
- Output Isolator: 25A–63A dual pole (to be purchased)
- Earth Leakage Relay: 63A with 30mA break leakage for plug circuits (to be purchased)
- PV Configuration and Surge Protection Device: 2 × 20A 600V solar fuse / isolator with surge protection device required if PV panels are installed; typical PV layout is 9 × 380W to 600W panels in series
