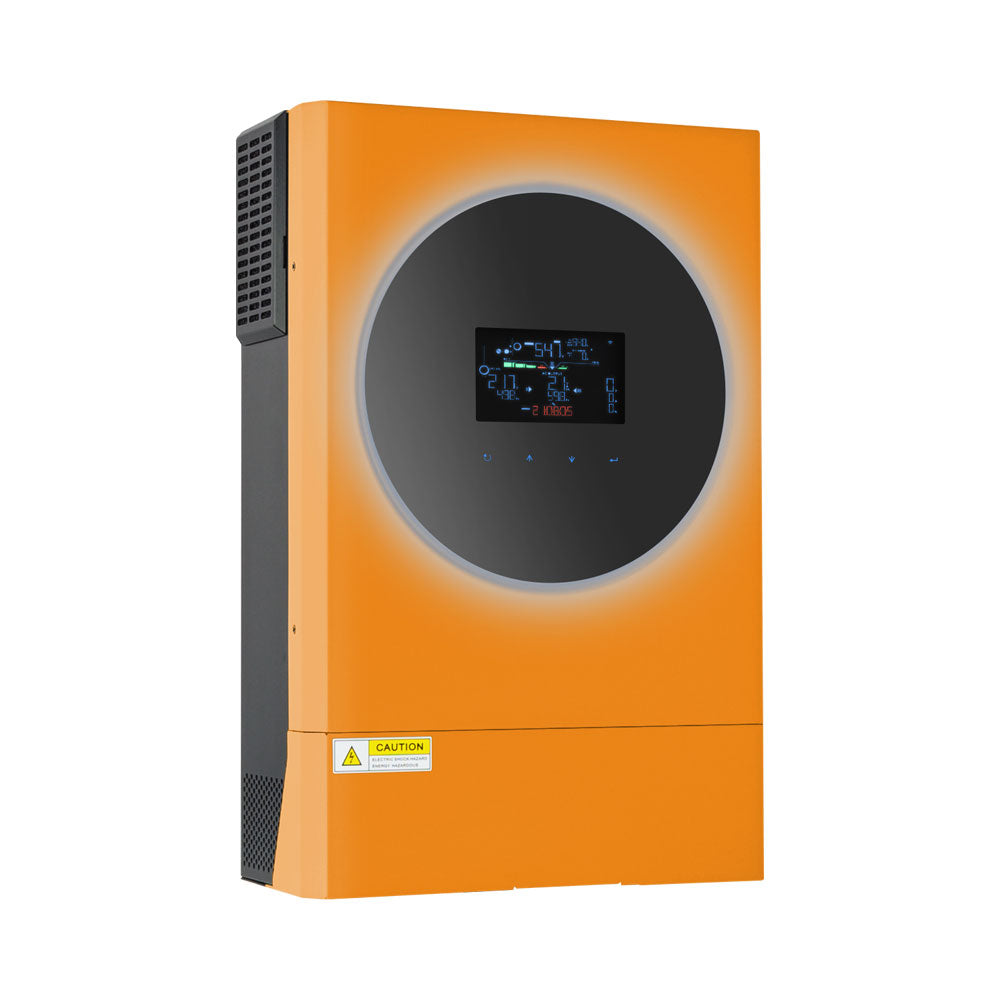

LinkQnet 5.6kW PF1 48VDC Inverter 6000W HV MPPT With 120A MPPT and 120A Mains Charger
This inverter delivers a peak power of 5600VA and an RMS power of 5600W, with an AC output voltage of 230V and a DC input voltage of 48V (battery required). It features a transfer time of 10ms/20ms and an AC charging current of 120A. The built-in MPPT solar charge controller (SCC) supports an ideal input voltage range of 120V to 430V DC, a maximum PV open-circuit voltage of 450V DC, and a maximum SCC power of 6000W, with a charging current of up to 120A. The combined maximum charging current is 120A. This unit supports parallel operation for up to 9 units, with built-in parallel capability. Communication options include USB, RS-232, and RS-485 (BMS). While direct Bluetooth is not supported, Wi-Fi is included, and 3G and SNMP options are available. The inverter supports various battery types, including Flooded, AGM, GEL, Li-Ion, and Custom types, and is compatible with BMS systems.
Features
- Peak Power: 5600VA
- RMS Power: 5600W
- AC Voltage: 230V
- DC Voltage: 48V (Battery Required)
- Transfer Time: 10ms/20ms
- AC Charge: 120A
- SCC Type: MPPT
- Ideal SCC Voltage: 120V - 430V DC
- Max PV OC Voltage: 450V DC
- Max SCC Power: 6000W
- SCC Charge: 120A Max
- Combined Charge: 120A
- Parallel Capable: Yes - Parallel Built-In for Up to 9 Units
- Communication: USB / RS-232 / RS485 (BMS)
- Direct Bluetooth: No
- Wi-Fi Option: Yes (Installed)
- 3G Option: Yes
- SNMP Option: Yes
- Battery Types: Flooded, AGM, GEL, Li-Ion, Custom
- BMS Support: Yes
