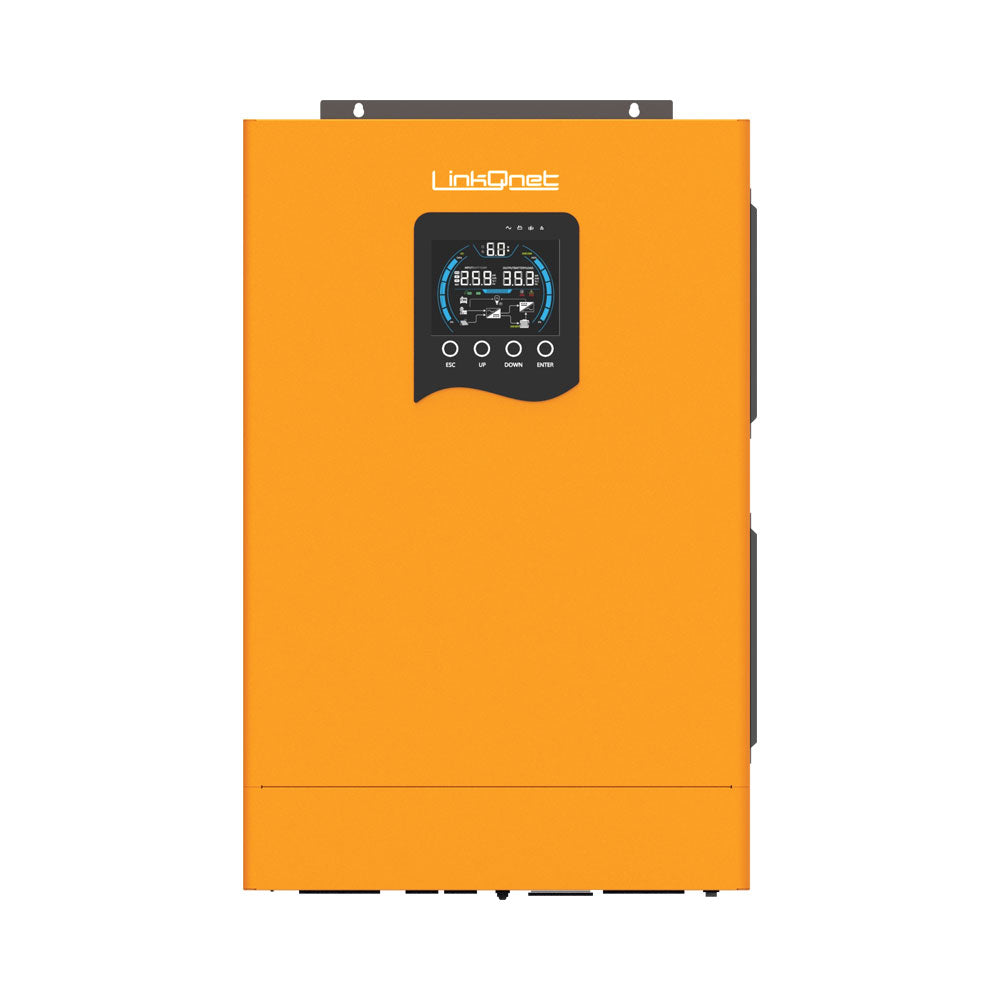

LinkQnet 10kVA Dual Output 48V Inverter
Designed for demanding power needs, the LinkQNet 10kVA Dual Output 48V Inverter delivers robust performance and versatile output options for homes, businesses, and industrial applications. Built for reliability, this inverter ensures clean, stable power with the flexibility to handle both AC and DC loads efficiently.
Features
- Pure Sinewave Solar Inverter
- Compatible with AC Mains or Generator Inputs
- Considerable PV Input Types
- Build-In Smart Solar Charger (PWM/MPPT)
- Auto Restart while AC is Recovering
- Configurable AC/Solar Input Priority via LCD Setting
- Selectable Input Voltage Range for Home Appliances and Personal Computer Loads
- Dual PV Input Max 36A
Specifications
- Rated Power: 10,000VA / 9,500W
- Parallel Capability: Yes (optional), up to 4 units
- Operation without Battery: No
- Lithium Battery Communication: Yes
- Dual Output: Yes
Input
- Voltage: 220/230/240VAC
- Selectable Voltage Range: 170-264Vac (for personal computer), 90-280Vac (for home appliances)
- Frequency Range: 50Hz/60Hz (auto sensing)
Output
- AC Voltage Regulation (Battery Mode): (220VAC-240VAC) ±5%
- Surge Power: 20,000VA
- Wave Form: Pure Sinewave
- Inverter Efficiency (Peak): 0.94
- Transfer Time: 10ms (typical)
Battery
- Normal Voltage: 48VDC
- Floating Charge Voltage (Settable): 55.2VDC
- Overcharge Protection: 60VDC
Solar Charger And Ac Charger
- Max. PV Array Open Circuit Voltage: 500VDC
- PV Array Voltage Range: MPPT 120-450VDC
- Number of MPP Trackers: 2
- Max. PV Input Power: 12,000W (6000W ×2)
- Max. PV Input Current: 18A ×2
- Max. Solar Charge Current: 100A ×2
- Max. AC Charge Current: 200A
- Max. Charge Current: 200A
Communication
- Interface: USB/RS485/CAN/DRY CONTACT
- Wi-Fi Monitoring: Yes (optional)
Mechanical Specifications
- Machine Dimensions (H × W × D): 460 × 700 × 120mm
- Package Dimensions (H × W × D): 805 × 530 × 200mm
- Net Weight: 22.85kg
- Gross Weight: 25.05kg
Certification
- CE EMC standards (EN IEC 61000-6-3, EN IEC 61000-3-2, EN IEC 61000-3-3, EN IEC 61000-6-1)
- VD standards (EN 62109-1, EN 62109-2)
Other
- Humidity: 5% to 95% Related Humidity (Non-condensing)
- Operating Temperature: 0°C~40°C
- Storage Temperature: -15°C~60°C
