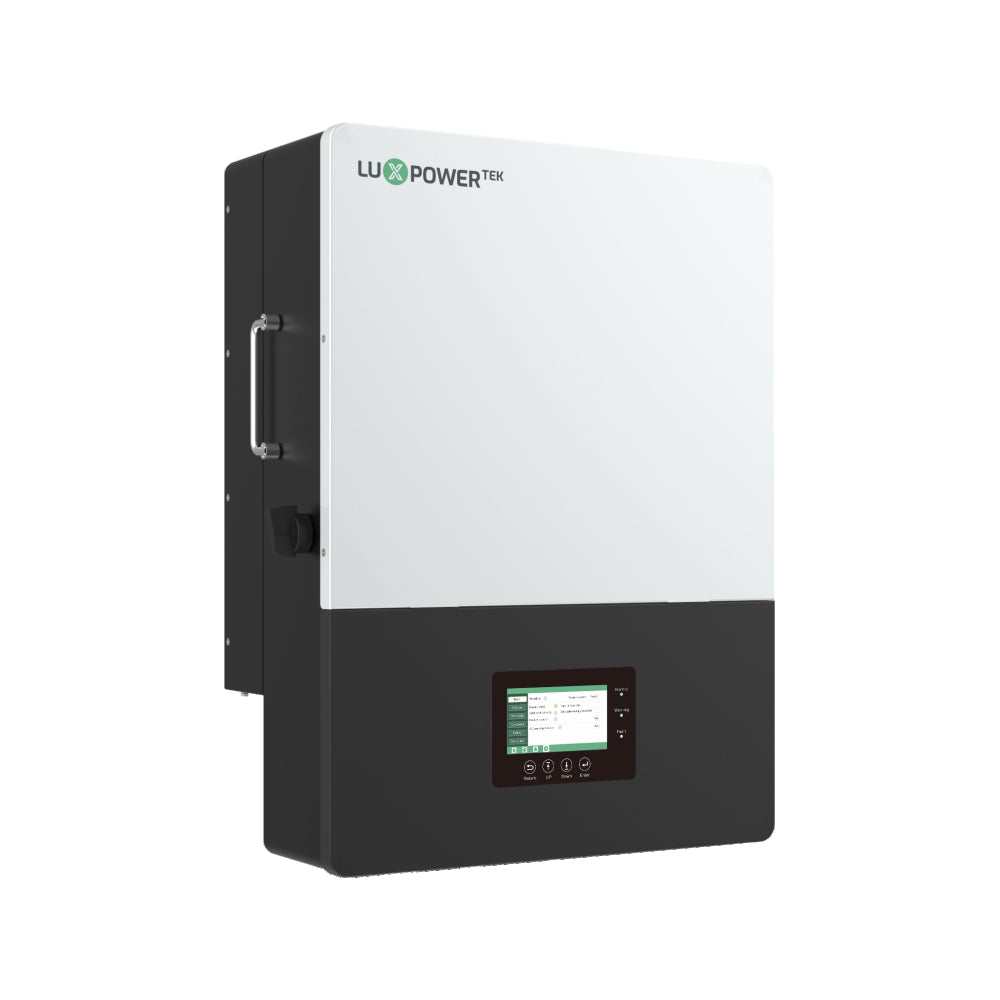

LuxPower LXP-LB-EU-12K 12KW Single-Phase Hybrid On-Grid 3x MPPT Inverter
Smart Power. Maximum Control. Total Energy Independence.
Take full control of your energy with the LuxPower 12kW Hybrid Inverter – a high-performance solution designed for modern residential and light commercial installations. Engineered for flexibility, it seamlessly integrates solar, battery, grid and generator inputs, ensuring uninterrupted power and maximum energy efficiency. With advanced 3x MPPT tracking, high 99% efficiency and intelligent load management, it optimises every watt generated. Its fast 20ms UPS switching guarantees reliable backup during outages, while parallel scalability allows your system to grow with demand. Built with a durable IP65 rated enclosure and intuitive colour touch LCD, this inverter delivers robust, smart and future-ready energy management.
Features
- 12kW High Output Performance - Delivers reliable power for residential and light commercial energy demands
- Triple MPPT Technology - Maximises solar harvesting with 3 independent MPPT inputs
- Hybrid Energy Management - Seamlessly integrates solar, battery, grid and generator power
- Fast UPS Switching - <20ms transfer ensures uninterrupted power during outages
- High Efficiency Design - Up to 99% efficiency for optimised energy conversion
- 250A Charge and Discharge Capability - Enables rapid battery charging and high load support
- Parallel Expansion Support - Scale systems with up to 10 units in parallel
- Smart Load Control - Prioritises and manages energy usage efficiently
- AC Coupling Support - Ideal for upgrading existing solar installations
- IP65 Rated Enclosure - Durable design for indoor and outdoor installations
Specifications
Pv Input (Dc)
- Max. PV Array Power: 18,000W
- Rated PV Input Voltage: 360V
- MPPT Voltage Range: 120~480V
- PV Voltage Range: 100~600V
- MPPT Inputs: 3
Battery
- Battery Type: Lithium-Ion and Lead-Acid
- Nominal Voltage: 48V
- Voltage Range: 40~60V
- Max. Charge and Discharge Current: 250A
- Max. Charging Power: 12,000W
Ac Output (Grid)
- Rated Output Power: 11,500W
- Rated Voltage: 230V
- Frequency: 50Hz
- Rated Output Current: 50A
- Power Factor: 0.99
Ups Output
- Rated Output Power: 11,500W
- Rated Voltage: 230V
- Output Frequency: 50/60Hz
- Switching Time: 20ms
Efficiency
- Max. Efficiency: 99%
- MPPT Efficiency: 99%
- EU Efficiency: 97.5%
- Max. Charging Efficiency: 96%
- Max. Discharging Efficiency: 94%
Protection
- PV Reverse Polarity Protection: Yes
- Over Current and Over Voltage Protection: Yes
- Anti-Islanding Protection: Yes
- AC Short Circuit Protection: Yes
- Leakage Current Protection: Yes
- Surge Protection: Type III
General
- Ingress Protection: IP65
- Cooling: Fan
- Noise Level: <50dB
- Display: Colour Touch LCD
- Communication: RS485, Wi-Fi, CAN
- Dimensions: 490 × 670 × 265mm
- Weight: 50kg
