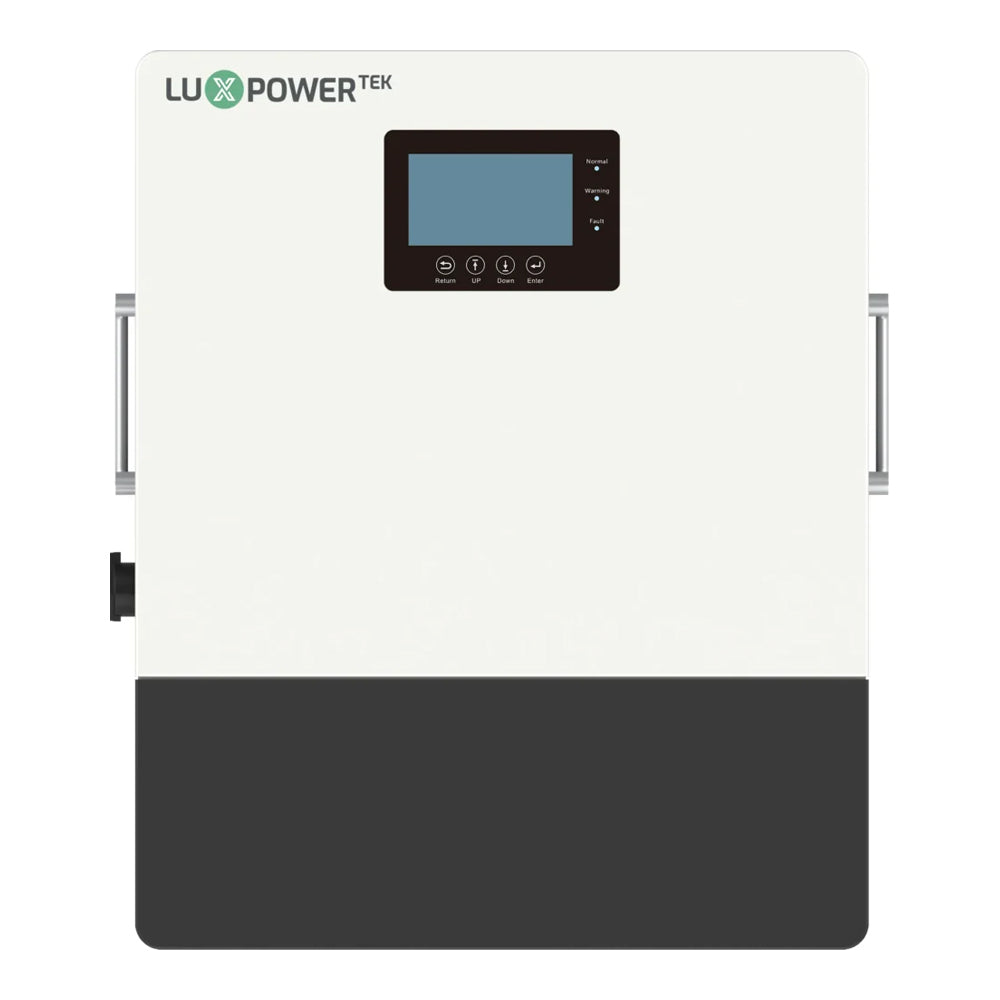

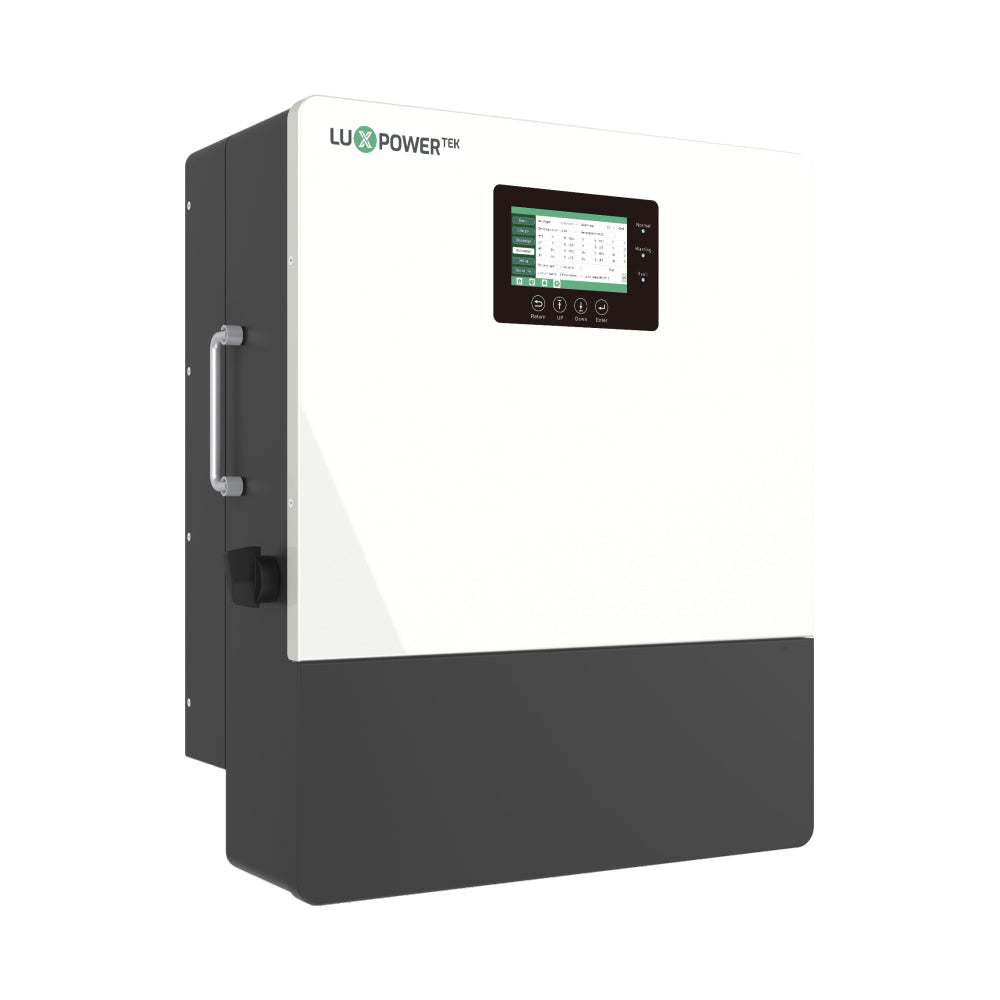

LuxPower LXP-LB-EU 10K Single-Phase Hybrid Inverter
Smart Energy. Powerful Performance.
The LuxPower LXP-LB-EU 10K is a high-performance single-phase hybrid inverter designed for advanced residential and light commercial energy systems. Delivering up to 10kW output, it seamlessly integrates solar, battery storage and grid power to maximise energy efficiency and ensure reliable power availability. Engineered for flexibility, the inverter supports multiple operating modes, including AC coupling and generator integration, making it ideal for both new installations and retrofit systems. With support for parallel operation, it can scale to meet growing energy demands while maintaining stable performance. A high charge and discharge capability ensures rapid battery response, while intelligent load management optimises power usage across connected devices. The integrated colour touch LCD provides intuitive system monitoring and its IP65 rated enclosure allows for both indoor and outdoor installation. Designed for ease of use and long-term reliability, the LXP-LB-EU 10K is a dependable solution for modern energy independence.
Features
- High Power Output - Delivers up to 10kW for residential and light commercial applications
- Fast Charge and Discharge - Up to 210A current for efficient battery performance
- Parallel Capability - Supports multiple units for scalable system expansion
- AC Coupling Support - Ideal for retrofitting existing solar installations
- Generator Integration - Dedicated interface for backup power systems
- Smart Load Control - Optimises energy distribution for improved efficiency
- Multiple Working Modes - Adapts to different energy supply scenarios
- UPS Functionality - Fast switching for uninterrupted power to critical loads
- Touch LCD Display - Colour screen for real-time monitoring and control
- IP65 Rated Enclosure - Suitable for indoor and outdoor installations
Specifications
Pv Input (Dc)
- Max. PV Input Power: 15,000W
- Max. PV Input Voltage: 480V
- MPPT Voltage Range: 120~480V
- Start-Up Voltage: 140V
- Number of MPPTs: 2
Battery
- Battery Type: Lithium-Ion and Lead-Acid
- Nominal Voltage: 48V
- Voltage Range: 40~60V
- Max. Charge and Discharge Current: 210A
- Max. Charge and Discharge Power: 10,000W
Ac Output (Grid)
- Rated Output Power: 10,000W
- Rated Voltage: 230V
- Frequency: 50/60Hz
- Max. Output Current: 43.5A
- Power Factor: 0.99
Ups Output
- Rated Output Power: 10,000W
- Rated Voltage: 230V
- Frequency: 50/60Hz
- Switching Time: <20ms
- Waveform: Pure Sinewave
Efficiency
- Max. Efficiency: 99.0%
- MPPT Efficiency: 99.9%
- Battery to Grid Efficiency: 94.0%
- EU Efficiency: 97.5%
Protection
- PV Reverse Polarity Protection: Yes
- Over Voltage and Over Current Protection: Yes
- Anti-Islanding Protection: Yes
- Leakage Current Protection: Yes
- Surge Protection: Type II
General
- Ingress Protection: IP65
- Cooling: Fan
- Noise Level: <50dB
- Display: Colour Touch LCD
- Communication: RS485, Wi-Fi, CAN
Environment
- Operating Temperature: -25~60°C
- Humidity: 0~100%
- Altitude: <2000m
