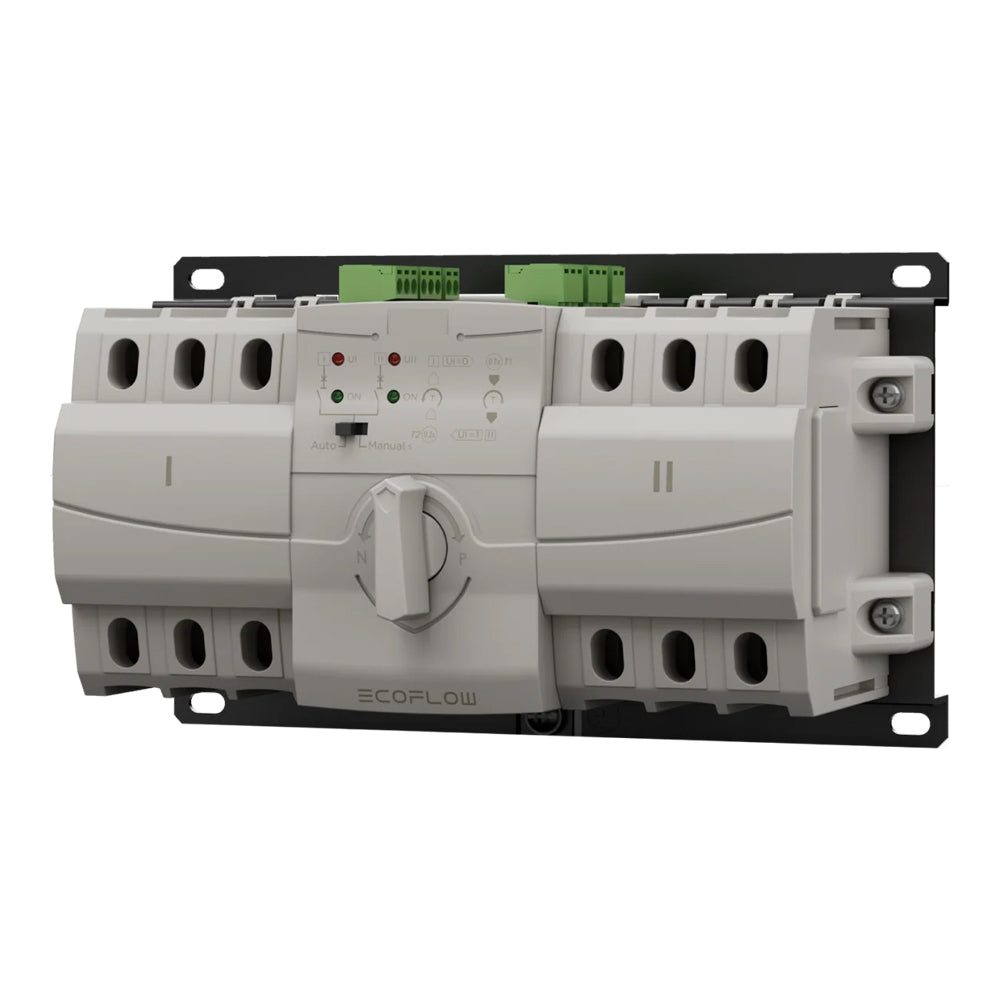

EcoFlow Automatic Transfer Switch
Seamless Power During Loadshedding and Power Outages.
The EcoFlow Automatic Transfer Switch provides intelligent automatic switching between utility power and backup power for uninterrupted operation during loadshedding and outages. Designed for use with compatible EcoFlow portable power stations, the ATS automatically transfers connected circuits to backup power when mains power fails and restores utility power once electricity returns. With fast 0.2 second switching, automatic and manual operating modes and integrated installation support, the EcoFlow Automatic Transfer Switch delivers reliable home backup power management for essential appliances and circuits.
Features
- Automatic Power Switching - Automatically transfers connected loads between utility and backup power
- Fast 0.2 Second Transfer Time - Minimises interruption during power failures and loadshedding and power outages
- Compatible With EcoFlow Power Stations - Designed for seamless integration with EcoFlow backup systems
- Automatic and Manual Modes - Allows automatic operation or manual source selection
- Integrated Installation Design - Compact form factor for professional electrical installations
- Dual Power Source Support - Supports main and backup power input connections
- Intelligent Power Monitoring - Monitors incoming power supply status continuously
- Indoor Electrical Panel Integration - Designed for indoor circuit breaker panel installations
Specifications
- Controller Type: Type-A Controller
- Operating Voltage: AC185V-280V Single Phase
- Rated Voltage: AC230V
- Rated Current: 63A
- Poles: 2P
- Frequency: 50Hz
- Operating Modes: Automatic and Manual
- Transfer Delay: 0.2 Seconds
- Return Delay: 0.2 Seconds
- Power Consumption: <5W

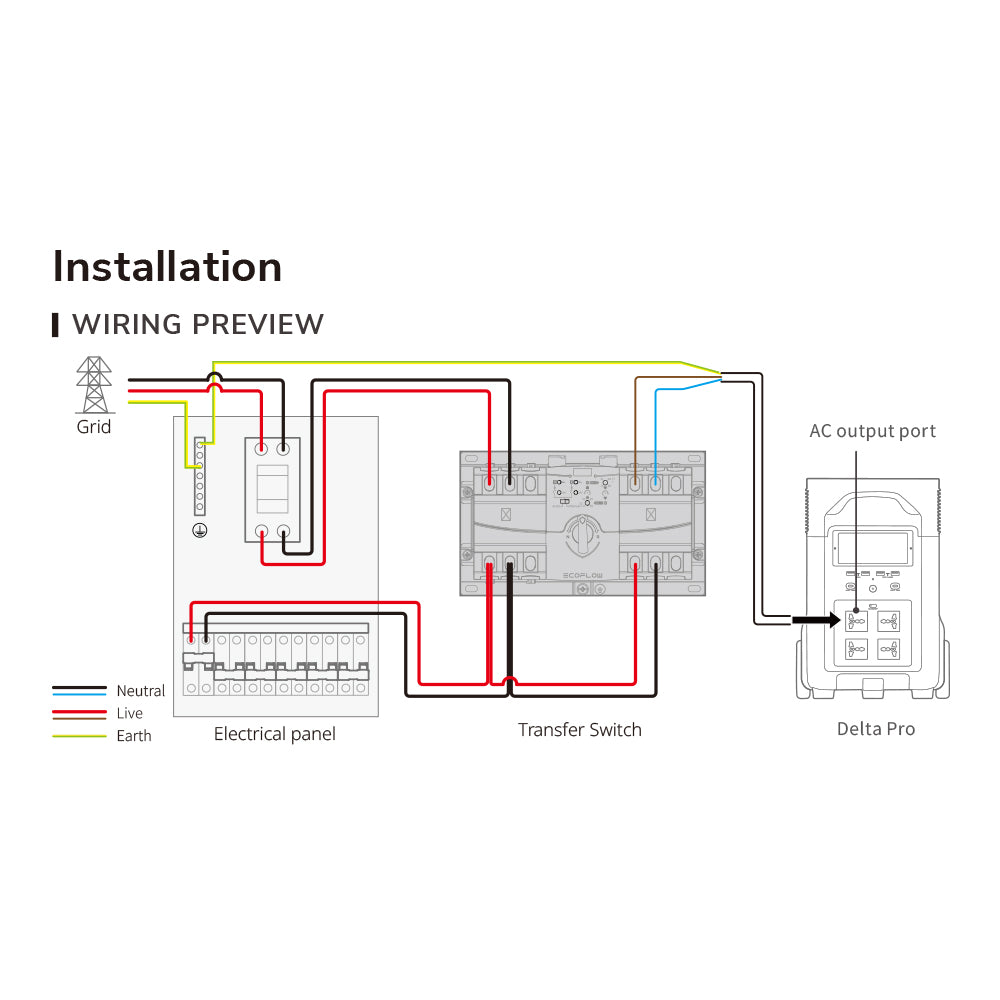

- Installation Method: Qualified Professional Electricians
- Operating Temperature: -5°C to 40°C
- Dimensions: 212.5 × 125 × 121mm
- Mounting Dimensions: 193.5 × 113mm
- Short-Circuit Switching Capacity: 7.65kA
- Standard Compliance: IECEN 60947-6-1
Notes
- Installation must be completed by a licensed electrician or qualified professional
- Designed for indoor electrical panel installations only
- High-power appliances such as stoves, geysers and pool pumps may need exclusion from backup circuits
- Compatible EcoFlow portable power station required
- Protective enclosure recommended for safe installation
