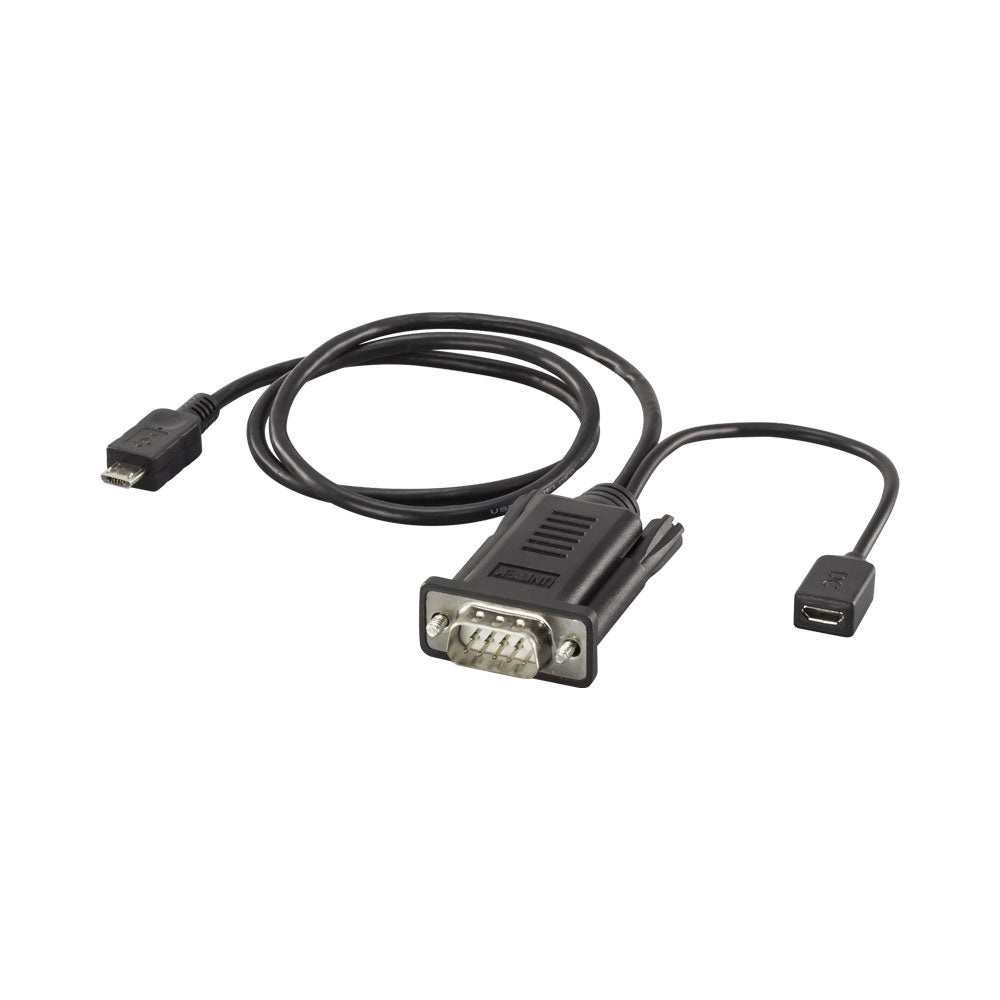

UNITEK MICRO USB TO RS232 SERIAL CABLE (Y-1051)

Features

• Micro USB interface
• Supports Android tablet or smart phone debugging anytime when connection
• Realise industrial control on Android interface, more user-friendly
• Standard RS232 serial interface, support remote wake-up and power management function
• Bus powered, no need external power supply
• Equipped with micro USB charging port, which provides auxiliary power supply for mobile devices
• Efficient shield, strong anti-interference performance, good signal transmission

Specifications

• 1 x DB9 Male (RS232 Port)
• 1 x Micro USB Male
• 1 x Micro USB Female For Power
• Single chip USB to selectable interface
• Suitable for use on any Android platform supporting Android Open Accessory Mode (Typically 3.1 onwards, however some platforms may port Open Accessory Mode to version 2.3.4)
• 12MHz oscillator using external crystal
• +3V3 Single Supply Operation with 5V tolerant inputs
• USB2.0 Full Speed compatible
• Extended operating temperature range; -40⁰C to 85⁰C
• Supports Android 3.1 or higher

Shipping Dimensions

• Weight: 0.30 kg
