10 ports via one Thunderbolt 5 connection | 8K@60Hz multi-display output | 140W host charging | Up to 120Gbps data transfer | Gigabit Ethernet included
Quick Specs
- Connect everything through a single Thunderbolt 5 cable — 10 ports, one compact dock on your desk.
- Experience blazing data transfers at theoretical speeds of up to 120Gbps via Thunderbolt 5.
- Achieve stunning 8K@60Hz visuals across multiple displays via Thunderbolt 5 and DisplayPort outputs.
- Keep your laptop fully charged with up to 140W of Power Delivery back to your host device.
- Access SD and microSD cards instantly with built-in SD 3.0 card readers delivering up to 170MB/s.
One Cable. Ten Connections. Total Command of Your Workspace.
The UGREEN Revodok Maxidok 10-in-1 Thunderbolt 5 Docking Station is built for professionals who demand both performance and order at their desk. Whether you're running a multi-monitor creative setup, managing large file transfers, or keeping a video call steady on a wired connection, this dock turns a single Thunderbolt 5 cable into a complete workstation — compatible with Windows 11 (23H2 or later) and macOS 15 or later.
Thunderbolt 5 Speed — No Waiting, No Bottlenecks
Tired of watching progress bars crawl while moving large video projects or design files? The Thunderbolt 5 host connection delivers theoretical transfer rates of up to 120Gbps, ensuring that even the most demanding workflows move at the speed you need. Two additional Thunderbolt 5 output ports extend that bandwidth to compatible peripherals and displays, so performance is never compromised further down the chain.
Crystal-Clear 8K Visuals Across Multiple Displays
The dock supports output up to 8K@60Hz through both the Thunderbolt 5 output ports and the dedicated DisplayPort, giving you the flexibility to drive high-resolution displays with sharp detail and ultra-smooth visuals. Multi-display configurations are supported on both macOS and Windows, making it straightforward to build the kind of extended screen real estate that makes multitasking genuinely productive.
Everything Else You Need — All in One Place
Three USB-A ports running at 10Gbps each handle fast storage and everyday peripherals without slowing each other down. Gigabit Ethernet via the RJ45 port provides stable, reliable wired networking for downloads, streaming, and collaboration. Built-in SD and microSD (TF) card slots — both running SD 3.0 at up to 170MB/s — let photographers and video editors pull footage quickly without reaching for a separate reader. And with up to 140W of Power Delivery back to your host laptop, your machine stays charged and ready throughout the working day.
Features
- Thunderbolt 5 host connection with theoretical transfer speeds of up to 120Gbps
- Two Thunderbolt 5 output ports supporting up to 8K@60Hz display output
- One DisplayPort output supporting up to 8K@60Hz
- Multi-display support on macOS and Windows for extended workflows
- Up to 140W Power Delivery to keep your host laptop charged

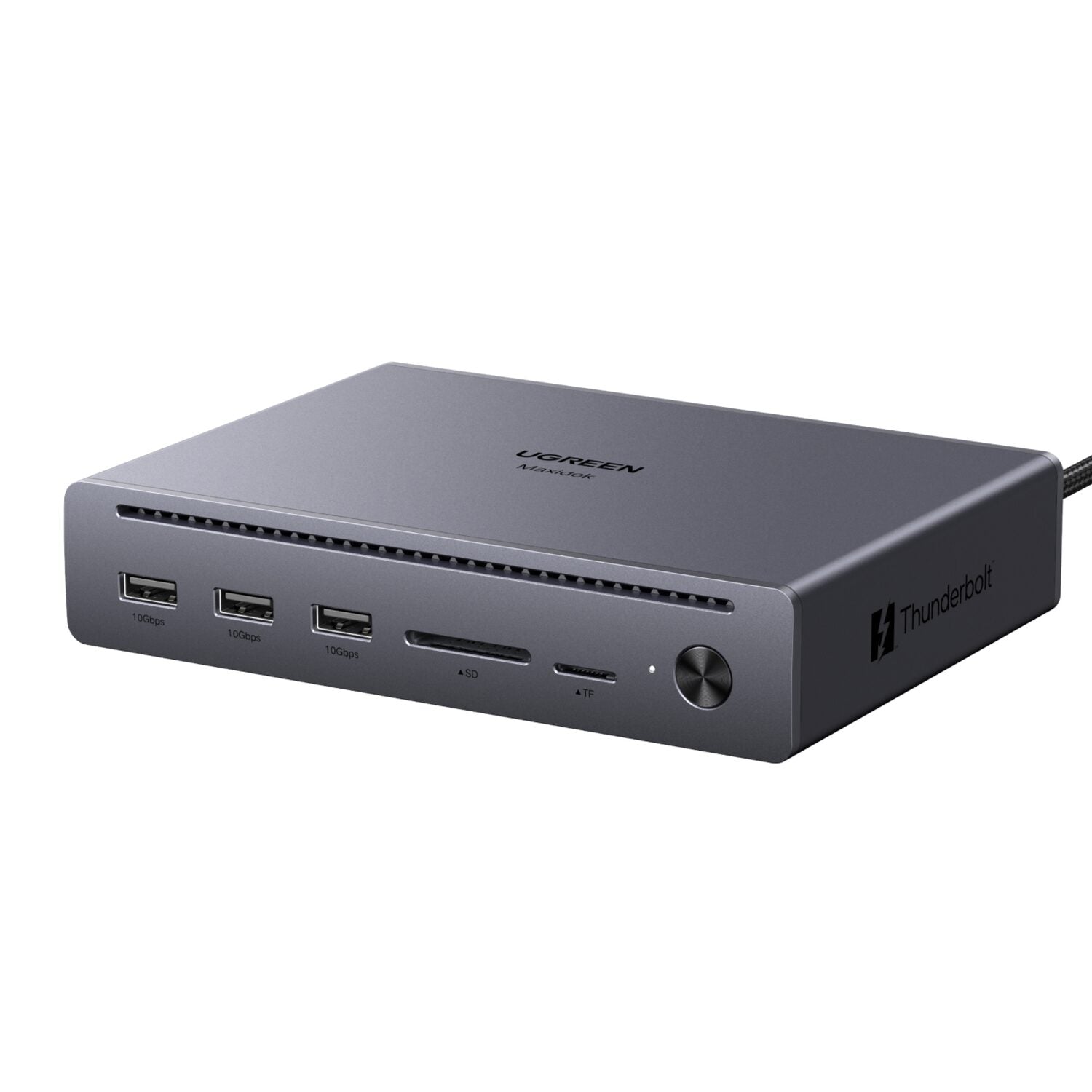

- Three USB-A ports each delivering up to 10Gbps transfer speeds
- Gigabit Ethernet (RJ45) with 10/100/1000Mbps auto-negotiation
- Built-in SD and microSD (TF) card slots — SD 3.0, up to 170MB/s
- Compatible with Windows 11 (23H2 or later) and macOS 15 or later
Specifications

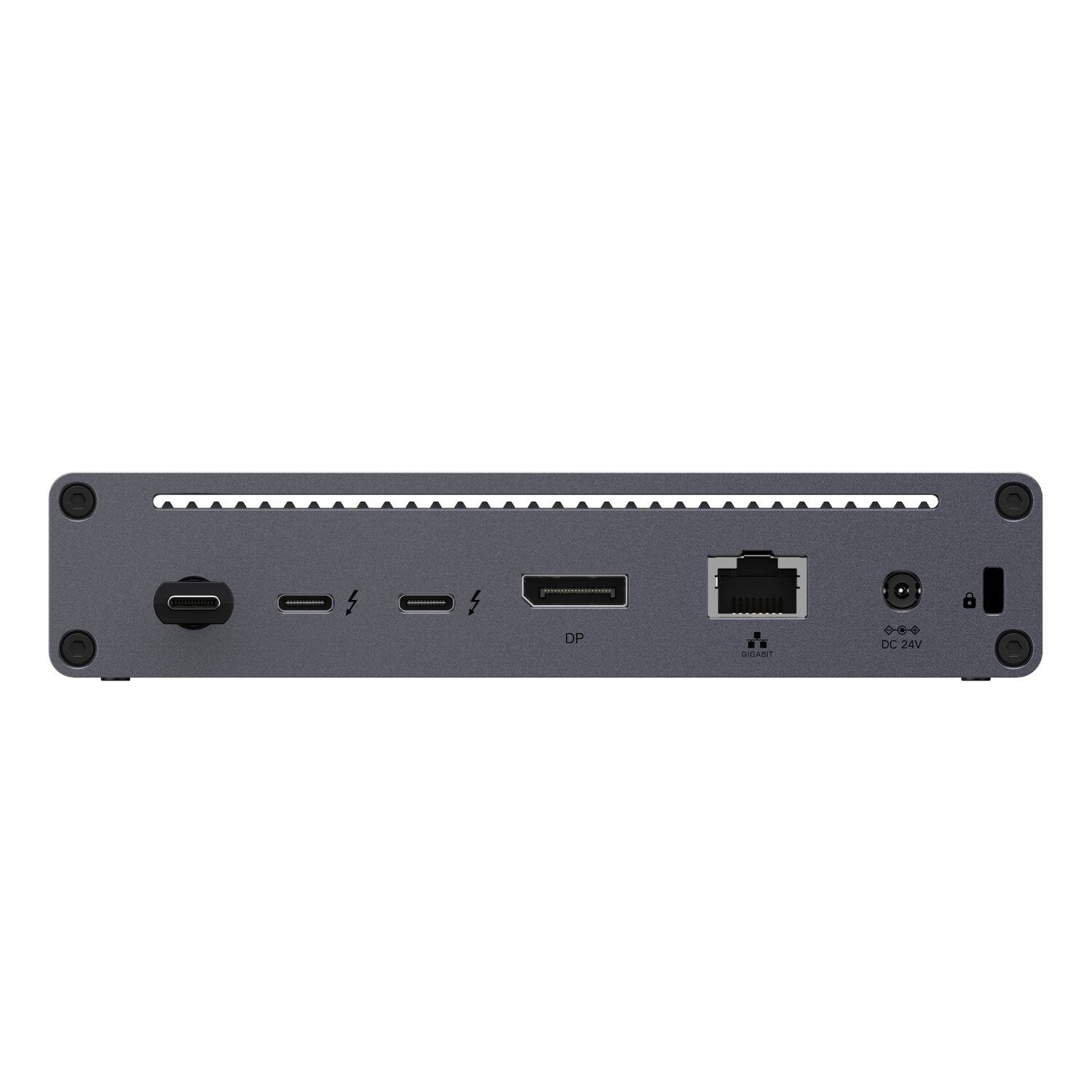

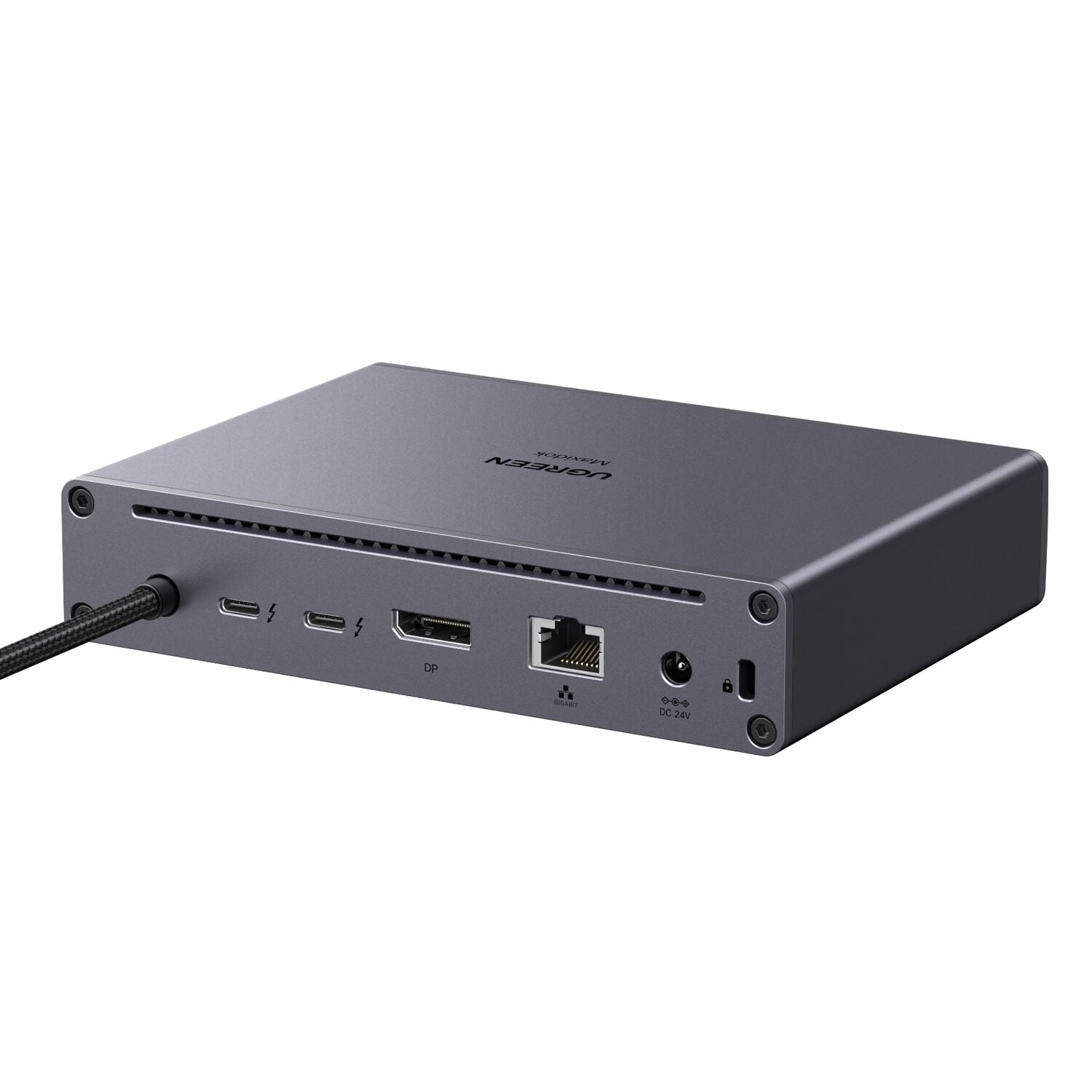

- Host Connector: Thunderbolt 5
- Total Ports: 10
- Port Selection:
- 1x Thunderbolt 5 (host input)
- 2x Thunderbolt 5 (output)
- 1x DisplayPort
- 3x USB-A (10Gbps)
- 1x RJ45 Ethernet
- 1x SD Card Slot
- 1x TF (microSD) Card Slot
- Max Display Output: 8K@60Hz
- Power Delivery to Host: 140W
- Ethernet Speed: 10/100/1000Mbps
- Colour: Space Grey
- Warranty: 24 months
What's in the Box
- UGreen 10-in-1 Thunderbolt 5 Docking Station x1
Why UGREEN
UGREEN has built its reputation on engineering connectivity solutions that keep pace with the most demanding modern workflows. From Thunderbolt docking stations to high-speed cables and chargers, every product is designed to remove friction and let you focus on what matters. The Revodok Maxidok range represents UGREEN's commitment to bringing professional-grade performance to professionals who refuse to compromise.
