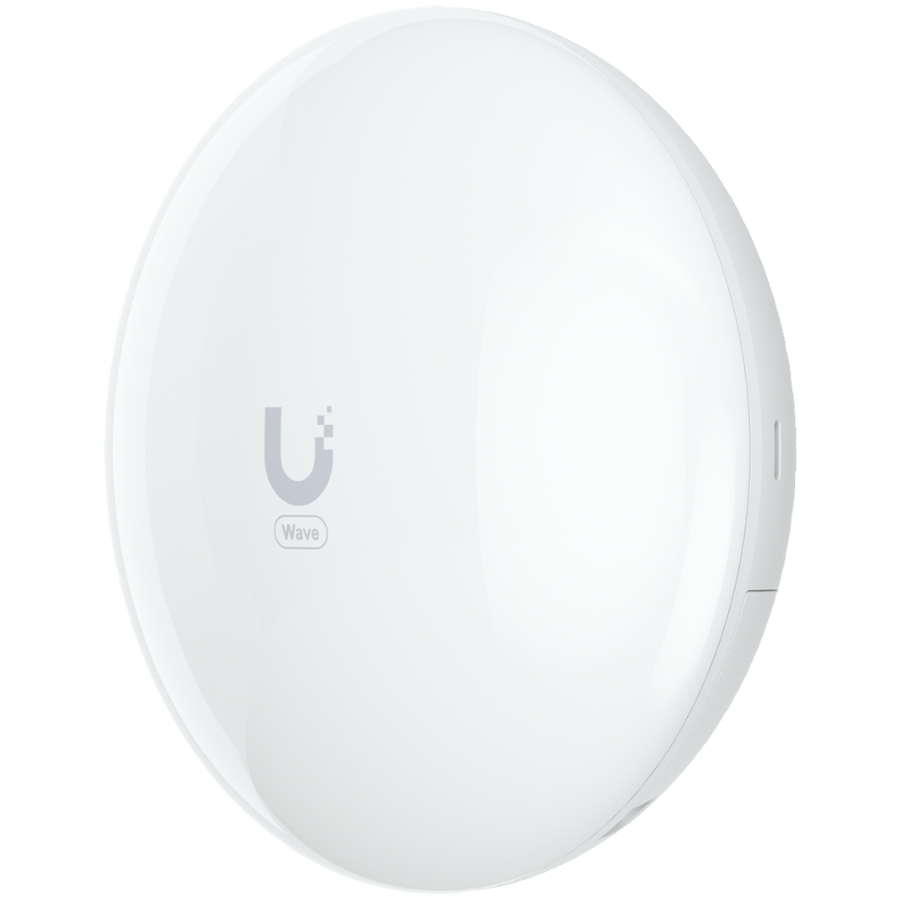

Ubiquiti Wave-Pico-EU Lightweight, compact 60 GHz PtMP station powered by Wave Technology
-
Brand: UBIQUITI
-
Category: Networking - Wireless Access Point
-
SKU: AS-WAVE-PICO-EU
-
EAN: 810084693872
-
Warranty: 12 months
Specifications
| CPU |
ARM Cortex-A53 |
| Internal Clock Rate |
1 GHz |
| RAM |
512 MB DDR3 SDRAM |
| Product Type |
Networking - Wireless Access Point |
| Local Area Network Architecture |
Wi-Fi |
| Number of Ports |
1 |
| Data Link Protocol Supports |
1 Gbps |
| Device Location |
External |
| Network/Transport Protocol |
NTP
SNMP |
| Wireless Frequency |
5 GHz up to 800 Mbps |
| Wi-Fi Band Frequency |
5.1-5.8 GHz/60 GHz |
| Line Modulation Type |
16QAM
64QAM
BPSK
QPSK
256QAM
1024QAM |
| Max. Range Open Space |
1.3 km |
| Status Indicator |
LED indication of device status |
| Encryption Algorithm |
WPA2-PSK
AES |
| Networking Compliant Standards |
IEEE 802.11ax |
| Networking Features |
Power over Ethernet (PoE)
Pole Mounting (Adjustable)
PtMP Station, PtP modes
Bridge/Router mode |
| Certifications |
FCC, IC, CE |
| Amplification |
27.7 dBi |
| PoE in |
1 (RJ-45) |
| PoE Adapter |
External
DC 48 V, min 0.5 A |
| Power Consumption Operational |
10 W |
| External Color |
White |
| Included Accessories |
PoE Adapter |
| Protection From Enviromental Effects |
Weather Resistant
Wind Survivability up to 200 km/hr |
| Protection Standarts |
IPX6 |
| Built-in Devices |
Reset Button |
| Depth (mm) |
152.1 mm |
| Height (mm) |
55.8 mm |
| Width (mm) |
152.1 mm |
| Nominal Weight |
0.347 kg |
| Maximum Operating Ambient Temperature |
60 °C |
| Maximum Operating Humidity |
95 % |
| Minimum Operating Ambient Temperature |
-40 °C |
| Minimum Operating Humidity |
5 % |
| Warranty Products Returnable |
Yes |
| Warranty Term (month) |
12 month(s) |
| Warranty Validation Criteria |
Serial Number |
| Pack Length (mm) |
250 mm |
| Pack Width (mm) |
185 mm |
| Pack Height (mm) |
120 mm |
| Pack Weight Brutto (kg) |
1.059 kg |
| Pack Weight Netto (kg) |
0 kg |
| Pieces in pack |
1 |
| Box Length (mm) |
512 mm |
| Box Width (mm) |
388 mm |
| Box Height (mm) |
277 mm |
| Retail Packaging Net Weight Plastic |
0 kg |
| Packs in Box |
8 |
| Package Type |
Retail |
| EAN Code |
810084693872 |
| Economic operator in EU / authorized representative |
Ubiquiti International Holding B.V. |
| Postal address |
Ekkersrijt 3102. Son en Breugel, 5692 CC., The Netherlands |
| Electronic address |
legal@ui.com |
