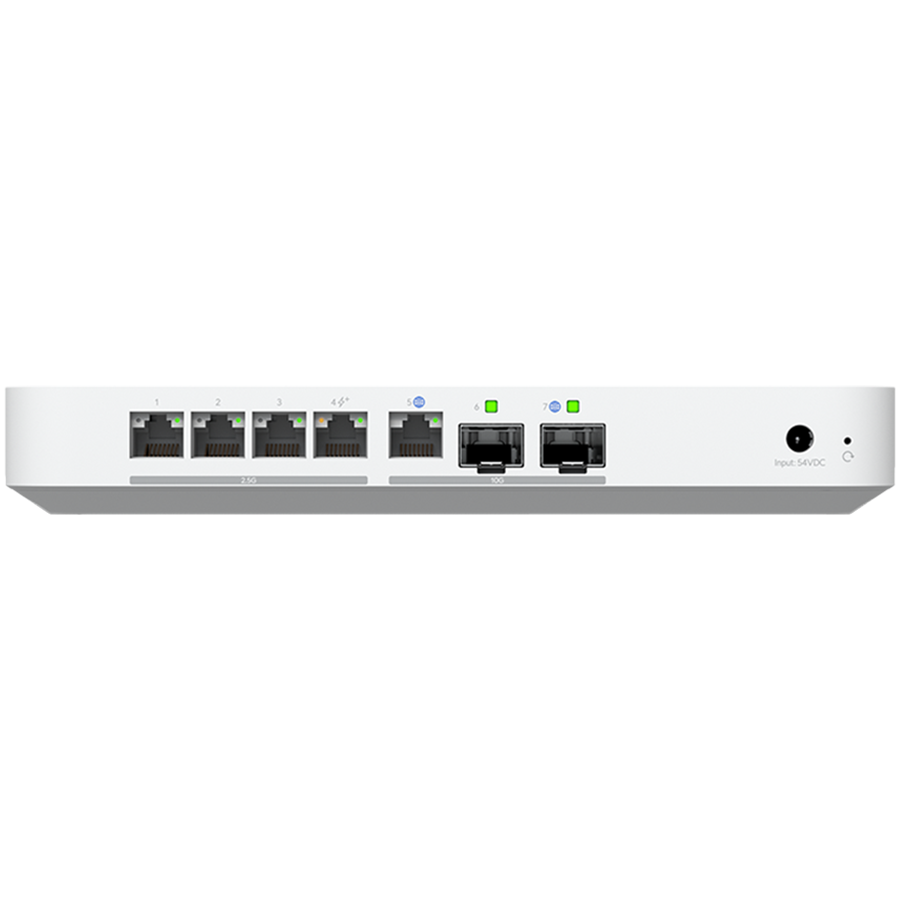

Ubiquiti UXG-Fiber Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch, 5 Gbps routing with IDS/IPS, 10G SFP+ and (1) 10 GbE RJ45 WAN port, 10G SFP+ LAN port
-
Brand: UBIQUITI
-
Category: Networking - Router
-
SKU: AS-UXG-FIBER-EU
-
EAN: 810177161530
-
Warranty: 12 months
Specifications
| Product Type |
Networking - Router |
| Network Device Type |
Router/Gateway |
| Data Link Protocol Supports (New) |
LAN + Bluetooth |
| CPU |
ARM Cortex-A73 |
| CPU Core Quantity |
4 |
| Internal Clock Rate |
2.2 GHz |
| Installed RAM |
2 GB |
| WAN |
1 x 10GbE SFP+
1 x 10GbE RJ-45 |
| LAN |
1 x SFP+
4 x RJ-45 |
| MAC Address Table Size |
4K |
| Routing Protocol |
OSPF |
| Switching Layers |
Layer 7 |
| Protocols (OSI Model) |
IPsec
L2TP
QoS |
| Application Layer |
mDNS |
| Authentication, Authorization, Accounting (AAA Protocol) |
RADIUS |
| Firewall Functions and Protocols |
NAT Support
Web Content Filtering
Ad Blocking
Intrusion Prevention System (IPS)
Intrusion Detection System (IDS) |
| Router Features |
Power over Ethernet plus (PoE+)
Deep Packet Inspection
WAN Load Balancing
Integrated 4-port Switch |
| Device Location |
External |
| Status LED Indicators |
LED indication of device status |
| Certifications |
CE, FCC, IC |
| Built-in Devices |
Reset Button |
| Included Accessories |
Power Adapter |
| Cable Included |
Power Cable |
| WAN |
1 (SFP+), 1 (RJ-45) |
| LAN |
1 (SFP+) |
| LAN/WAN |
4 (RJ-45) |
| Power Device Location |
External |
| Minimum Input Current |
1.1 A |
| Minimum Input Voltage |
54 V |
| Minimum Power Consumption |
25 W |
| Width (mm) |
212.8 mm |
| Height (mm) |
30 mm |
| Depth (mm) |
127.6 mm |
| Nominal Weight |
0.605 kg |
| External Color |
White |
| Maximum Operating Ambient Temperature |
40 °C |
| Maximum Operating Humidity |
95 % |
| Minimum Operating Ambient Temperature |
0 °C |
| Minimum Operating Humidity |
5 % |
| Warranty Products Returnable |
Yes |
| Warranty Term (month) |
12 month(s) |
| Warranty Validation Criteria |
Serial Number |
| Warranty Term Notes |
24 months - for EU |
| Pack Length (mm) |
240 mm |
| Pack Width (mm) |
220 mm |
| Pack Height (mm) |
80 mm |
| Pack Weight Brutto (kg) |
1.5125 kg |
| Pack Weight Netto (kg) |
0.32 kg |
| Pieces in pack |
1 |
| Box Length (mm) |
550 mm |
| Box Width (mm) |
400 mm |
| Box Height (mm) |
330 mm |
| Retail Packaging Net Weight Plastic |
0.32 kg |
| Packs in Box |
8 |
| Package Type |
Retail |
| EAN Code |
810177161530 |
