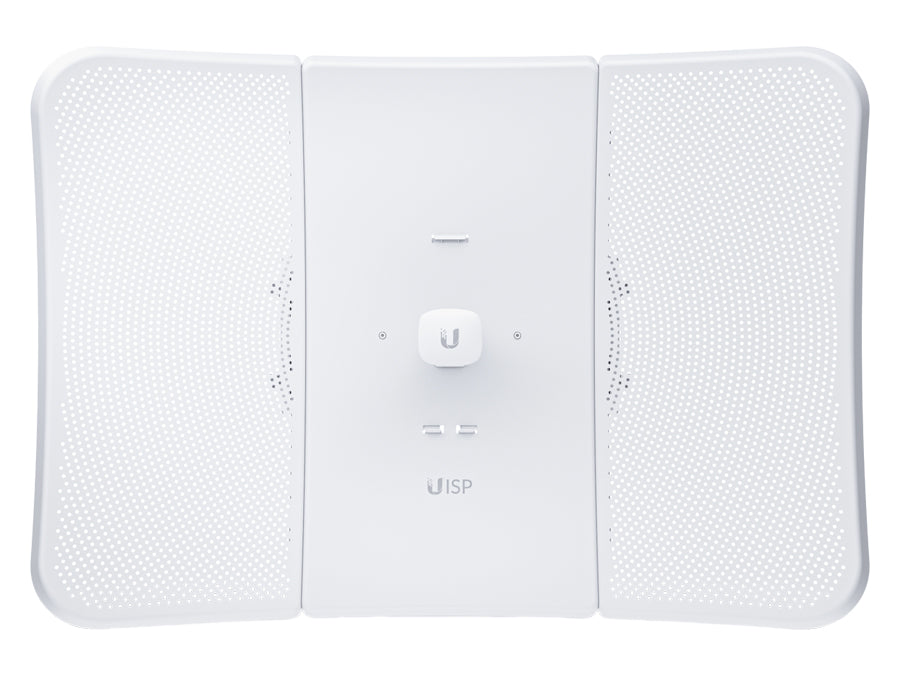

Ubiquiti's LBE-529ACXR is an airMAX AC 5GHz radio with a 29dBi antenna. It is designed as a lightweight, long-range, CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP mobile app and network management platform.
| Specifications |
Antenna Gain: 29dBi
Beam-width: 7.5°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22-26V
USB Ports: None
Dimensions: 747 x 525 x 347 mm
Weight: 3.2 kg
|
