Product Description

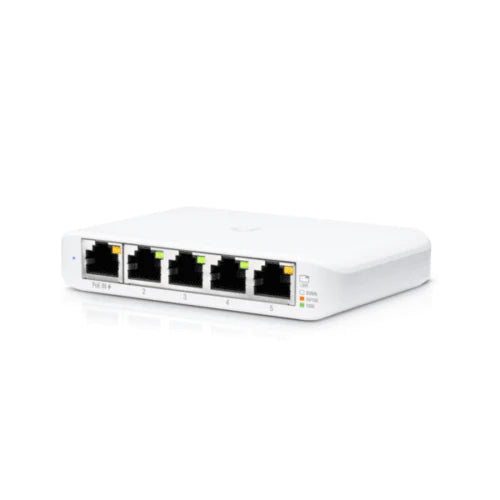

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Managed by UniFi Network Controller version: 5.12.5 or higher
Specifications
| USW-FLEX-MINI |
| Dimensions |
107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83") |
| Weight |
150 g
(5.29 oz) |
| Networking Interfaces |
(5) 10/100/1000 Mbps RJ45 Ports |
| PoE In Interface |
802.3af/at PoE (Pins 1, 2+; 3, 6-) |
| Max. Power Consumption |
2.5W |
| Power Method |
USB Type C, 5V 802.3af/at
PoE (44 - 57VDC, 0.05 - 0.04A) |
| Power Supply |
5V, 1A Power Adapter* |
Voltage Range
USB Type C
802.3af/at PoE
|
4.7 - 5.2VDC
44 - 57VDC |
LEDs
System
RJ45 Data Ports
|
Status
Link/Speed/Activity |
| ESD/EMP Protection |
± 16kV Air, ± 12kV Contact |
| Operating Temperature |
-5 to 45° C (23 to 113° F) |
| Operating Humidity |
10 to 90% Noncondensing |
| Certifications |
CE, FCC, IC |
