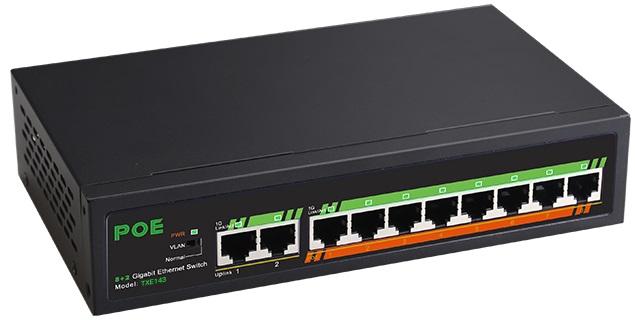

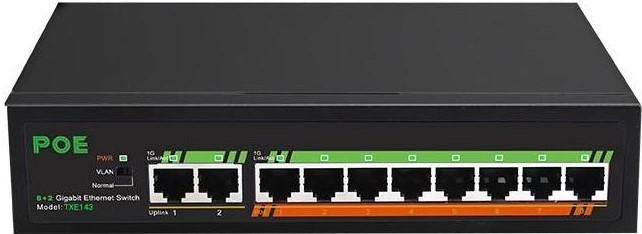

8+2 GIGABIT POE SWITCH - TXE143
8-Ports 10/100/1000Mbps PoE + 2 Ports
10/100/1000Mbps Uplink Unmanaged Ethernet Switch
Hardware Specification
Model Name: TXE323
Chipset: AN8855H+TMI7608
Standards and Protocols
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
IEEE802.3az, IEEE802.1q,IEEE802.3at, IEEE802.3af
Interface: 10 x 10/100Mbps Auto -Negotiation Ports
Network Media
10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)
1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)
Transfer Method: Store-And-Forward
Switching Capacity: 20Gbps
Packet Forwarding Rate:14.88Mpps
PoE Ports(RJ45): 8 x PoE Ports Compliant With 802.3at/af
Power Pin Assignment: 1/2(+),3/6(-)
PoE Budget: 90W
Indicators
Per Device: Power
Per Port: Link/Activity
Power Supply: 180 - 240VAC, 50/60Hz
Power Consumption: Maximum(PoEon): 95W (220V/50Hz)
Dimensions ( W x D x H ): 220 x 160 x 40mm
Environment
Operating Temperature: 0? - 45?
Storage Temperature: -40?- 70?
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
2 PIN Powercord Included
