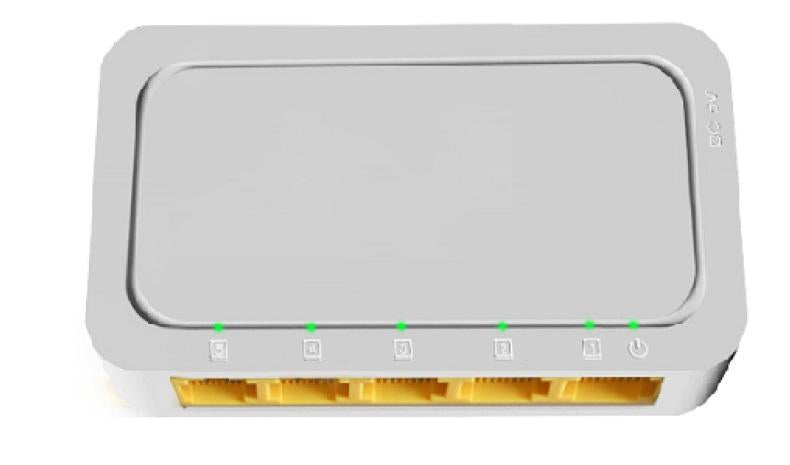

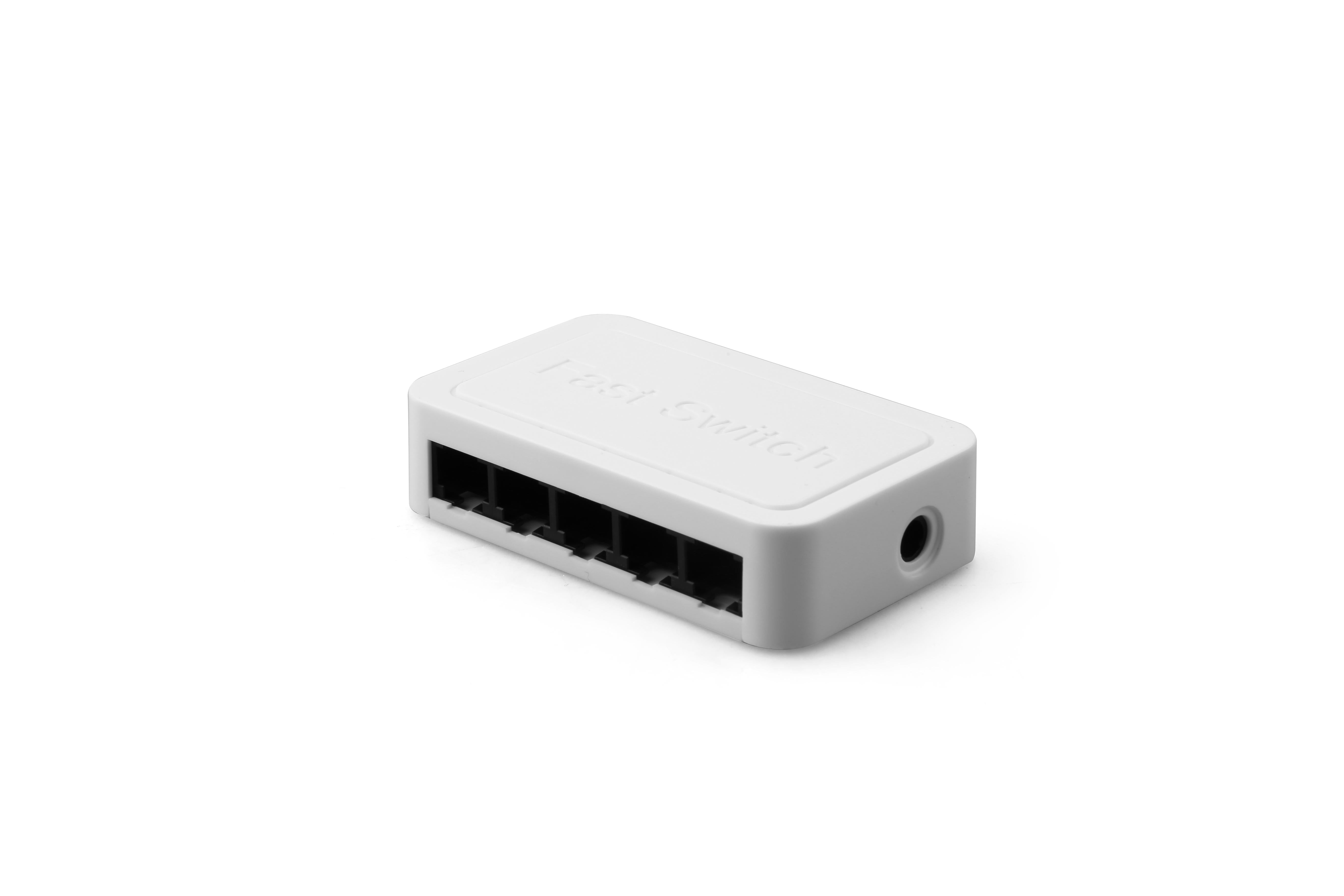

MLINK 5 PORT 10/100 SWITCH - TXE070
5-Ports 10/100Mbps Unmanaged Switch
Description
TXE070 Is A 10/100Mbps Non-Management Switch Which Provides 5 10/100Mbps RJ45 Ports
And Supports Wire Speed Forwarding Of All Ports
It Supports IEEE802.3az Energy Efficient Ethernet (EEE) Technology
IEEE802.3x Full Duplex flow control function and Half Duplex back pressure flow control function
TXE070 has a Durable Design, quiet operation, simple and Convenient Use
No Configuration, Plug and Play, very suitable for Small Office
Home Office (SoHo), Small And Medium Business (SMB) Environment
Features
Comply With IEEE802.3, IEEE802.3ii, IEEE 802.3u, IEEE802.3x IEEE802.3az Ethernet Standards
Support 5 x 10/100Mbps Auto-Negotiation RJ45 Ports,
Support Auto MDI/MDIX
Supports IEEE802.3x Flow Control Tor Full-Duplex Mode And Backpressure For Half-Duplex Mode
Supports IEEE802.3az Energy Efficient Ethernet (EEE) Technology
1K Entry MAC Address Table of the Switch with Auto-Learning and Auto-Aging
LED Indicators for Monitoring Port Link / Activity
External Power Supply, Exquisite Plastic Design, suitable for Desktop Install and Use
Specification
Model Name: TXE070
Chipset: IP175G
Standards And Protocols: IEEE802.3, IEEE802.3ii, IEEE 802.3u, IEEE802.3x, IEEE802.3az
Interface: 5 x 10/100Mbps Auto-Negotiation Ports
Network Media :10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
100Base-Tx: UTP Category 5, 5e cable (Maximum 100m)
Transfer Method: Store-and-Forward
MAC Address Table: 1K
Switching Capacity: 1Gbps
Packet Forwarding Rate: 744Kpps
Indicators
Per Device Power
Per Port Link/Activity
Power Supply DC:5V,0.5A External Power
Power Consumption Maximum: 1.3W
Dimensions (W x D x H): 88.2 x 52.7 x 21.8mm
Environment
Operating Temperature: 0 - 45
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% Non - Condensing
Storage Humidity: 5% - 90% Non-Condensing
