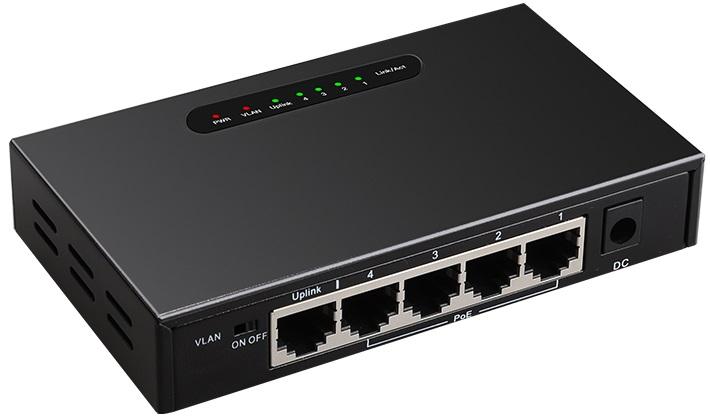

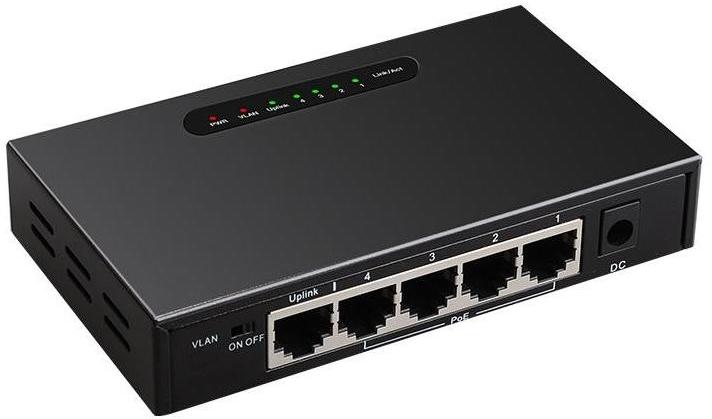

4+1 GIGABIT POE SWITCH - TXE038
5-Port 10/100/1000Mbps Unmanaged PoE Switch (4-Port PoE)
Hardware Specification
Model Name: TXE320
Chipset: AN8855H+TMI7604R
Standards And Protocols
IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x
IEEE802.1q, IEEE802.3az, IEEE802.3at, IEEE802.3af
Interface: 5 x 10/100Mbps Auto
Network Media
10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)
1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)
Transfer Method: Store-And-Forward
MAC Address Table: 2K
Switching Capacity: 10Gbps
Packet Forwarding Rate: 7.44Mpps
PoE Ports (RJ45): 4 x PoE Ports Compliant With 802.3at/af
Power Pin Assignment: 1/2(+),3/6(-)
PoE Budget: 60W
Indicators
Per Device: Power, VLAN
Per Port: Link/Activity
Power Supply: DC 52V,1.25A External Power
Power Consumption: Maximum (PoEon): 63W (220V/50Hz)
Dimensions (W x D x H): 123 x 70 x 23mm
Environment
Operating Temperature: 0? - 45?
Storage Temperature: -40?- 70?
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
2 PIN Powercord Included
