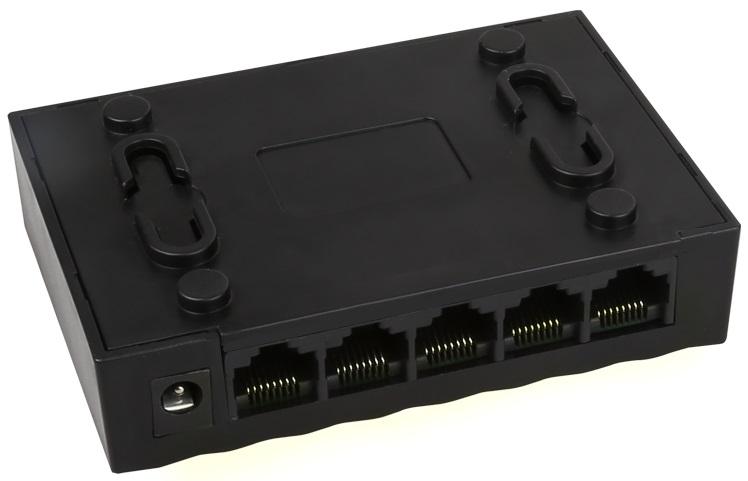

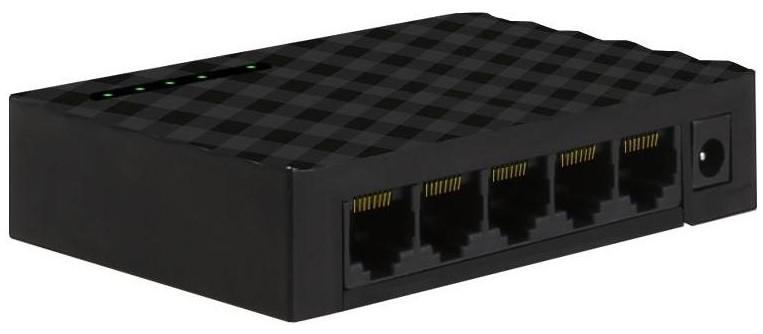

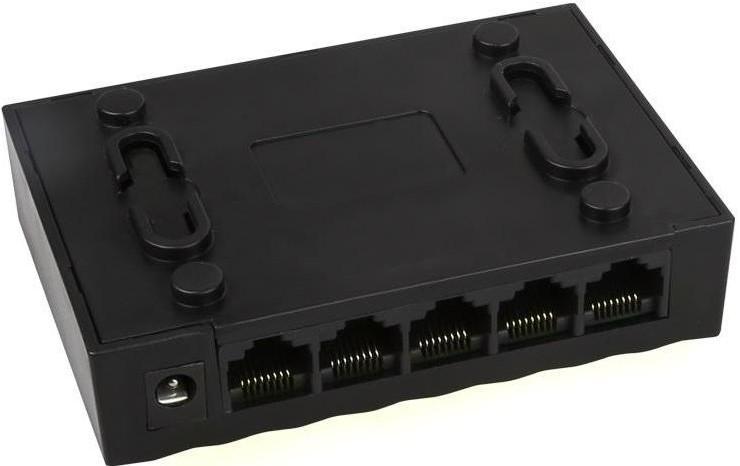

5 PORT GIGABIT SWITCH - TXE034
5-Port 10/100/1000 Mbps Ethernet Switch
Overview
With The TXE034 Gigabit Ethernet Switch
You Can Easily Expand Your Business
Or Home Network By Adding More Computers And Devices
Each Achieving Speeds Up To 2000 Mbps Per Port In Full-Duplex Mode
Specifications
Features & Performance Model: TXE034
Standards And Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface: 5 10 / 100 / 10000Mbps RJ45 Ports, Auto Negotiation / Auto MDI / MDIX
Forwarding Mode: Store-And-Forward
Network Media
10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
100BASE-TX/1000BASE-T: UTP Category 5, 5e Or Above Cable (maximum 100m)
Power Supply External Power Adapter
(Output: 5VDC/1A)
Dimensions: 100 x 70 x 25 mm
Weight: 76g
LED: Power, Link / Act
Fanless: Yes
Performance
Switching Capacity: 10Gbps
Packet Filtering / Forwarding Rate: 1,488,000 pps for 1000M
148,800 pps for 100M
14,880 pps for 10M
MAC Address Table: 2K
Environment
Operating Temperature: 0 C- 40 C(32 F-104 F)
Storage Temperature: -40 C-70 C(-40 F- 158 F)
Operating Humidity: 10% - 90%RH Non - Condensing
Storage Humidity: 5% - 90%RH -Non - Condensing
