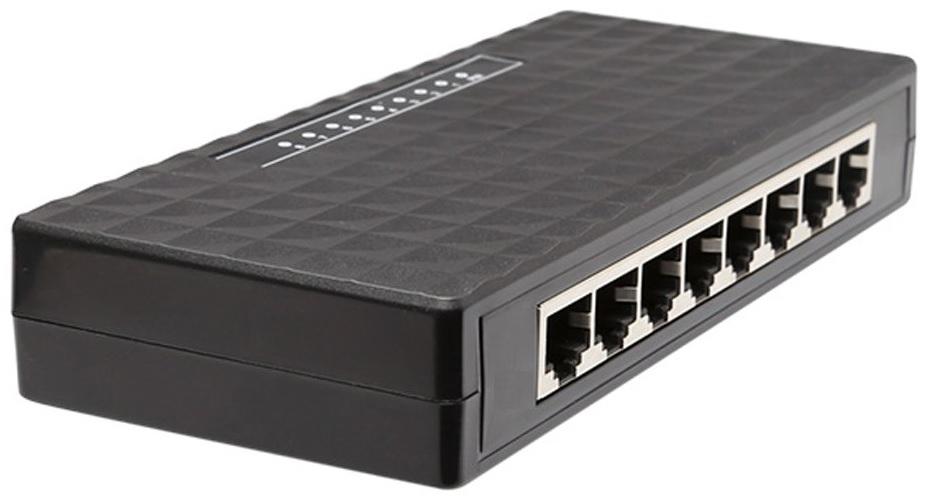

8 PORT 10/100 NETWORK SWITCH - TXE020
Product specification
Model number: TXE020
Chipset: IP178G
Port number: 8 port 10/100M Auto MDI-MDIX RJ45
Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3 x IEEE 802.3az
Network Media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data Rate: 10/100M
Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator: 10/100Mbps(Link/Act),Power
Dimension: 159 x 71 x 30mm
Power Input: DC5V/500mA
Power Consumption: Max1.5W
Environment
Operating Temperature: 0 - 40
Relative Humidity: 10%-90% (non-condensing)
Storage Temperature: -40 - 70
Relative Humidity: 5%-90% (non-condensing)
Chipset Feature :
8 port Embedded 10/100 PHY Switch Controller
Support 8 100BaseTX or 6 100Base TX + 2 FX
Support Auto MDI-MDIX function
Power Management Tool (PWMT)
APS, auto-power saving while Link-off
IEEE 802.3az protocol based power saving & 10Mbps Te for 10Mbps
WOL+, light traffic power saving - PWD, force-off power saving
Support Auto Factory Test (AFT)
Single Power 3.3V supply
Built in Vcore Regulator
Two Priority queues per port
Support 802.1p & DiffServ based QoS
QoS
Port base
802.1p
IP DiffServ IPV4/IPV6
TCP/UDP port number
Pins configure ports priority (VIP port)
Support max forwarding packet length 1552/1536 bytes option
Support port mirror function
Support 1k MAC address Support broadcast storm protection
Support port trunking (LACP)
Support 16 VLAN (IEEE Std 802.1q)
Port-based/Tagged-based VLAN
Support insert, remove tag
Built-in 50 ohm resistors for simplifying BOM
85nm Process
Package and operation temperature
IP178G: 68 Pin QFN, 0 - 70
