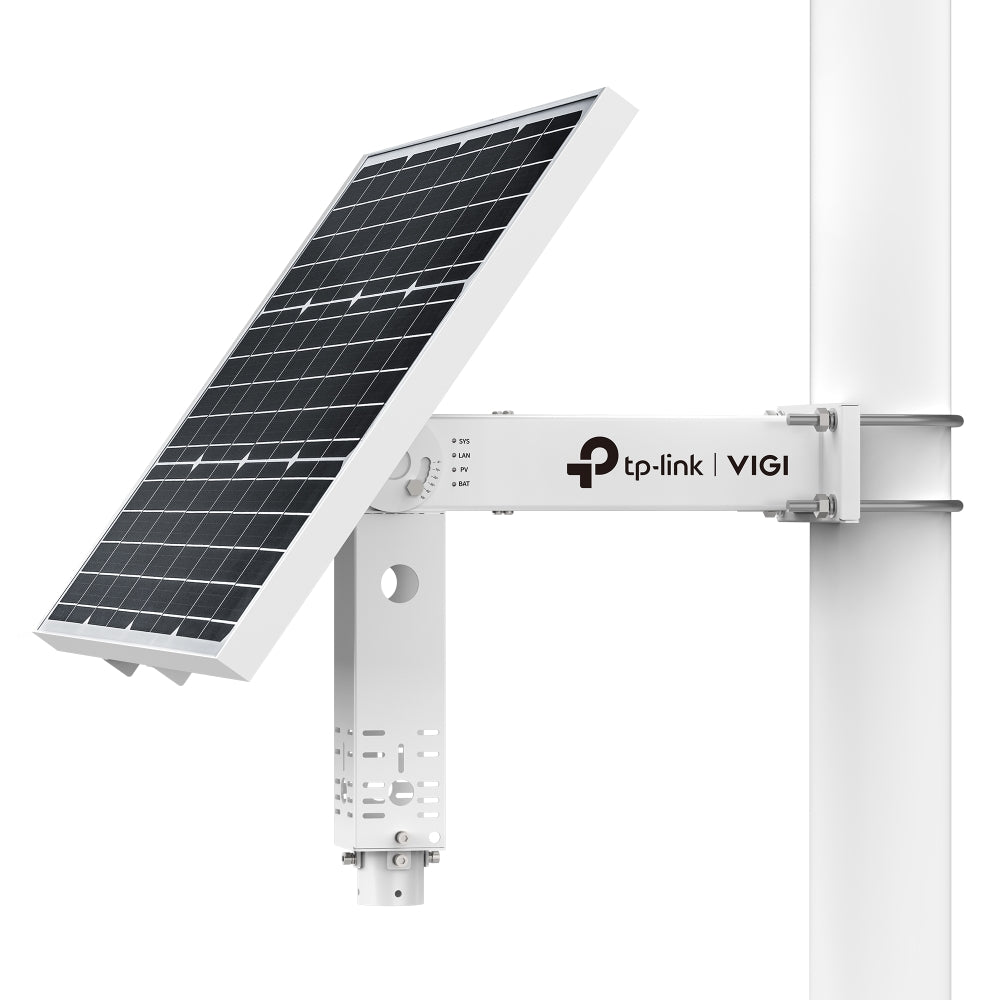

TP-LINK VIGI SOLAR PANEL 60W AND 31.2AH BATTERY

Features

• 60W High-Efficiency Solar Panel - Grade-A monocrystalline design for optimal energy conversion
• 31.2Ah 10.8V Lithium Battery - Reliable energy storage with intelligent auxiliary heating technology
• IP66 Weatherproof Design - Durable protection against rain, dust, and harsh outdoor conditions
• 3× DC Output Ports - Power multiple devices simultaneously with stable voltage output
• Modular Design - Flexible installation with simplified maintenance and scalability
• Adjustable Mounting Angles - 5° / 15° / 25° / 35° / 45° / 55° positioning for optimal sunlight capture
• MPPT Charging Controller - Maximum Power Point Tracking for improved charging efficiency
• Intelligent Power Management - Remote monitoring, alerts and automatic fault recovery via app
• All-Weather Operation - Stable performance in extreme temperatures with smart protection systems
• True Off-Grid Deployment - No mains power required for remote surveillance and networking applications

Specifications

• Solar Power: 60W
• Solar Voltage: 18V
• Solar Dimensions: 690 × 516 × 30mm
• Battery Type: Lithium
• Battery Capacity: 31.2Ah
• Battery Voltage: 10.8V
• Battery Max. Output Voltage: 12.6V
• Intelligent Auxiliary Heating: Yes
• Battery Lifecycle: More than 500 Cycles
• Battery Dimensions: 242 × 70 × 65mm
• Adjustment Angles: 5° / 15° / 25° / 35° / 45° / 55°
• Network Interface: 1× 10/100Mbps RJ45
• Solar Connector: 1× Photovoltaic Panel Connector
• DC Outputs:

- #1, #2: 9~12.6V Dc 2A

- #3: 12V Dc 2A

• Power Outputs: 3× 5.5mm DC Plugs
• LED Indicators: 4× (SYS, LAN, PV, BAT)
• LED Colour: Blue

Software Features

• Load Control: Yes
• Real-Time Load Monitoring: Yes
• Power Consumption Statistics: Yes
• Battery Level Display: Yes
• Remote Management: Yes
• Remote Reboot: Yes
• Remote Reset: Yes
• Remote Message Push: Yes
• Firmware Remote Update: Yes
• Local LAN Management: Yes
• Account Management: Yes
• Schedule Saving: Yes
• Time Zone and Region Selection: Yes
• Smart Charging Control: -30~5°C

Protection Features

• High and Low Temperature Protection: Yes
• Over-Discharge Protection: Yes

Environment

• Operating Temperature: -30~60°C (With Intelligent Auxiliary Heating)
• Operating Humidity: 10~90% RH (Non-Condensing)

General

• Certification: CB, PSE (Battery), CE, FCC, VCCI, IC, IP66
• Compatible Pole Diameter: ø80~120mm
• Weight: 14kg

Shipping Dimensions

• Length: 40 cm
• Width: 35 cm
• Height: 14.2 cm
• Weight: 3.20 kg
