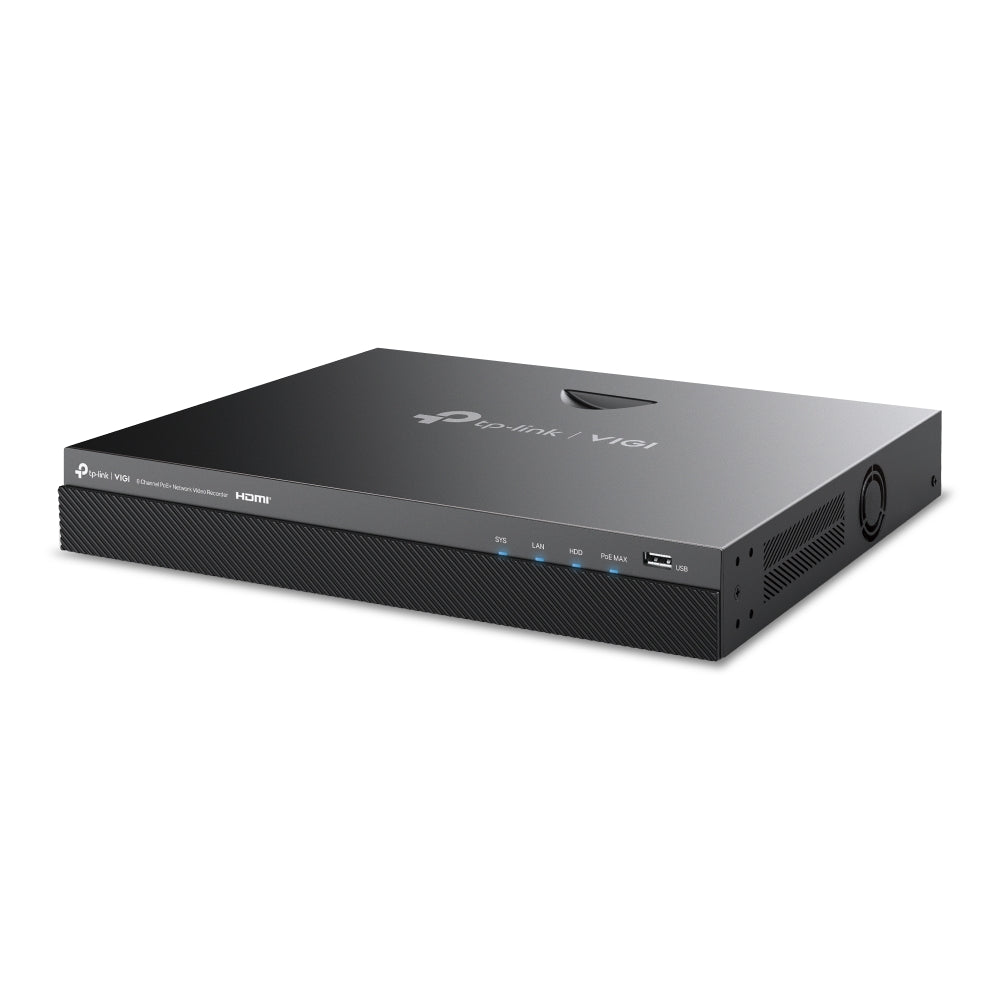

TP LINK VIGI NVR POE+ 93W 8CH 4K VGA/HDMI

Features

• 8MP Video Recording - Supports ultra-high-definition surveillance for clear, detailed footage
• 8-Channel Input - Connect and manage up to 8× IP cameras simultaneously
• PoE+ Ports with 93W Budget - Power and connect cameras directly via Ethernet
• H.265+ Compression - Reduces bandwidth and storage requirements without compromising quality
• HDMI and VGA Output - Dual video outputs with up to 4K display support
• Remote Monitoring - Access live view and playback via VIGI app, web UI or VMS
• Smart Playback - Quickly locate events with intelligent timeline navigation
• ONVIF Compatibility - Works with a wide range of IP cameras
• SATA Storage Support - Supports large-capacity HDD for extended recording

Specifications

• Video Input: 8× IP Channels
• Incoming Bandwidth: 80Mbps
• Outgoing Bandwidth: 60Mbps
• HDMI Output: up to 4K (3840 × 2160)
• VGA Output: up to 1080p (1920 × 1080)
• Video Output Mode: HDMI / VGA Simultaneous
• Multi-View Display: 1 / 4 / 6 / 8
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Audio Compression: G.711 A / G.711 U / G.726
• Recording Resolution: up to 8MP
• Playback: 8-Channel Synchronous
• Decoding Capability:
• 2× 8MP / 4× 4MP / 8× 2MP (25fps)
• 4× 5MP / 4× 3MP (30fps)
• Recording Modes: Manual / Schedule / Motion Detection
• Playback Modes: Instant / Regular / Tag / Event
• Backup: Regular / Video Clip
• Playback Functions:
• Play / Pause / Stop
• Fast Forward / Backward
• Frame-by-Frame
• Digital Zoom
• Clip / Export
• Lock Recording
• Network Protocols: TCP/IP, DHCP, NTP, UPnP
• Remote Access: Android / iOS
• Web Browser Support: Chrome / Firefox / Edge
• ONVIF: Yes
• Network Interface: 1× RJ45 (10/100Mbps)
• USB: 2× USB2.0 (Front + Rear)
• Audio: 1× In, 1× Out
• HDMI: 1×
• VGA: 1×
• eSATA: 1×
• HDD Interface: 2× SATA
• Capacity: up to 16TB per HDD
• PoE Standard: 802.3af/at
• PoE Ports: 8× RJ45
• PoE Budget: 93W (Max. 30W per Port)
• Smart Events:
• Motion Detection
• Line Crossing / Intrusion
• Region Enter / Exit
• Object Abandon / Removal
• Vehicle / Human Detection
• Alarm Events:
• Video Loss / Offline
• IP Conflict
• Disk Exception
• Login Exception
• Alarm Actions: Recording / Notification / Buzzer / Log
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Dimensions: 330 × 285 × 45mm
• Net Weight: 2.1kg
• Power Supply: 53.5VDC 2.43A
• Max Power Consumption:
• 4.9W (Without HDD)
• 35W (With HDD)
• Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Shipping Dimensions

• Length: 40 cm
• Width: 35 cm
• Height: 14.2 cm
• Weight: 3.20 kg
