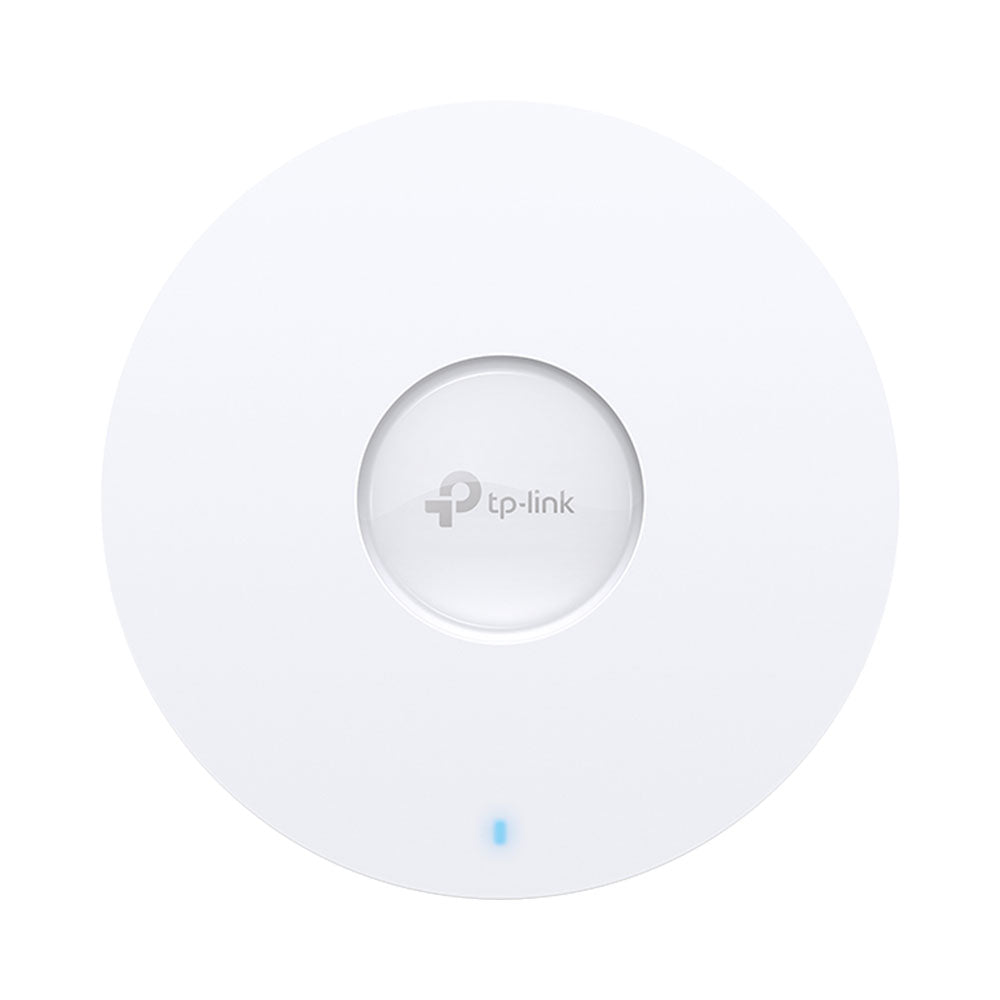

TP-LINK POE+ AX3000 CEILING MOUNT WIFI 6 AP

Features

• Ultra-Fast Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 2,402Mbps on 5.0GHz totals 2,976Mbps Wi-Fi speeds
• High-Efficiency Wi-Fi 6 - More connected devices can enjoy faster speeds
• Centralised Cloud Management - Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada App
• 160MHz Channel - Double the data at peak transmission times on a single stream with HE160
• Seamless Roaming - Video streams and voice calls are unaffected as users move between locations
• Omada Mesh - Enables wireless connectivity between access points for extended range and flexible deployment
• PoE+ Powered - Supports both 802.3at PoE+ and DC power supply (DC adapter sold separately) for flexible installations
• Ultra-Slim Design - ø160mm × 33.6mm elegant design brings more agility

Specifications

Hardware Features

• Interface: 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3at PoE+)
• Button: Reset
• Power Supply: 802.3at PoE+ or 12V DC (DC Adapter Sold Separately)
• Power Consumption: 12.3W
• Dimensions: 160 × 160 × 33.6mm
• Antennas: Internal Omni Antennas
• 2.4GHz: 2× 4dBi
• 5.0GHz: 2× 5dBi
• Mounting: Ceiling/Wall Mounting Kits Included

Wireless Features

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4GHz and 5.0GHz
• Signal Rate:
• 5.0GHz: up to 2402Mbps
• 2.4GHz: up to 574Mbps
• 1024-QAM: Yes
• OFDMA: Yes
• MU-MIMO: Yes
• HE160: Yes
• SSIDs: up to 16× SSIDs (8× per Band)
• Seamless Roaming: Yes
• Omada Mesh: Yes
• Band Steering: Yes
• Load Balance: Yes
• Airtime Fairness: Yes
• Beamforming: Yes
• QoS (WMM): Yes
• Rate Limit: Yes
• Reboot Schedule and Wireless Schedule: Yes
• Wireless Statistics: Based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
• FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)

Management

• Omada App: Yes
• Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
• Email Alerts: Yes
• LED On/Off Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-Based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-Site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)

Certification

• CE
• FCC
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 24.5 cm
• Width: 22.8 cm
• Height: 6.5 cm
• Weight: 0.70 kg
