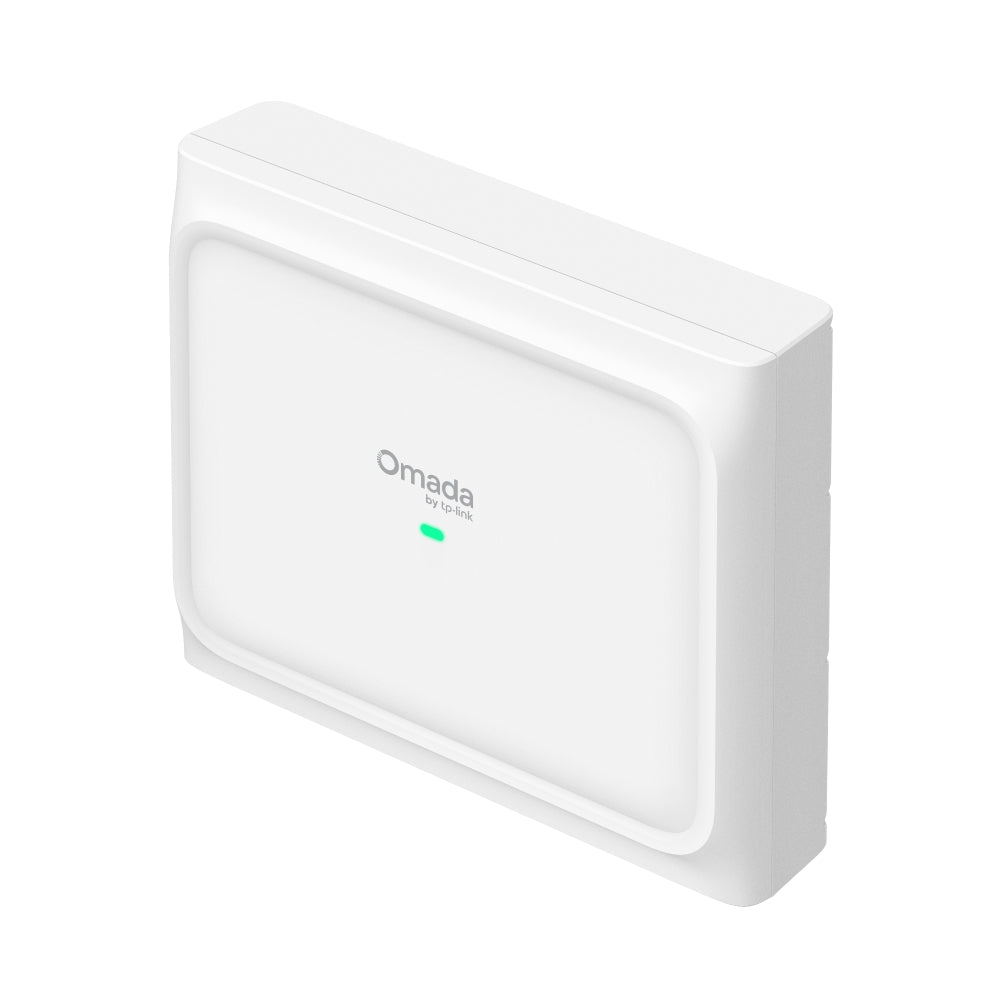

TP-LINK OMADA WIFI6 DUAL BAND OUTDOOR AP

Features

• AX3000 Wi-Fi 6 Performance - up to 2,402Mbps (5.0GHz) + 574Mbps (2.4GHz) for high-speed outdoor connectivity
• Directional Ultra-Range Coverage - 30° high-gain directional antennas for focused, extended signal reach
• IP68 Weatherproof Design - Fully sealed enclosure for reliable operation in harsh outdoor environments
• 802.3at PoE+ Support - Simplified deployment with power and data over a single Ethernet cable
• 802.11k/v/r Seamless Roaming - Smooth handover for uninterrupted connectivity (ideal for AGVs and mobile devices)
• Omada Mesh Technology - Flexible wireless expansion for scalable outdoor networks
• Centralised Cloud Management - Full control via Omada SDN platform (cloud or controller-based)
• Advanced Security - WPA3 encryption with multi-SSID network segmentation
• Flexible Installation - Pole and wall mounting options for versatile deployment

Specifications

• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Frequency: 2.4GHz, 5.0GHz
• Signal Rate: Up to 574Mbps (2.4GHz) + 2,402Mbps (5.0GHz)
• Concurrent Clients: Up to 250+
• Antenna: Built-In Directional High-Gain Antennas
• Built-In Directional Antennas: 2.4GHz: 2× 12dBi; 5.0GHz: 2× 15dBi
• Beamwidth: 30° Horizontal; 30° Vertical
• Coverage: Directional Ultra-Range Coverage
• Wireless Features: DL/UL OFDMA, MU-MIMO, Beamforming, Band Steering, Airtime Fairness
• Mesh Technology: Omada Mesh
• Roaming: 802.11k/v/r Seamless Roaming
• Wireless Security: WPA/WPA2/WPA3-Personal/Enterprise, Captive Portal, MAC Filtering
• Interface: 1× Gigabit Ethernet Port
• PoE: 802.3at PoE+ or 48V Passive PoE
• Max. Power Consumption: 12.5W (802.3at PoE or Passive PoE)
• Weatherproof Rating: IP68
• Mounting: Wall/Pole/Ceiling Mount
• Bluetooth: Yes
• Management: Omada Cloud, Hardware/Software Controller, App, Web UI
• Features: VLAN, QoS, Guest Network, RADIUS, Remote Management
• Dimensions (W × D × H): 207.5 × 58 × 230mm
• Operating Temperature: -30~70°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH, Non-Condensing
• Storage Humidity: 5~90% RH, Non-Condensing
