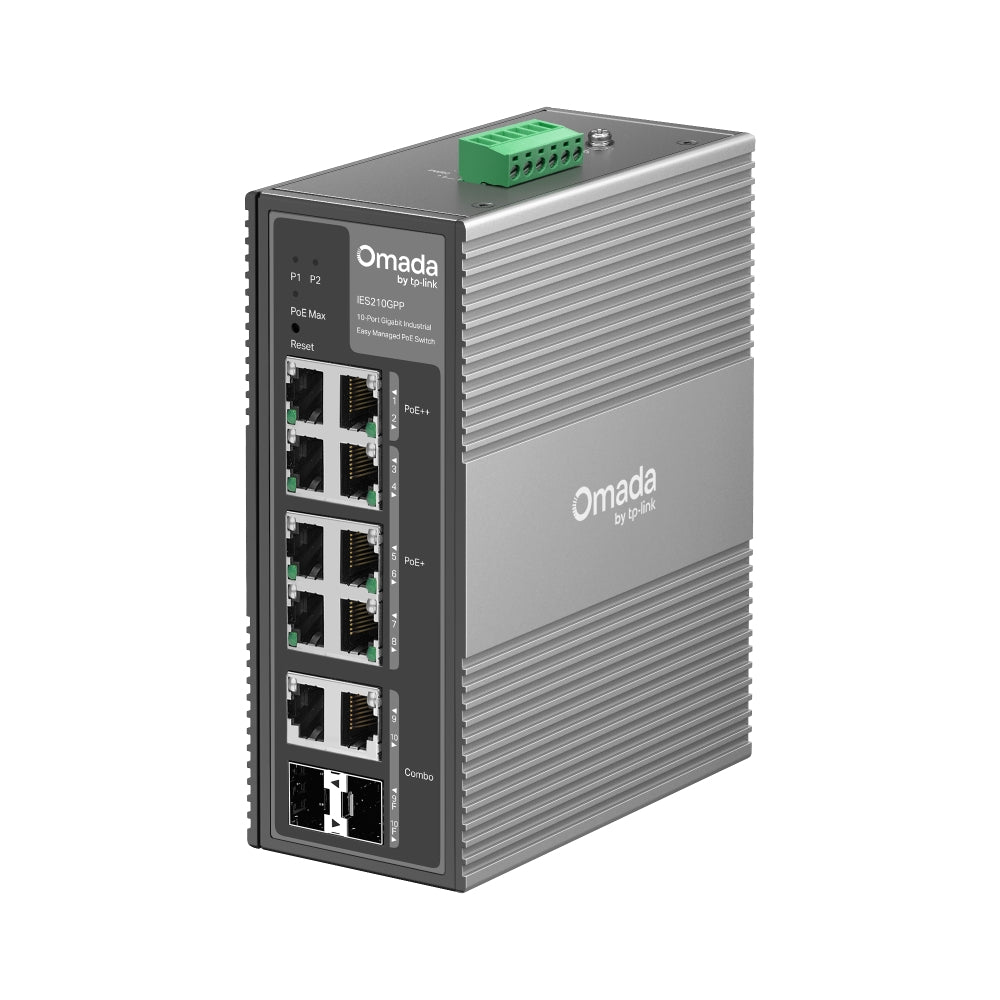

Features
- 8× Gigabit RJ45 Ports (2× PoE++, 6× PoE+)
- 2× Gigabit Combo RJ45/SFP Slots
- 240W Power Budget* with up to 60W for Each PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminium Casing and DIN-rail / Wall-mount Design
Specifications
Hardware Features
Interface:
- 2× 10/100/1000 Mbps PoE++ RJ45 Ports
- 6× 10/100/1000 Mbps PoE+ RJ45 Ports
- 2× Gigabit SFP/RJ45 Combo Slots
- Auto-Negotiation/Auto MDI/MDIX
Fan Quantity: Fanless
Installation:
- DIN-rail mounting
- Wall mounting
Physical Security Lock: Yes
Power Supply: 12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45):
- Standard: 802.3af/at/bt compliant
- PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port
- PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port
- PoE Budget:
- 60W (Input: 12V / 7.2A - 21V / 3.7A))
- 120W (Input: 21V / 6.7A - 46V / 3.1A)
- 240W (Input: 46V / 5.7A - 57V / 4.4A)
Dimensions ( W x D x H ): 155 × 120 × 60mm
Surge Protection:
- ±6 kV in common mode for Ethernet ports
- ±4 kV in common mode for DC power input ports
Performance
Switching Capacity: 20Gbps
Packet Forwarding Rate: 14.88 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
Software Features
Quality of Service:
- 802.1p DSCP Priority
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rate Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features:
- Link Aggregation
- Static Link Aggregation
- Up to 4 aggregation groups and up to 6 ports per group
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
- Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
L2 Multicast:
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
Vlan:
- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K Vid
Transmission Method: Store-And-Forward
Management Features
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Digital Diagnostic Monitoring (DDM)
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Unified Configuration
Others
Certification: FCC, CE, RoHS
Environment
- Operating Temperature: -40°C~75°C
- Storage Temperature: -40°C~85°C
- Operating Humidity: 5%~95% non-condensing
- Storage Humidity: 5%~95% non-condensing
Shipping Dimensions
- Length: 19.7 cm
- Width: 18.8 cm
- Height: 9.5 cm
- Weight: 1.42 kg
