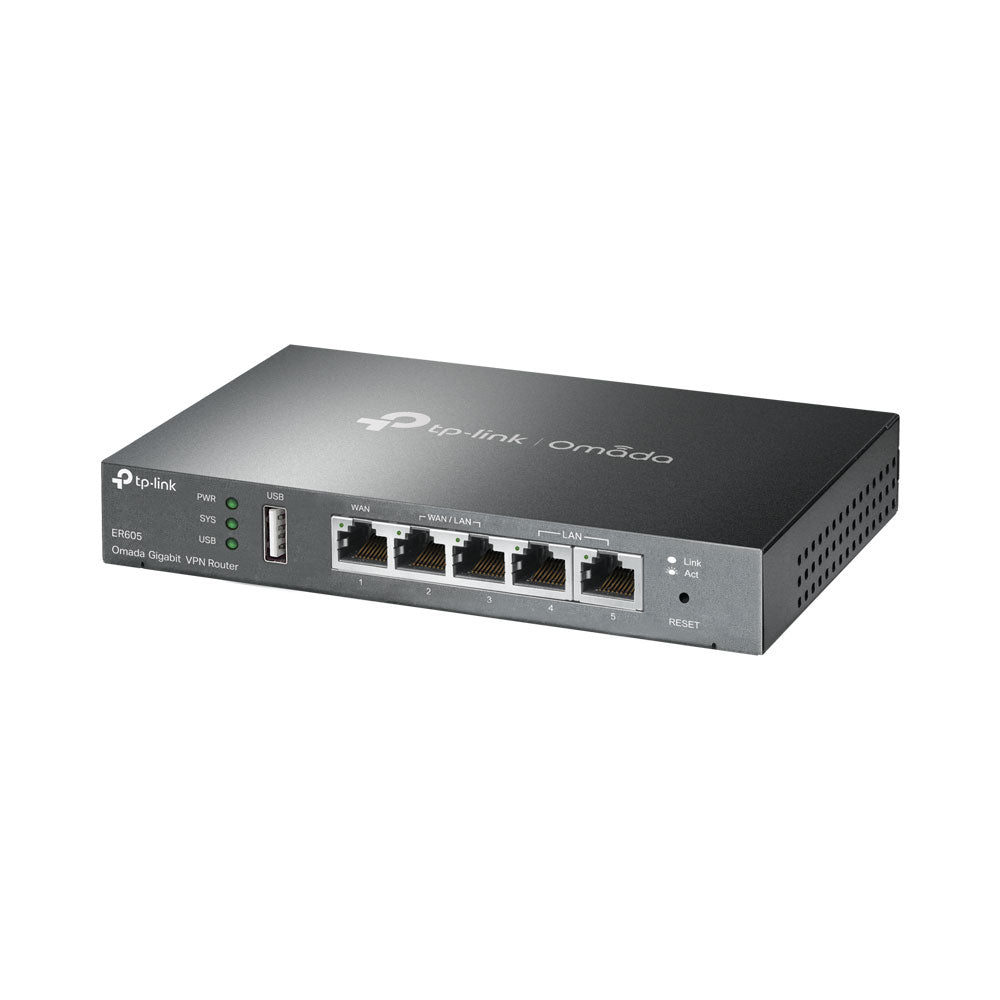

TP-LINK OMADA GIGABIT VPN ROUTER

Features

• Integrated into Omada SDN - Zero-Touch Provisioning, Centralised Cloud Management, and Intelligent Monitoring
• Centralised Management - Cloud access and Omada app for convenience and easy management
• Five Gigabit Ports - High-speed wired connectivity
• Up to 3 WAN Ethernet Ports - 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilisation rate of multi-line broadband
• One USB WAN Port for Mobile Broadband - Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port
• Highly Secure VPN - Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN, 16x L2TP and 16x PPTP VPN connections
• Abundant Security Features - Advanced firewall policies, DoS defence, IP/MAC/URL filtering and more security functions protect your network and data

Specifications

Hardware Features

• Interface:
• 1× Gigabit WAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports
• Button: Reset
• Power Supply: 12V 1A DC Power Adapter
• Power Consumption: 7.66W
• Dimensions: 158 × 101 × 25mm
• Mounting: Desktop or Wall Mount

Performance

• Concurrent Sessions: up to 150,000
• NAT Throughput: up to 940Mbps

Wan Features

• Multi-WAN Load Balancing
• Link Backup
• Intelligent Load Balancing
• Online Detection

Vpn Features

• IPSec VPN: up to 20× IPSec Tunnels
• SSL VPN: up to 16× SSL VPN Connections
• L2TP VPN: up to 20× L2TP Tunnels
• PPTP VPN: up to 20× PPTP Tunnels
• IPsec VPN:
• Site-to-Site VPN
• Client-to-Site VPN
• IPSec/IKEv1/IKEv2
• DES, 3DES, AES128, AES192, AES256 Encryption
• MD5, SHA1 Authentication

Security

• SPI Firewall
• DoS Defence
• IP/MAC/URL Filtering
• ARP Inspection
• Attack Defence
• Access Control

Network Features

• Static Routing
• Policy Routing
• NAT
• Port Forwarding
• One-to-One NAT
• UPnP
• DHCP Server
• DHCP Reservation

Management

• Omada SDN Integration
• Omada App
• Cloud Access
• Centralised Management via OC200, OC300 or Omada Software Controller
• Web Management (HTTP/HTTPS)
• SNMP v1/v2c/v3
• Syslog Support

Certification

• CE
• FCC
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 25.4 cm
• Width: 19 cm
• Height: 6 cm
• Weight: 0.68 kg
