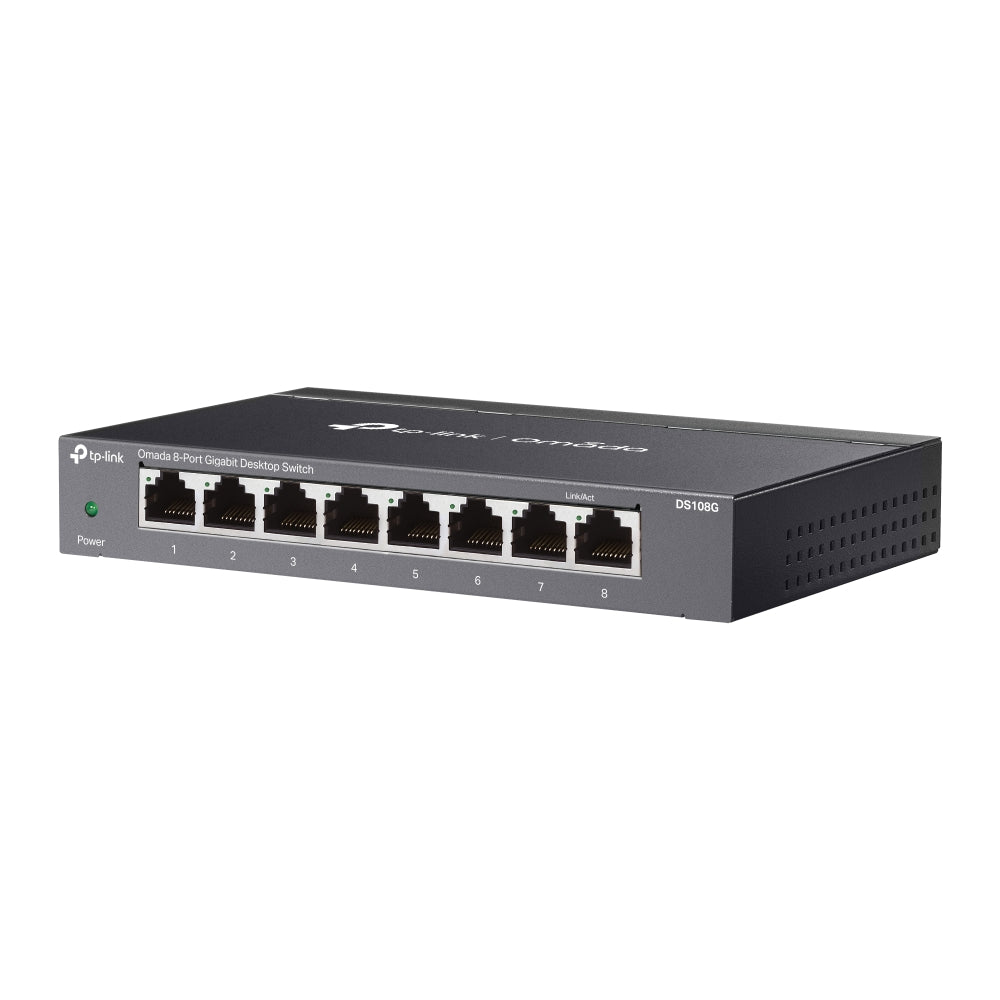

TP-LINK OMADA DS108G 8-PORT GIGABIT UNMANAGED DESKTOP SWITCH

Features

• 8× Gigabit Ethernet Ports - 10/100/1000Mbps RJ45 ports for high-speed wired networking
• Plug-and-Play Operation - No configuration required for quick and easy deployment
• Auto-Negotiation and Auto-MDI/MDIX - Automatically detects cable type and optimal speed
• Energy-Efficient Technology - Intelligent power management reduces energy consumption
• QoS Support - Prioritises network traffic for smoother performance
• IGMP Snooping - Optimises multicast traffic for improved network efficiency
• Loop Prevention Function - Detects and prevents network loop issues
• Durable Metal Housing - Strong, reliable construction for long-term operation
• Desktop or Wall-Mount Installation - Flexible placement options for various environments

Specifications

Interface

• 8× 10/100/1000Mbps RJ45 Ports
• Auto-Negotiation / Auto MDI-MDIX

Standards

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.1p

Performance

• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5Mbit
• Jumbo Frame: 16KB
• Transmission Method: Store-and-Forward

Power

• Max. Power Consumption: 3.924W (220V 50Hz)
• Max. Heat Dissipation: 13.34 BTU/h
• External Power Supply: 5V DC 0.6A

Advanced Functions

• Green Ethernet Technology
• 802.3X Flow Control
• 802.1p / DSCP QoS
• IGMP Snooping
• Loop Prevention

Cooling

• Fanless Design

Physical

• Dimensions (W × D × H): 158 × 100.7 × 25.4mm

Certification

• FCC
• CE
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)
