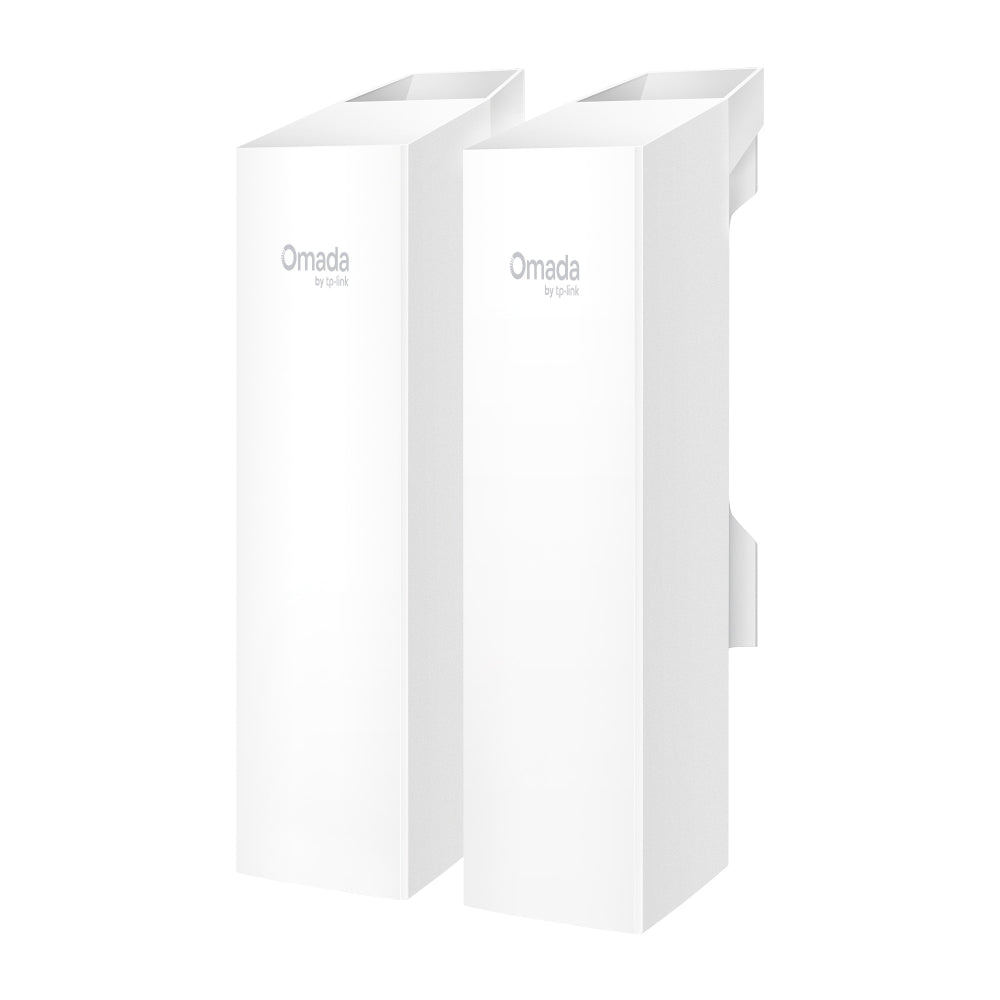

TP-LINK OMADA 2.4GHZ 300MBPS WIRELESS BRIDGE

Features

• 300Mbps Wireless Speed - Up to 300Mbps on 2.4GHz for stable point-to-point connectivity
• Up to 500m Transmission Distance - Reliable long-range wireless bridging for outdoor deployments
• Pre-Paired Bridge Kit - Plug-and-play setup with automatic pairing out of the box
• App-Guided Alignment - Visual signal alignment for accurate and efficient installation
• Directional High-Gain Antennas - 8dBi antennas for focused signal transmission and stability
• IP65 Weatherproof Design - Durable enclosure for reliable outdoor operation
• 802.3af PoE and Passive PoE - Flexible power options for simplified deployment
• Centralised Management - Omada SDN support for remote monitoring and control
• Outdoor-Ready Design - Built to operate in extreme temperatures from -40°C to 70°C

Specifications

• Wireless Standards: IEEE 802.11b/g/n (2.4GHz)
• Signal Rate: up to 300Mbps (2.4GHz)
• Frequency: 2.4GHz
• Transmission Distance: Up to 500m
• Wireless Features: Beamforming, PtP, PtMP, Multiple SSIDs, Channel Optimisation, Rate Limit, Wireless Scheduling
• Wireless Security: WPA/WPA2, VLAN, Rogue AP Detection, MAC Filtering
• Interface: 3× 10/100Mbps Ethernet Ports
• Button: Pair/Reset
• PoE: 802.3af PoE, 24V Passive PoE, 48V Passive PoE
• Power Input: 12V DC
• Max. Power Consumption: 4.8W
• Antenna: Internal 2×2 Dual-Polarised Directional Antennas (8dBi, 70° Beamwidth)
• Weatherproof Rating: IP65
• Mounting: Pole Mounting (Kit Included)
• Management: Omada Controller, App, Web UI, SNMP, SSH
• Dimensions (W × D × H): 79 × 60 × 224mm
• Operating Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH, Non-Condensing
• Storage Humidity: 5~90% RH, Non-Condensing
