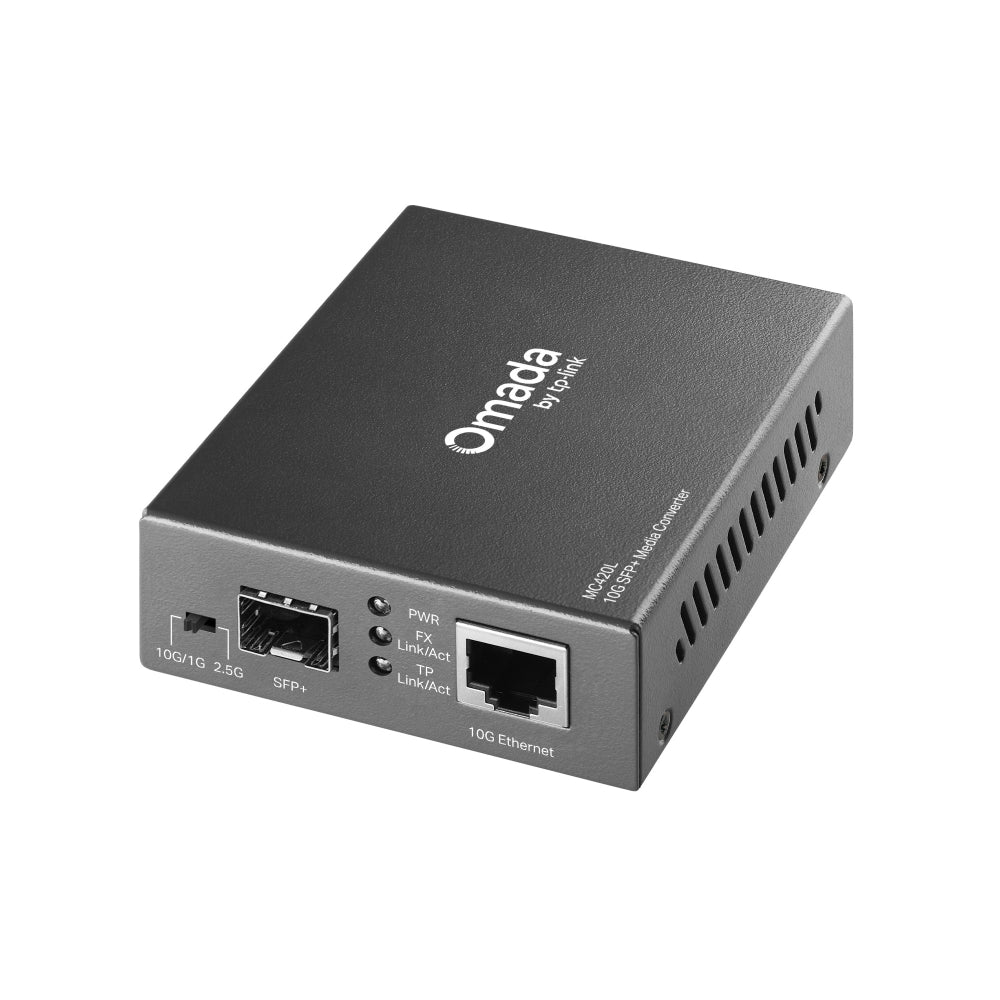

TP-LINK OMADA 10GB TO SFP+ MEDIA CONVERTER

Features

• 10Gbps Media Conversion – Converts between 10GBASE-T copper and SFP+ fibre for high-speed networking
• Multi-Gigabit RJ45 Port – Supports 1G / 2.5G / 5G / 10Gbps auto-negotiation with Auto-MDI/MDIX
• SFP+ Slot – Supports multi-mode and single-mode fibre modules for flexible deployment
• Long-Distance Extension – Extends network reach over fibre depending on SFP module used
• Hot-Swappable Design – Easily replace or upgrade SFP modules without downtime
• Flexible Installation – Desktop use or rackmount via TP-Link MC1400 chassis support

Specifications

• Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
• Ports: 1× SFP+ Port, 1× 1G/2.5G/5G/10Gbps RJ45 Port
• RJ45 Features: Auto-Negotiation, Auto-MDI/MDIX
• Duplex Mode: Half-Duplex / Full-Duplex Auto-Negotiation
• Transmission Media: Multi-Mode / Single-Mode Fibre, Twisted Pair
• Fibre Support: 10GBASE-SR/LR/LRM (via SFP+ Module)
• Copper Support: 1000BASE-T / 2.5GBASE-T / 5GBASE-T / 10GBASE-T
• Transmission Distance: Depends on SFP Module
• Wavelength: Depends on SFP Module
• Power Supply: External Power Adapter (9V 0.6A)
• Maximum Power Consumption: 4.12W
• LED Indicators: PWR, Link/Act
• Installation: Desktop or Rackmount (via MC1400 Chassis)
• Dimensions: 94.5 × 73 × 27mm
• Safety & Emission: UL, RoHS
• Operating Temperature: 0~50°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH, Non-Condensing
• Storage Humidity: 5~90% RH, Non-Condensing
