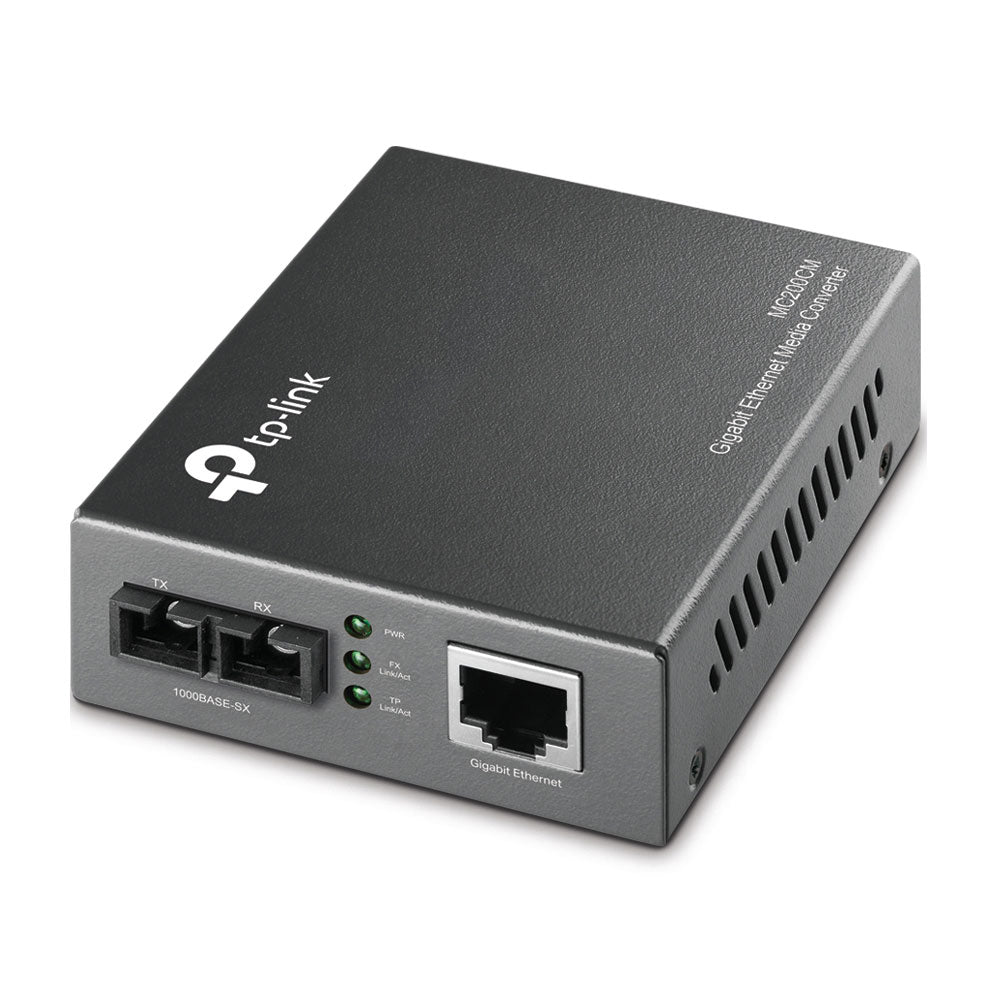

TP-LINK GIGABIT RJ45 TO MULTI-MODE SC FIBRE

Features

• Gigabit Media Conversion - Converts 1000Mbps Ethernet to multi-mode fibre for extended network connectivity
• Long-Distance Fibre Transmission - Supports fibre distances up to 550m over multi-mode fibre
• Auto-Negotiation Support - Automatically detects optimal speed and duplex settings
• Auto MDI/MDIX Support - Eliminates the need for crossover cables for easier deployment
• Reliable Data Transmission - IEEE 802.3x flow control ensures stable and efficient network performance
• Plug-and-Play - Simple installation with no configuration required

Specifications

Standards And Protocols

• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x

Ports

• 1× Gigabit SC Fibre Port
• 1× 10/100/1000Mbps RJ45 Port (Auto MDI/MDIX)

Wave Length

• 850nm

Network Media 1000Base-T

• UTP CAT5, 5e, 6 Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

Network Media 1000Base-Sx

• Multi-Mode Fibre

Led Indicators

• PWR
• Link/Act

Dimensions (W × D × H)

• 94.5 × 73 × 27mm

Power Supply

• External Power Supply

Max. Power Consumption

• 3.3W

Safety And Emission

• FCC
• CE
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 20.4 cm
• Width: 16.5 cm
• Height: 6.5 cm
• Weight: 0.52 kg
