FEATURES:
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
- High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
- PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

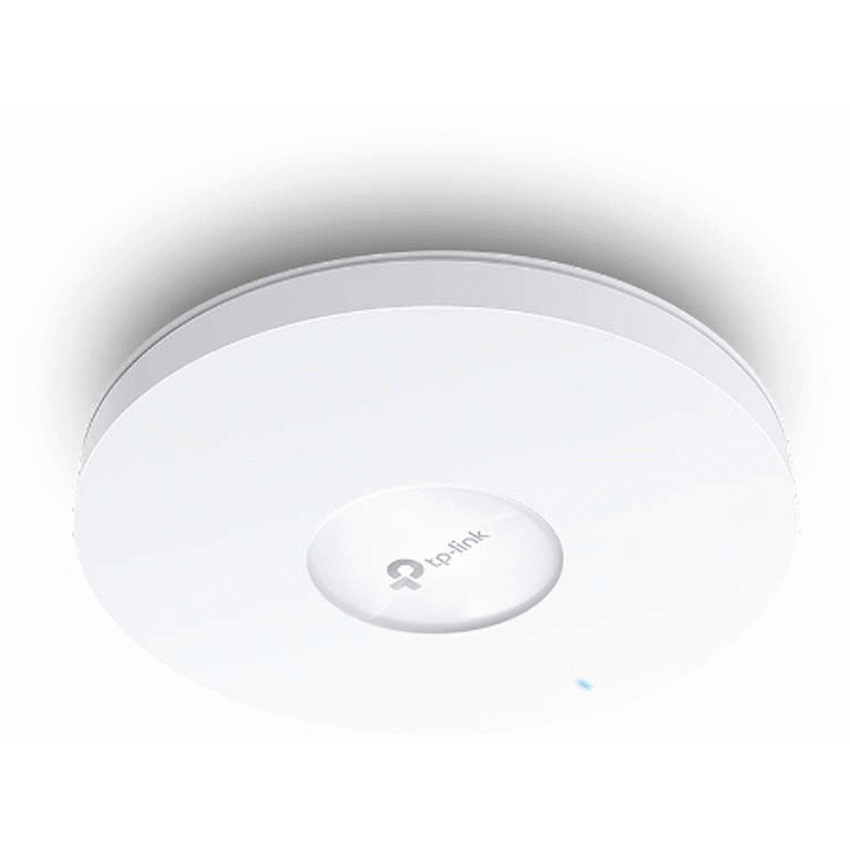

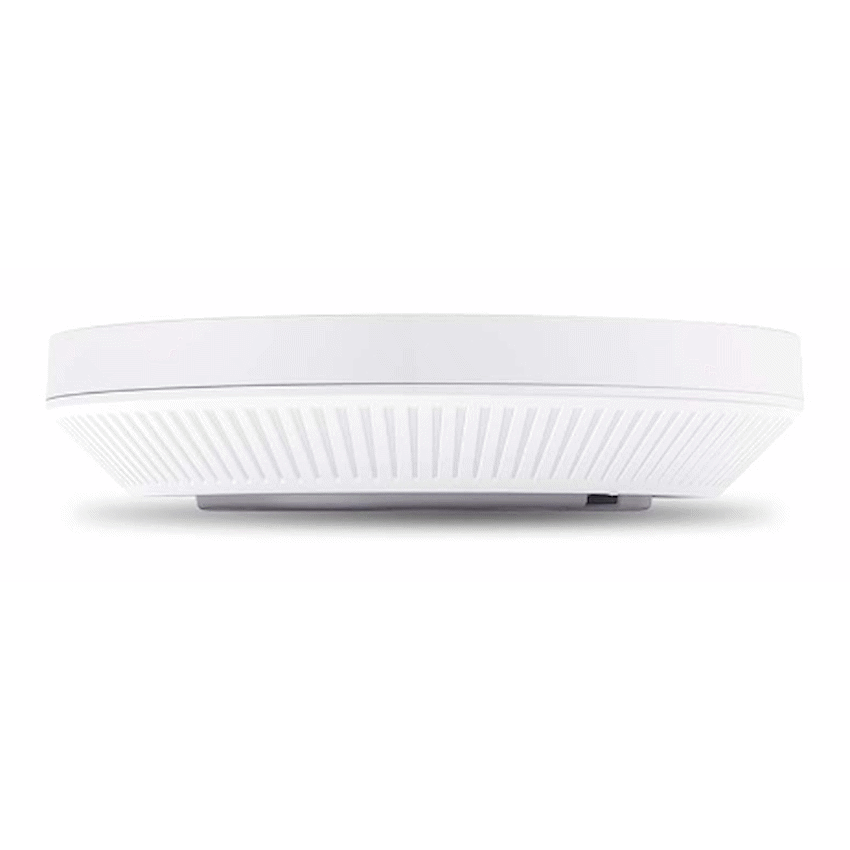

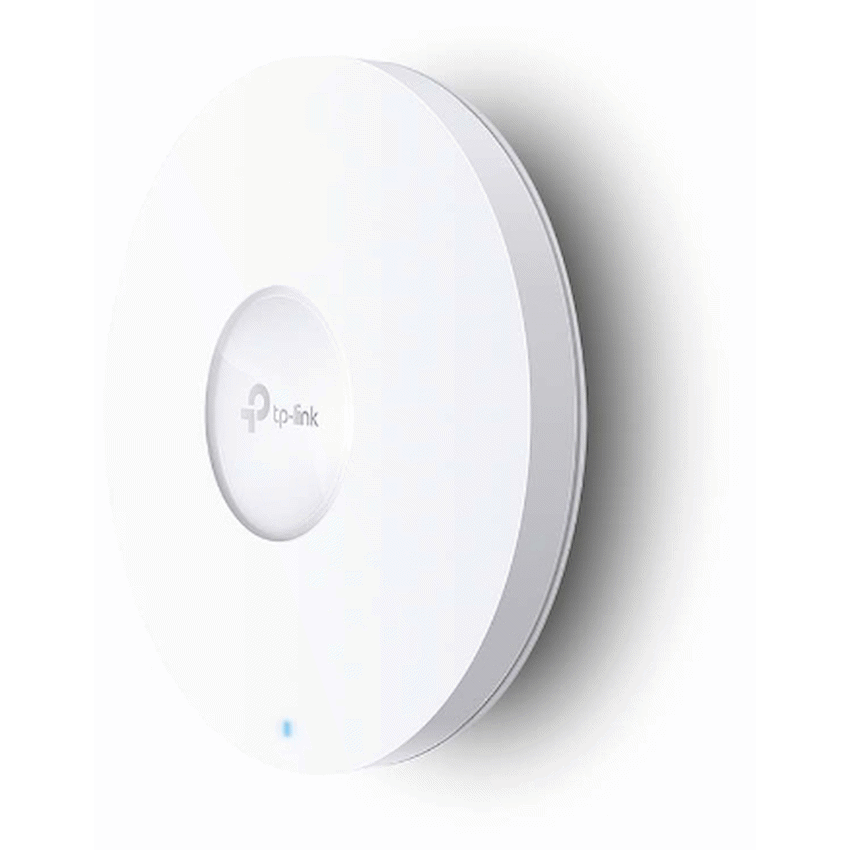

TP-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
Easily Upgrade to Business Wi-Fi 6 Network
FEATURES:
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
- High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
- PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
SPECIFICATIONS:
| HARDWARE FEATURES |
|

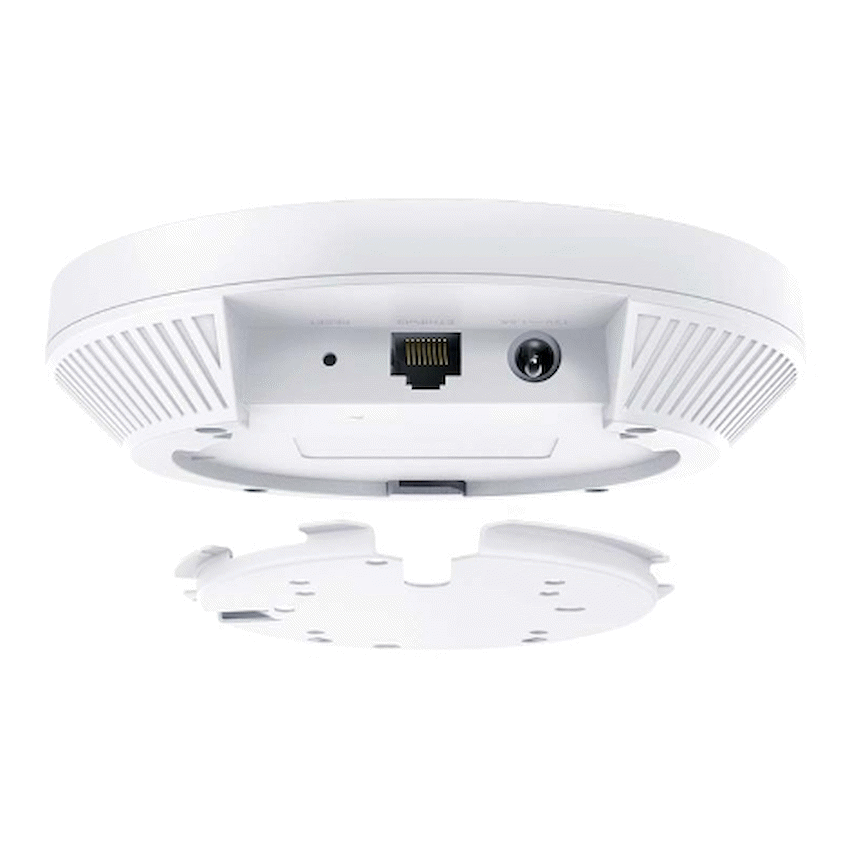

| Interface |
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button |
Reset |
| Power Supply |
• 802.3at PoE |
|
• 12 V / 1 A DC (Power Adapter included) |
| Power Consumption |
• EU: 12.8 W (For PoE); 10.8 W (for DC) |
| Dimensions ( W x D x H ) |
243 x 243 x 64mm |
| Antenna Type |
Internal Omni |
|
• 2.4 GHz: 2x 4 dBi |
|
• 5 GHz: 2x 5 dBi |
| Mounting |
Ceiling/Wall Mounting (Kits included) |
| WIRELESS FEATURES |
|
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
5 GHz: Up to 1201 Mbps |
|
2.4 GHz: Up to 574 Mbps |
| Wireless Functions |
• 1024-QAM |
|
• 4x Longer OFDM Symbol |
|
• OFDMA |
|
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band) |
|
• Enable/Disable Wireless Radio |
|
• Automatic Channel Assignment |
|
• Transmit Power Control (Adjust Transmit Power on dBm) |
|
• QoS(WMM) |
|
• MU-MIMO |
|
• Seamless Roaming |
|
• Omada Mesh |
|
• Band Steering |
|
• Load Balance |
|
• Airtime Fairness |
|
• Beamforming |
|
• Rate Limit |
|
• Reboot Schedule |
|
• Wireless Schedule |
|
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
• Captive Portal Authentication |
|
• Access Control |
|
• Wireless Mac Address Filtering |
|
• Wireless Isolation Between Clients |
|
• SSID to VLAN Mapping |
|
• Rogue AP Detection |
|
• 802.1X Support |
|
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
• CE: |
|
<20 dBm(2.4 GHz, EIRP) |
|
<23 dBm(5 GHz, EIRP) |
|
|
|
• FCC: |
|
<25 dBm (2.4 GHz) |
|
<25 dBm (5 GHz) |
| MANAGEMENT |
|
| Omada App |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) |
|
• Omada Hardware Controller OC300 |
|
• Omada Hardware Controller OC200 |
|
• Omada Software Controller |
| Cloud Access |
Yes, through |
|
• OC300 |
|
• OC200 |
|
• Omada Software Controller |
|
• Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) |
| OTHERS |
|
| Certification |
CE, FCC, RoHS |
| Package Contents |
• EAP610 |
|
• Power Adapter |
|
• Ceiling/Wall Mounting Kits |
|
• Installation Guide |
