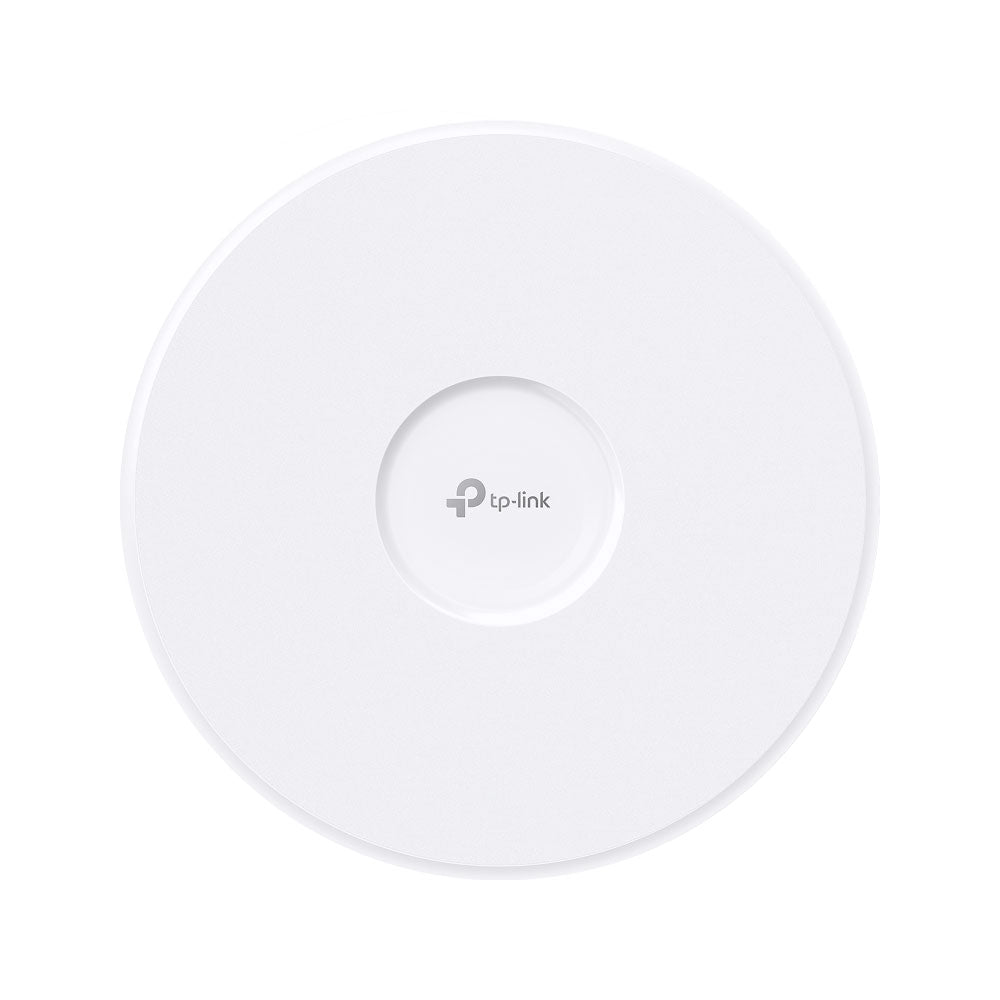

TP-LINK BE9300 WIFI 7 TRIBAND ACCESS PT

Features

• BE9300 Tri-Band Wi-Fi 7 - 5,760Mbps (6.0GHz) + 2,880Mbps (5.0GHz) + 574Mbps (2.4GHz)
• 1× 10G Port - Unlock the full potential of Wi-Fi 7
• Clear 6.0GHz Band - Brings cleaner and wider band resources to your Wi-Fi
• 320MHz Bandwidth - Up to 320MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds
• Low Latency and Interference - Multi-Link Operation and Multi-RUs ensure high network performance
• Advanced Functions - Supports centralised management, mesh and AI roaming

Specifications

Hardware Features

• Interface: 1× 10Gb Ethernet (RJ45) Port (Supports IEEE 802.3at/802.3bt PoE++)
• Button: Reset
• Power Supply: 802.3at/802.3bt PoE or 12V DC (Adapter Not Included)
• Power Consumption: 21.5W
• Dimensions: 220 × 220 × 32.5mm
• Antennas: Internal Omni Antennas
• 2.4GHz: 2× 4dBi
• 5.0GHz: 4× 5dBi
• 6.0GHz: 4× 6dBi
• Mounting: Ceiling/Wall Mounting Kits Included

Wireless Features

• Wireless Standards: IEEE 802.11be/ax/ac/n/g/b/a
• Frequency: 2.4GHz, 5.0GHz and 6.0GHz
• Signal Rate:
• 6.0GHz: up to 5,760Mbps
• 5.0GHz: up to 2,880Mbps
• 2.4GHz: up to 5,74Mbps
• Multi-Link Operation (MLO): Yes
• 4096-QAM: Yes
• OFDMA: Yes
• MU-MIMO: Yes
• 320MHz Channel Support: Yes
• SSIDs: up to 16× SSIDs (8× per Band)
• Seamless Roaming: Yes
• Omada Mesh: Yes
• Band Steering: Yes
• Load Balance: Yes
• Airtime Fairness: Yes
• Beamforming: Yes
• QoS (WMM): Yes
• Rate Limit: Yes
• Reboot Schedule and Wireless Schedule: Yes

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE: ≤20dBm (2.4GHz), ≤23dBm (5.0GHz), ≤23dBm (6.0GHz)
• FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz), ≤25dBm (6.0GHz)

Management

• Omada App: Yes
• Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Cloud Access: Yes
• Email Alerts: Yes
• SNMP: v1/v2c/v3
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-Based Management: HTTP/HTTPS
• Multi-Site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes

Certification

• CE
• FCC
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 28 cm
• Width: 25.9 cm
• Height: 9.1 cm
• Weight: 1.34 kg
