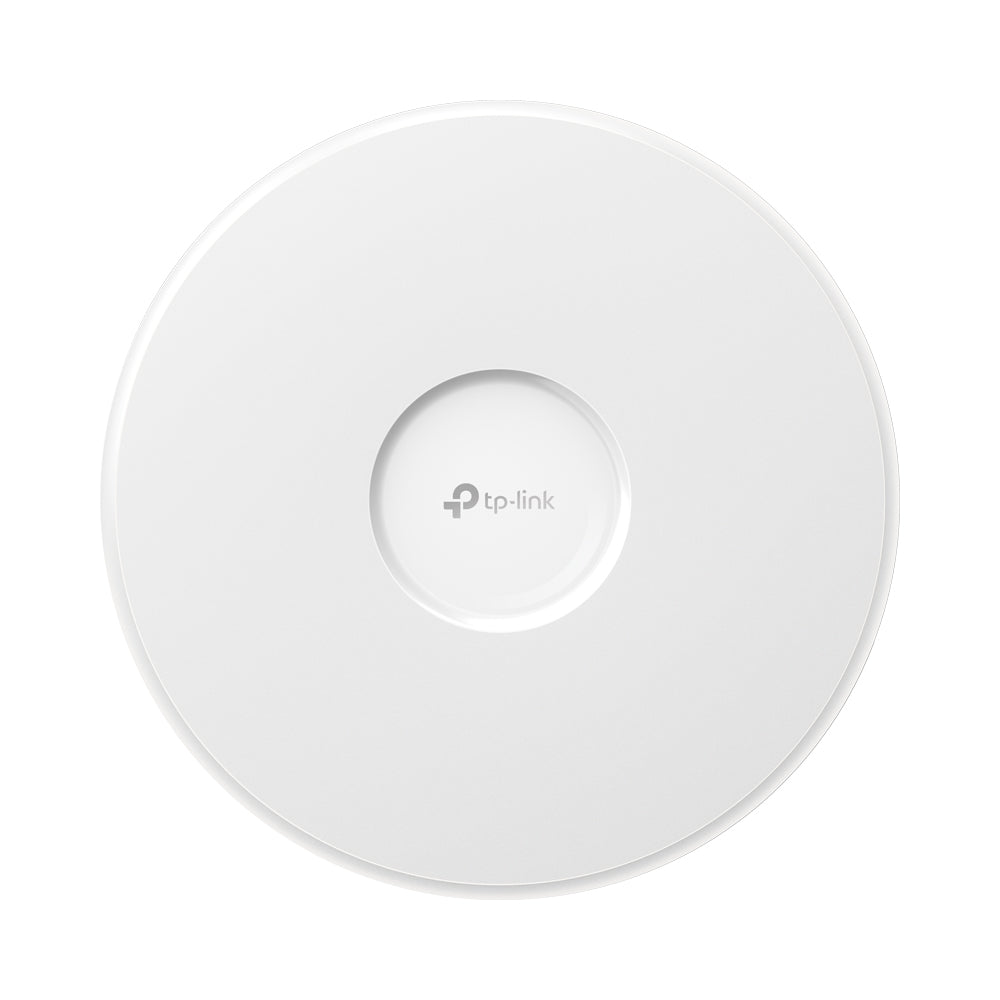

TP-LINK BE19000 WIFI 7 TRIBAND ACCESS PT

Features

• BE19000 Tri-Band Wi-Fi 7 - Up to 19Gbps combined wireless speeds across 2.4GHz, 5.0GHz and 6.0GHz bands
• Multi-Link Operation (MLO) - Simultaneously transmits across multiple bands for lower latency and higher reliability
• 10GbE Multi-Gigabit Uplink - High-capacity wired connection ensures maximum throughput for Wi-Fi 7 performance
• 320MHz Channels and 4K-QAM - Delivers dramatically increased bandwidth and ultra-high wireless efficiency
• High-Density Performance - Advanced OFDMA and MU-MIMO technologies support large numbers of connected devices
• Seamless Omada SDN Integration - Centralised cloud management, intelligent monitoring and zero-touch provisioning
• Seamless Roaming - Maintains uninterrupted connectivity for video calls, streaming and real-time applications
• Flexible Enterprise Deployment - Ceiling-mount design with PoE++ support for clean and scalable installations

Specifications

Hardware Features

• Interface: 2× 10Gbps Ethernet Ports (1× PoE++ In, 1× Data Port)
• Button: Reset
• Power Supply: 802.3bt PoE++
• Power Consumption: 31W
• Dimensions: 280 × 280 × 43.5mm
• Antennas: Internal Omni Antennas
• 2.4GHz: 4× 4dBi
• 5.0GHz: 4× 5dBi
• 6.0GHz: 4× 6dBi
• Mounting: Ceiling/Wall Mounting Kits Included

Wireless Features

• Wireless Standards: IEEE 802.11be/ax/ac/n/g/b/a
• Frequency: 2.4GHz, 5.0GHz and 6.0GHz
• Signal Rate:
• 6.0GHz: up to 1,1520Mbps
• 5.0GHz: up to 5,760Mbps
• 2.4GHz: up to 1,376Mbps
• Multi-Link Operation (MLO): Yes
• 4K-QAM: Yes
• 320MHz Channel Support: Yes
• OFDMA: Yes
• MU-MIMO: Yes
• Multi-RU: Yes
• Preamble Puncturing: Yes
• SSIDs: up to 16× SSIDs (8× per Band)
• Seamless Roaming: Yes
• Omada Mesh: Yes
• Band Steering: Yes
• Load Balance: Yes
• Airtime Fairness: Yes
• Beamforming: Yes
• QoS (WMM): Yes
• Rate Limit: Yes
• Reboot Schedule: Yes
• Wireless Schedule: Yes
• Wireless Statistics: Based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE: ≤20dBm (2.4GHz), ≤23dBm (5.0GHz), ≤23dBm (6.0GHz)
• FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz), ≤25dBm (6.0GHz)

Management

• Omada App: Yes
• Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Cloud Access: Yes
• Email Alerts: Yes
• LED On/Off Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1/v2c/v3
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-Based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-Site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)

Certification

• CE
• FCC
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)
