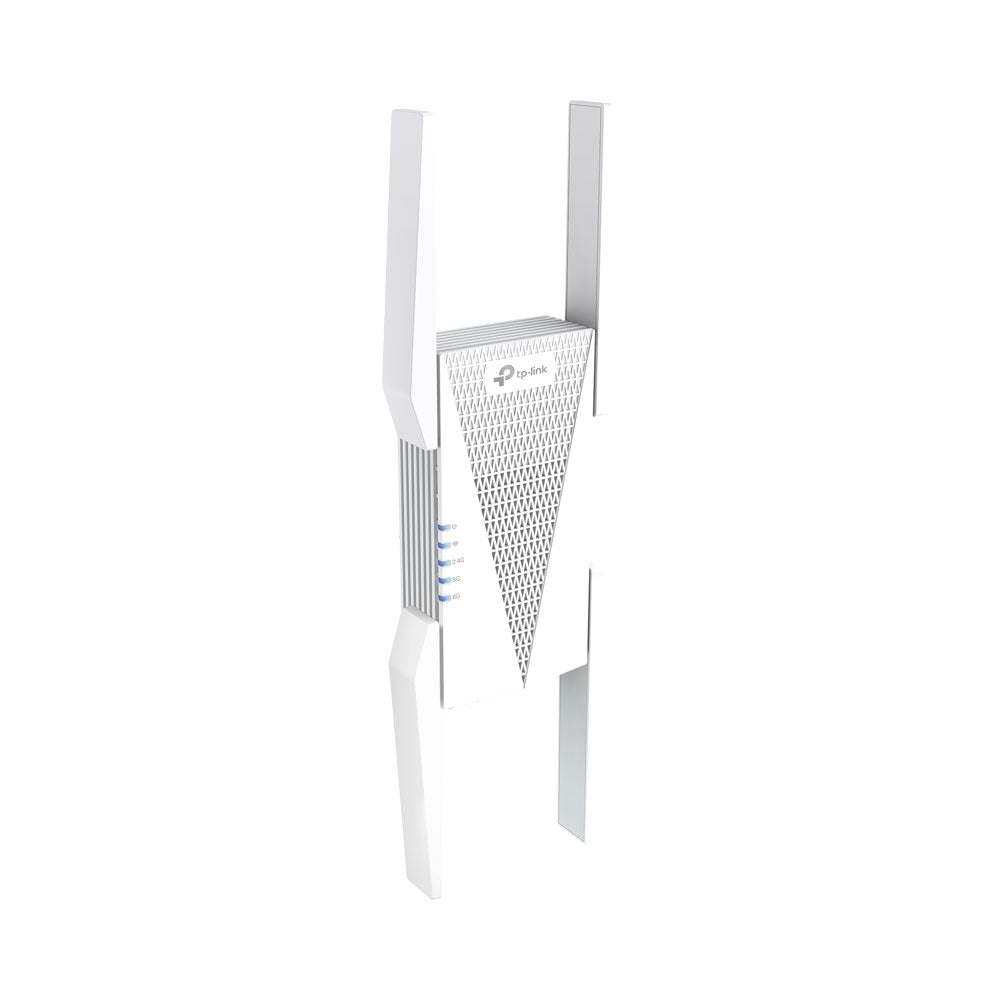

TP-LINK AXE5400 TRI-BAND WIFI 6E RANGE EXTENDER

Features

• Creates a Mesh Network - By connecting to a TP-Link OneMesh router for seamless whole-home coverage
• Gigabit Ethernet Port - Provides faster-wired connections to smart TVs, computers and gaming consoles
• Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength • in the current placement
• AP Mode - Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
• Ultimate Compatibility - Extends the range of any Wi-Fi router or wireless access point

Specifications

Working Modes

• Range Extender
• Access Point

Ports

• 1× Gigabit Ethernet Port

Button

• WPS Button
• Reset Button

Input Power

• 100~240V 50/60Hz

Power Consumption

• 23W

Dimensions (W × D × H)

• 106.6 × 39.7 × 348.2mm

Antenna

• 4× External Antennas

Wireless Standards

• IEEE 802.11ax (6.0GHz)
• IEEE 802.11a/n/ac/ax (5.0GHz)
• IEEE 802.11b/g/n/ax (2.4GHz)

Frequency

• 2.4GHz
• 5.0GHz
• 6.0GHz

Signal Rate

• up to 574Mbps (2.4GHz)
• up to 2,402Mbps (5.0GHz)
• up to 2,402Mbps (6.0GHz)

Reception Sensitivity

6.0GHz

• 11ax HE20 MCS0: -92dBm
• 11ax HE20 MCS11: -61dBm
• 11ax HE40 MCS0: -89dBm
• 11ax HE40 MCS11: -58dBm
• 11ax HE80 MCS0: -86dBm
• 11ax HE80 MCS11: -55dBm
• 11ax HE160 MCS0: -83dBm
• 11ax HE160 MCS11: -52dBm

5.0GHz

• 11ax HE20 MCS0: -93dBm
• 11ax HE20 MCS11: -62dBm
• 11ax HE40 MCS0: -90dBm
• 11ax HE40 MCS11: -59dBm
• 11ax HE80 MCS0: -87dBm
• 11ax HE80 MCS11: -56dBm
• 11ax HE160 MCS0: -84dBm
• 11ax HE160 MCS11: -53dBm

2.4GHz

• 11ax HE20 MCS0: -95dBm
• 11ax HE20 MCS11: -64dBm
• 11ax HE40 MCS0: -92dBm
• 11ax HE40 MCS11: -62dBm

Wireless Functions

• LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage

Wireless Security

• 64/128-bit WEP
• WPA/WPA-PSK/WPA2-PSK
• WPA3

Transmission Power

• FCC: <30dBm (2.4GHz)
• FCC: <30dBm (5.0GHz)
• FCC: <30dBm (6.0GHz)

Mesh Technology

• EasyMesh Compatible

Certifications

• FCC
• RoHS

Package Contents

• Wi-Fi Range Extender RE815XE
• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10
• macOS
• NetWare
• UNIX
• Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing

Shipping Dimensions

• Length: 20.35 cm
• Width: 14 cm
• Height: 11.9 cm
• Weight: 0.64 kg
