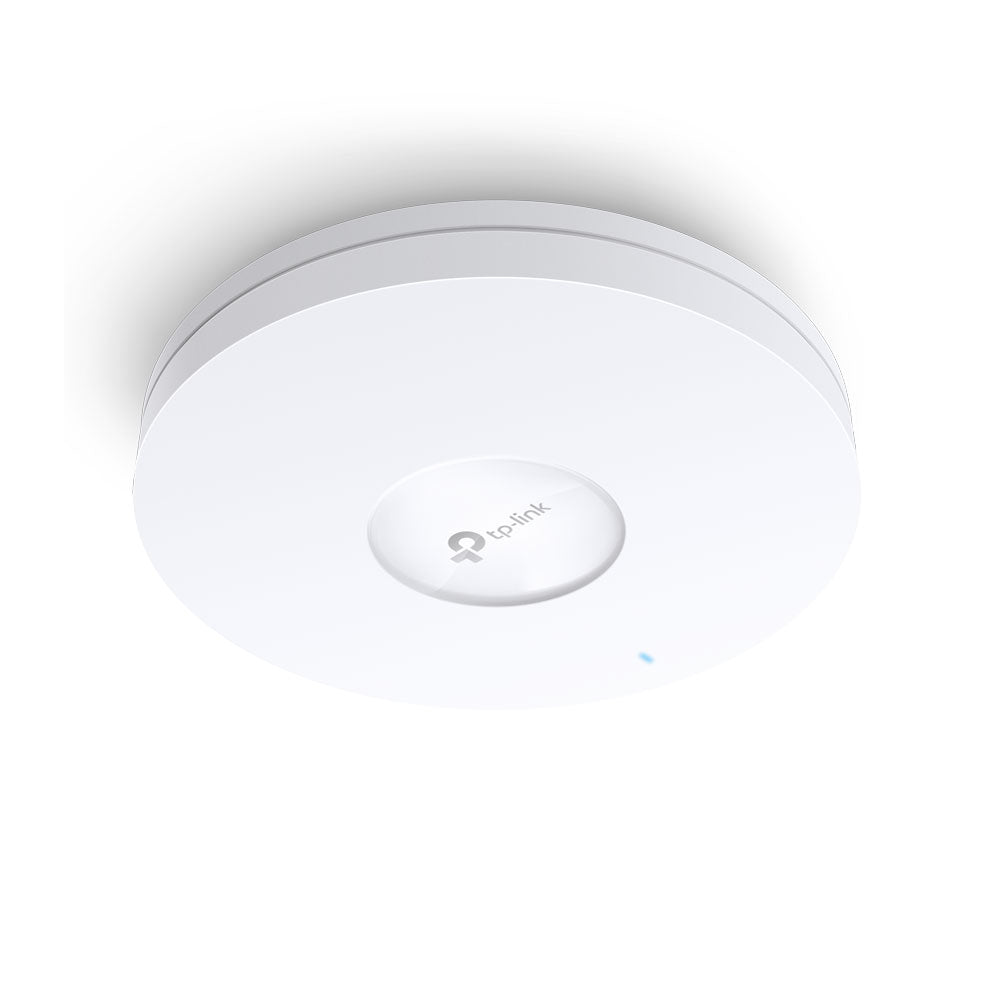

TP-LINK AX5400 CEILING MOUNT WIFI 6 ACCESS

Features

• Blazing-Fast Wi-Fi 6 Speeds: Simultaneous 574Mbps on 2.4GHz and 4804Mbps on 5GHz totals 5378Mbps Wi-Fi speeds
• High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds
• Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
• 160MHz Channel: Double the data at peak transmission times on a single stream with HE160
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations

Specifications

Hardware Features

• Interface: 1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Button: Reset
• Power Supply: 802.3at PoE, 12 V / 1.5 A DC (Power Adapter included)
• Power Consumption: EU: 18.1 W
• Dimensions ( W x D x H ): 243 x 243 x 64mm
• Antenna Type: Internal Omni, 2.4GHz: 2x 4dBi, 5GHz: 4x 5dBi

Wireless Features

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 5GHz: Up to 4804Mbps, 2.4GHz: Up to 574Mbp
• Wireless Functions: 1024-QAM, 4x Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule,Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: CE: <20 dBm (2.4GHz, EIRP), <23 dBm (5GHz, band1 & band2, EIRP), <30 dBm (5GHz, band3, EIRP), FCC: <25 dBm (2.4GHz), <28 dBm (5GHz)

Management

• Omada App: Yes
• Centralised Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

Others

• Certification: CE, FCC, RoHS
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment: Operating Temperature: 0–40°C
• Storage Temperature: -40–70°C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Shipping Dimensions

• Length: 30.4 cm
• Width: 30.2 cm
• Height: 8.2 cm
• Weight: 1.34 kg
