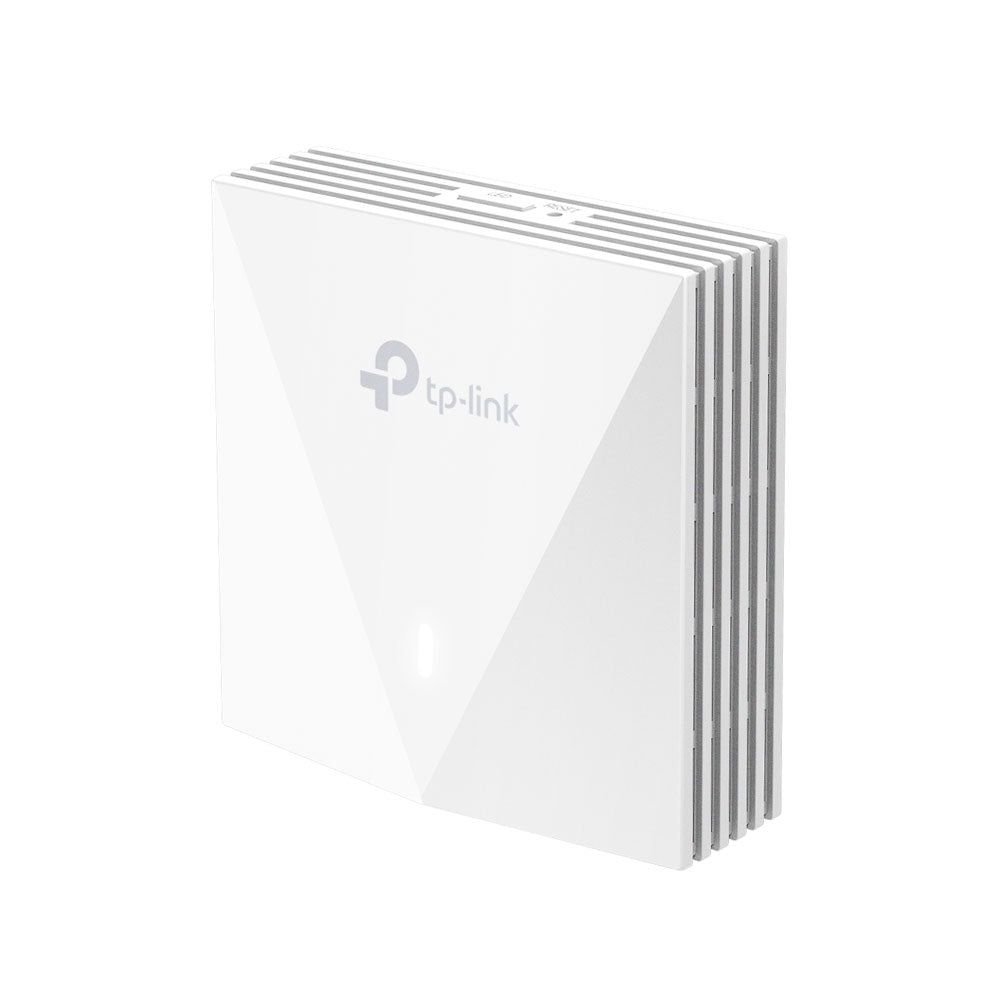

TP-LINK AX3000 WALL PLATE WI-FI6 ACCESS POINT

Features

• Blazing-Fast AX3000 Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 2,402Mbps on 5.0GHz totals 2,976Mbps Wi-Fi speeds
• Higher Network Efficiency - Deliver data to more devices at the same time with less lag
• Complete In-Room Wi-Fi Coverage - Guaranteed strong signals and corner-to-corner Wi-Fi coverage
• Gigabit Port - Connect wired devices with one downlink gigabit port
• Centralised Cloud Management - Integrates into Omada SDN for cloud access and remote management
• Secure Guest Network - Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies
• Easy Installation and PoE Support - Easy-to-install design, compatible with 86mm and EU standard junction box and 802.3af/at PoE support

Specifications

Hardware Features

• Interface:
• 1× Gigabit Uplink Port
• 3× 10/100/1000Mbps Downlink Ports (1× PoE Out Supported)
• Physical Security Lock: Yes
• Button: Reset
• Power Supply: 802.3af/802.3at PoE
• Power Consumption: 12.5W (Without PoE Out)
• Dimensions: 143 × 86 × 20mm
• Antennas: Internal Dual-Band Antennas
• 2.4GHz: 2× 4dBi
• 5.0GHz: 2× 5dBi
• Mounting: Wall-Plate Mounting

Wireless Features

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4GHz and 5.0GHz
• Signal Rate:
• 5.0GHz: up to 2402Mbps
• 2.4GHz: up to 574Mbps
• 1024-QAM: Yes
• OFDMA: Yes
• MU-MIMO: Yes
• HE160: Yes
• SSIDs: up to 16× SSIDs (8× per Band)
• Seamless Roaming: Yes
• Omada Mesh: Yes
• Band Steering: Yes
• Load Balance: Yes
• Airtime Fairness: Yes
• Beamforming: Yes
• QoS (WMM): Yes
• Rate Limit: Yes
• Reboot Schedule and Wireless Schedule: Yes
• Wireless Statistics: Based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN Port-Based VLAN
• Rogue AP Detection
• 802.1X Support
• Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
• FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz)

Management

• Omada App: Yes
• Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
• Email Alerts: Yes
• LED On/Off Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-Based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-Site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)

Certification

• CE
• FCC
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)
