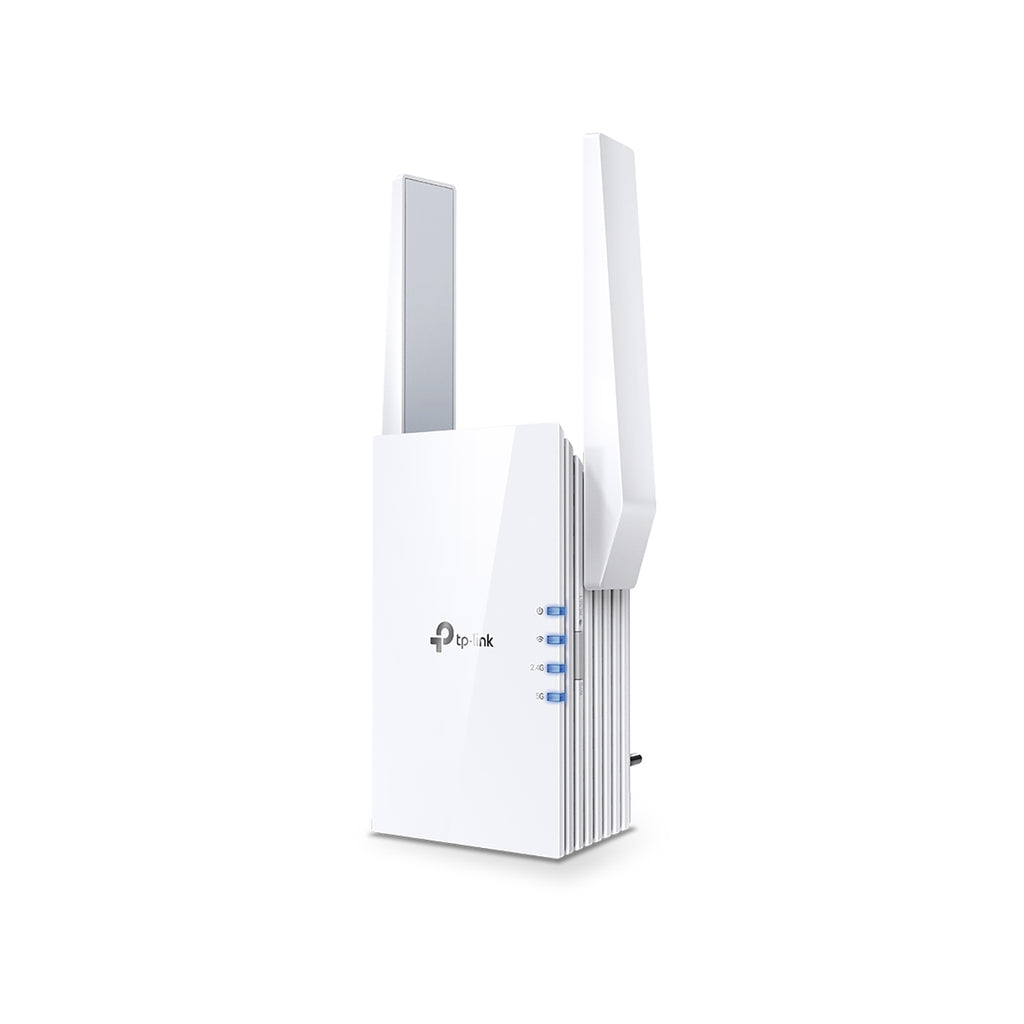

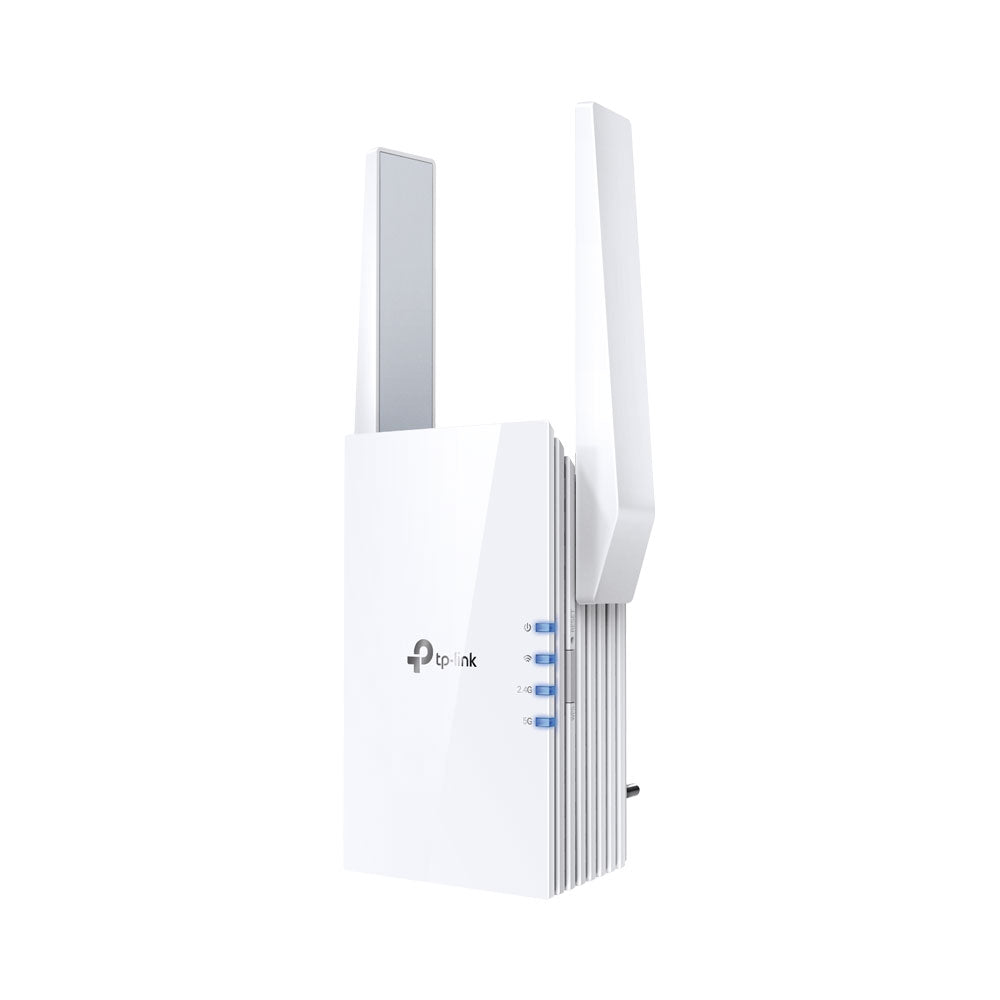

TP-LINK AX1800 Wi-Fi 6 RANGE EXTENDER

Features

• Creates a Mesh Network - By connecting to a TP-Link OneMesh router for seamless whole-home coverage
• Gigabit Ethernet Port - Provides faster-wired connections to smart TVs, computers and gaming consoles
• Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength • in the current placement
• AP Mode - Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
• Ultimate Compatibility - Extends the range of any Wi-Fi router or wireless access point

Specifications

Working Modes

• Range Extender
• Access Point

Ports

• 1× Gigabit Ethernet Port

Button

• WPS Button
• Reset Button

Input Power

• 100~240V 50/60Hz

Power Consumption

• 10W

Dimensions (W × D × H)

• 74 × 46 × 124.8mm

Antenna

• 2× External Antennas

Wireless Standards

• IEEE 802.11a/n/ac/ax (5.0GHz)
• IEEE 802.11b/g/n (2.4GHz)

Frequency

• 2.4GHz
• 5.0GHz

Signal Rate

• 574Mbps (2.4GHz)
• 1,201Mbps (5.0GHz)

Reception Sensitivity

5.0GHz

• 11a 6Mbps: -93dBm
• 11a 54Mbps: -75dBm
• 11ac HT20 MCS0: -92dBm
• 11ac HT20 MCS8: -70dBm
• 11ac HT40 MCS0: -90dBm
• 11ac HT40 MCS9: -66dBm
• 11ac HT80 MCS0: -87dBm
• 11ac HT80 MCS9: -62dBm

2.4GHz

• 11g 54Mbps: -77dBm
• 11n HT20 MCS7: -75dBm
• 11n HT40 MCS7: -72dBm

Wireless Functions

• Enable / Disable Wireless Radio
• Wireless Statistics

Wireless Security

• 64/128-bit WEP
• WPA/WPA2-PSK Encryption

Transmission Power

• CE: 2.4GHz ≤20dBm
• CE: 5.0GHz ≤30dBm

Mesh Technology

• OneMesh

Certifications

• CE
• RoHS

System Requirements

• Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10
• Mac OS
• NetWare
• UNIX
• Linux
• Internet Explorer 11
• Firefox 12.0
• Chrome 20.0
• Safari 4.0 or Other Java-Enabled Browser

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing

Shipping Dimensions

• Length: 20.2 cm
• Width: 12.5 cm
• Height: 9.7 cm
• Weight: 0.48 kg
