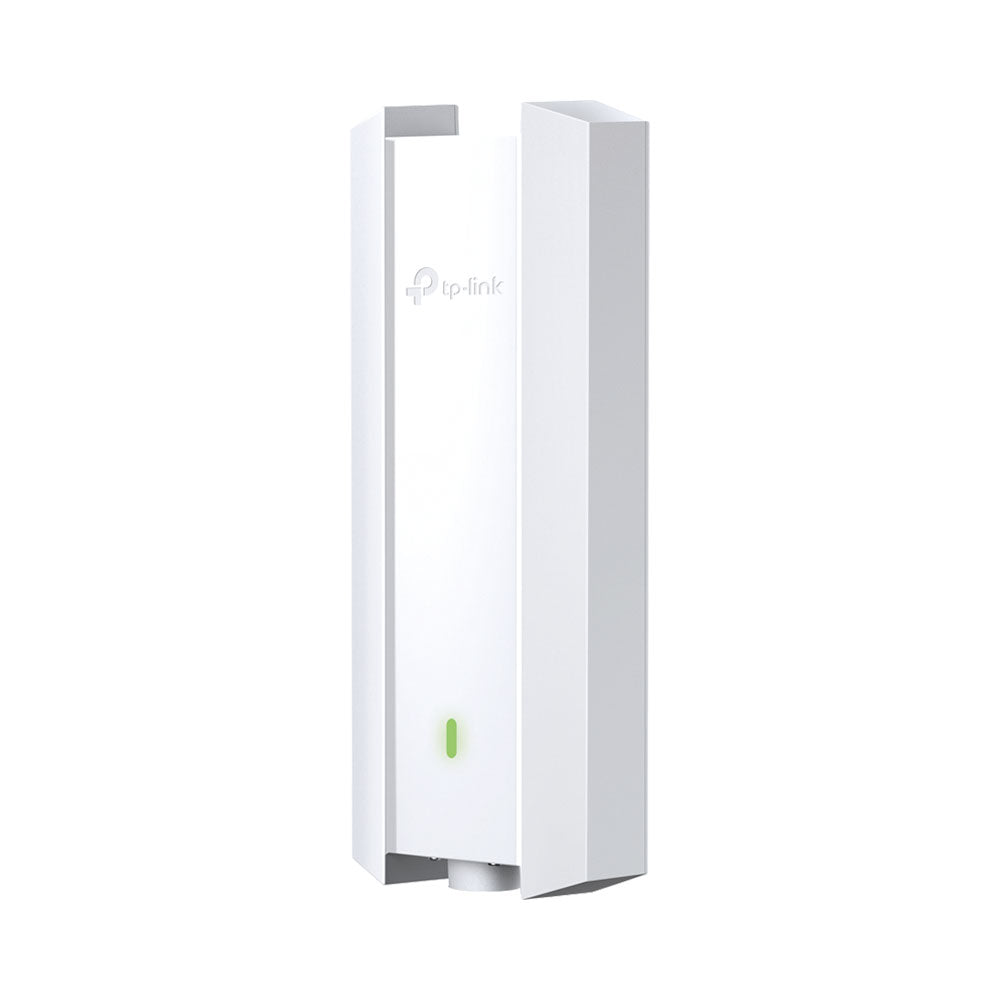

TP-LINK AX1800 INDOOR/OUTDOOR WIFI 6 ACCESS POINT

Features

• Superior Wi-Fi 6 Speeds: Delivers dual-band speeds of up to 1.8Gbps powered by the latest Wi-Fi 6 technology
• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
• Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
• Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

Hardware Features

• Interface: 1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
• Button: Reset
• Power Supply: 802.3at PoE, 48V/0.5A Passive PoE (PoE Adapter Included)
• Power Consumption: EU: 12.5W (802.3at PoE or Passive PoE)
• Dimensions ( W x D x H ): 280.4 x 106.5 x 56.8mm (Without antenna & mounting kit)
• Antenna: 2.4GHz: 2x 4 dBi, 5.0GHz: 2x 5 dBi
• Weatherproof Enclosure: IP67
• Mounting: Pole/Wall Mounting (Kits included)

Wireless Features

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4GHz, 5.0GHz
• Signal Rate: 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80), 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80), 802.11n: 6.5 Mbps to 300Mbps (MCS0-MCS15, VHT 20/40), 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps, 802.11b: 1, 2, 5.5, 11Mbps, 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
• Transmit Power: CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP), FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
• Wireless Functions: 1024-QAM, 4x Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO, Omada Mesh, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Management

• Omada App: Yes
• Centralised Management: Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0), Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Cloud Access: Yes, through Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0), OC300, OC200, Omada Software Controller
• Email Alerts: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c
• System Logging Local/Remote Syslog: Yes
• SSH: Yes
• Web-based Management: Yes
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)

Others

• Certification: CE, FCC, RoHS

Shipping Dimensions

• Length: 32.5 cm
• Width: 24.1 cm
• Height: 6.7 cm
• Weight: 1.53 kg
