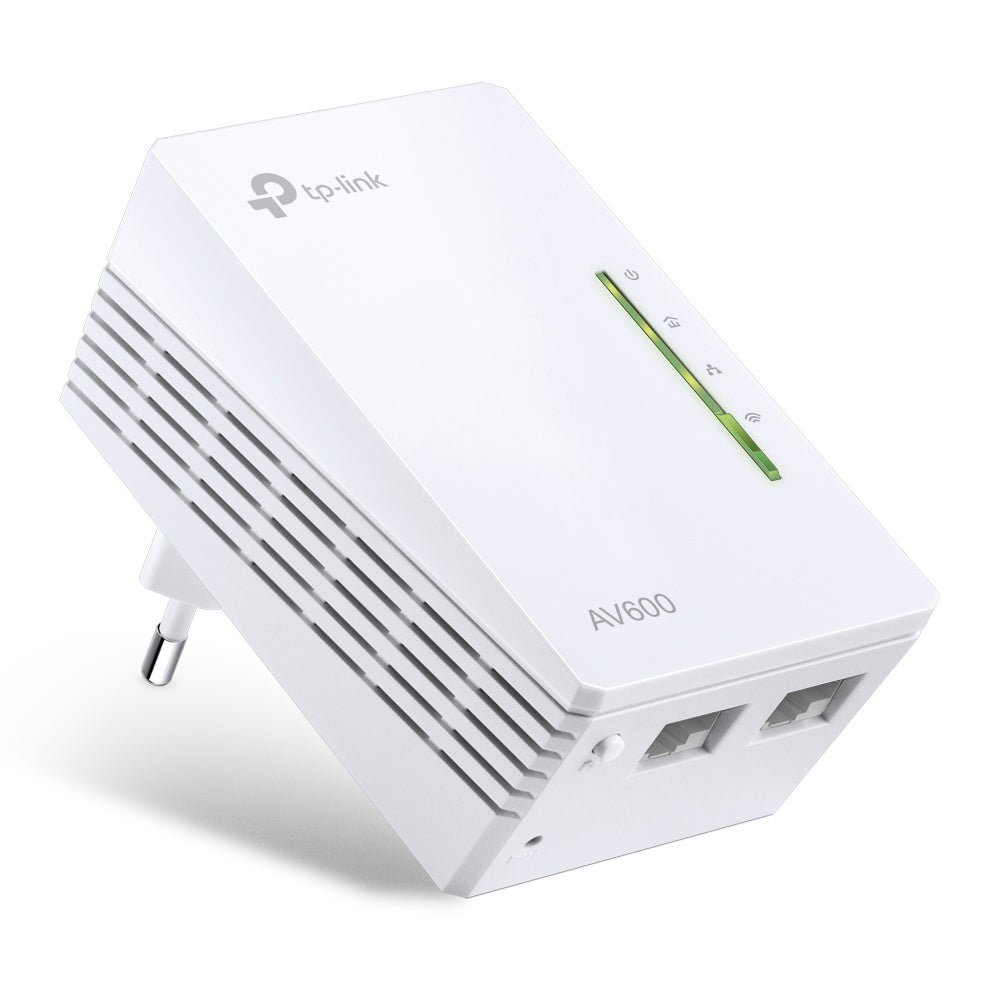

TP-LINK AV600 PLINE UNIV 1X FE WIFI RANGE EXT

Features

• Extend wired and wireless network to any room using your home's existing electrical system
• One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
• HomePlug AV standard providing up to 600Mbps¹ high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
• Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

Hardware Features

• Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
• Interface: 2x 10/100Mbps Ethernet Port
• ButtonPair, Reset, Wi-Fi/Wi-Fi Clone
• Power ConsumptionMaximum: 5.308W (220V/50Hz)
• Typical: 5.086W (220V/50Hz)
• Standby: 4.170W (220V/50Hz)
• LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
• Dimensions ( W x D x H ): 94 × 54 × 40mm
• Range: 300 Meters over electrical circuit

Wireless Features

• Frequency: 2.4-2.4835GHz
• Signal Rate:
• 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity:
• 270M: -68dBm@10% PER
• 130M: -68dBm@10% PER
• 108M: -68dBm@10% PER
• 54M: -68dBm@10% PER
• 11M: -85dBm@8% PER
• 6M: -88dBm@10% PER
• 1M: -90dBm@8% PER
• Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
• Advanced Functions: Enable/DisableWireless Radio,WMM, Wireless Statistics
• Transmission Power: CE <20dBm (2.4GHz), FCC <30dBm

Software Features

• Modulation Technology: OFDM (PLC)
• Encryption: Powerline Security:
• 128-bit AES
• Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

Others

• Certification: CE, RoHS
• System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux, Windows 10

Shipping Dimensions

• Length: 19 cm
• Width: 13.6 cm
• Height: 10 cm
• Weight: 0.32 kg
