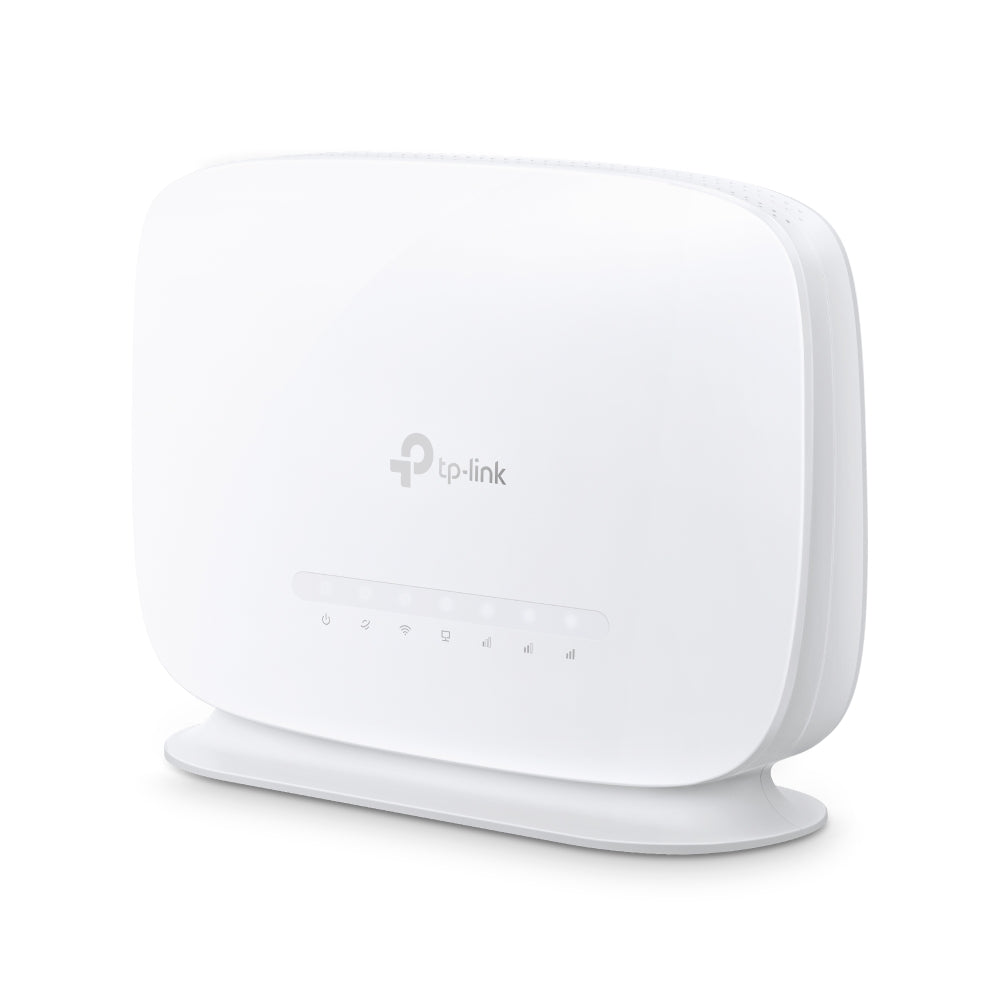

TP-LINK ARCHER MR505 4G+ CAT6 AC1200 WIRELESS DUAL-BAND GIGABIT ROUTER

Features

• 4G+ CAT6 Mobile Broadband - up to 300Mbps LTE speeds via SIM card for flexible internet access anywhere
• AC1200 Dual-Band Wi-Fi - up to 300Mbps (2.4GHz) + 867Mbps (5.0GHz) for smooth streaming and browsing
• MU-MIMO Technology - Efficient multi-device performance with reduced congestion and improved throughput
• EasyMesh Compatible - Seamless whole-home Wi-Fi coverage with unified roaming and no dead zones
• Gigabit Connectivity - Three Gigabit ports for fast, reliable wired network performance
• Flexible WAN/LAN Port - Supports fibre, DSL or cable with 4G failover backup for uninterrupted connectivity
• Wide Coverage with Beamforming - Focused signal strength for improved stability and range across your home
• Supports up to 64× Devices - Stable connections for multiple users, smart devices and streaming applications
• Advanced Security with WPA3 - Enhanced wireless encryption and network protection
• Easy Setup and Management - Quick configuration via web UI or TP-Link Tether app

Specifications

• 4G+ CAT6 Mobile Broadband: up to 300Mbps Download Speed
• AC1200 Dual-Band Wi-Fi: up to 300Mbps (2.4GHz) + 867Mbps (5.0GHz)
• MU-MIMO: Supported
• Beamforming: Supported
• Max. Devices: up to 64× Devices
• Wireless Standards: IEEE 802.11a/n/ac (5.0GHz), IEEE 802.11b/g/n (2.4GHz)
• Frequency: 2.4GHz, 5.0GHz
• Signal Rate: 2.4GHz up to 300Mbps, 5.0GHz: up to 867Mbps
• Dual Band: Simultaneous
• 4G LTE Standard: CAT6 (Carrier Aggregation)
• Download Speed: up to 300Mbps
• Upload Speed: up to 50Mbps
• Compatibility: 4G / 3G Networks
• SIM Slot: Nano SIM
• Ports: 1× Gigabit WAN/LAN, 2× Gigabit LAN
• Antennas: Internal LTE Antennas, Internal Wi-Fi Antennas, External LTE Antenna Ports
• Buttons: WPS / Reset
• Power Supply: External Power Adapter
• Operating Modes: 4G/3G Router Mode, Wireless Router Mode (WAN Backup)
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• DHCP: Server, Client List, Address Reservation
• QoS: Bandwidth Control
• Port Forwarding: Virtual Server, Port Triggering, DMZ, UPnP
• Dynamic DNS: TP-Link, DynDNS, NO-IP
• Wireless Security: WPA/WPA2/WPA3
• Firewall: SPI Firewall
• Access Control: IP and MAC Filtering
• Guest Network: 2.4GHz and 5.0GHz Guest Access
• Parental Controls: Supported
• App: TP-Link Tether (iOS and Android)
• Web Interface: Supported
• Cloud Management: Supported
• Firmware Upgrade: Online Update Support
• Dimensions (W × D × H): 212 × 157.5 × 57mm

Shipping Dimensions

• Length: 30.7 cm
• Width: 22.3 cm
• Height: 7 cm
• Weight: 0.78 kg
