| SECURITY |
| Network Security |
SPI Firewall |
| Access Control |
| IP & MAC Binding |
| Application Layer Gateway |
| Guest Network |
1× 5.0GHz Guest Network |
| 1× 2.4GHz Guest Network |
| VPN Server |
OpenVPN |
| PPTP |
| Wi-Fi Encryption |
WEP |
| WPA |
| WPA2 |
| WPA/WPA2-Enterprise (802.1x) |
| WIRELESS |
| Standards |
Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5.0GHz |
| IEEE 802.11n/b/g 2.4GHz |
| Wi-Fi Speeds |
AX1500 |
| 5.0GHz: 1201Mbps (802.11ax) |
| 2.4GHz: 300Mbps (802.11n) |
| Wi-Fi Range |
3 Bedroom Houses |
| |
| 4× Fixed High-Performance Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas. |
| |
| Beamforming |
| Concentrates wireless signal strength towards clients to expand Wi-Fi range |
| Wi-Fi Capacity |
Dual-Band |
| Allocate devices to different bands for optimal performance |
| |
| OFDMA |
| Simultaneously communicates with multiple Wi-Fi 6 clients. |
| |
| Airtime Fairness |
| Improves network efficiency by limiting excessive occupation |
| |
| 4 Streams |
| Connect your devices to more bandwidth |
| Working Modes |
Router Mode |
| Access Point Mode |
| HARDWARE |
| Processor |
1.5.0GHz Triple-Core CPU |
| Ethernet Ports |
1× Gigabit WAN Port |
| 4× Gigabit LAN Ports |
| Buttons |
WPS/Wi-Fi Button |
| Power On/Off Button |
| LED On/Off Button |
| Reset Button |
| Power |
12V 1A |
| SOFTWARE |
| Protocols |
IPv4 |
| IPv6 |
| Parental Controls |
URL Filtering |
| Time Controls |
| WAN Types |
Dynamic IP |
| Static IP |
| PPPoE |
| PPTP |
| L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade |
| OTA Firmware Upgrade |
| TP-Link ID |
| DDNS |
| NAT Forwarding |
Port Forwarding |
| Port Triggering |
| DMZ |
| UPnP |
| IPTV |
IGMP Proxy |
| IGMP Snooping |
| Bridge |
| Tag VLAN |
| DHCP |
Address Reservation |
| DHCP Client List |
| Server |
| DDNS |
TP-Link |
| NO-IP |
| DynDNS |
| Management |
Tether App |
| Webpage |
| OTHER |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser |
| |
| Cable or DSL Modem (if needed) |
| |
| Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~°C |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| Wi-Fi Transmission Power |
CE: |
| <20dBm (2.4GHz) |
| <23dBm (5.15.0GHz~5.25.0GHz) |
| FCC: |
| <30dBm (2.4GHz & 5.15.0GHz~5.825.0GHz) |
| Wi-Fi Reception Sensitivity |
5.0GHz: |
| 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm |
| 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm |
| 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm |
| 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm |
| 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm |
| 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm |
| 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm |
| 2.4GHz: |
| 11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm |
| 11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm |
| 11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm |
| PHYSICAL |
| Dimensions (W × D × H) |
260.2 × 135.0 × 38.6mm |
| Package Contents |

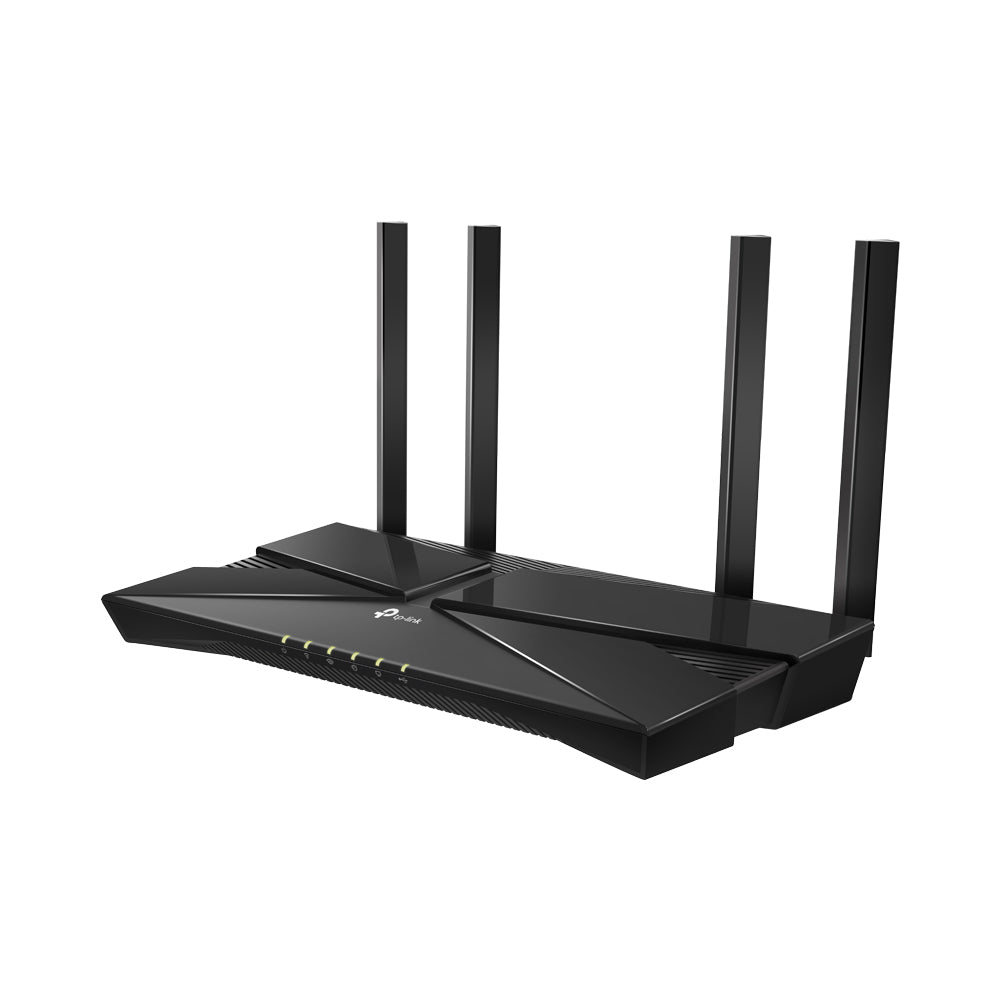

Wi-Fi Router Archer AX1500 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
